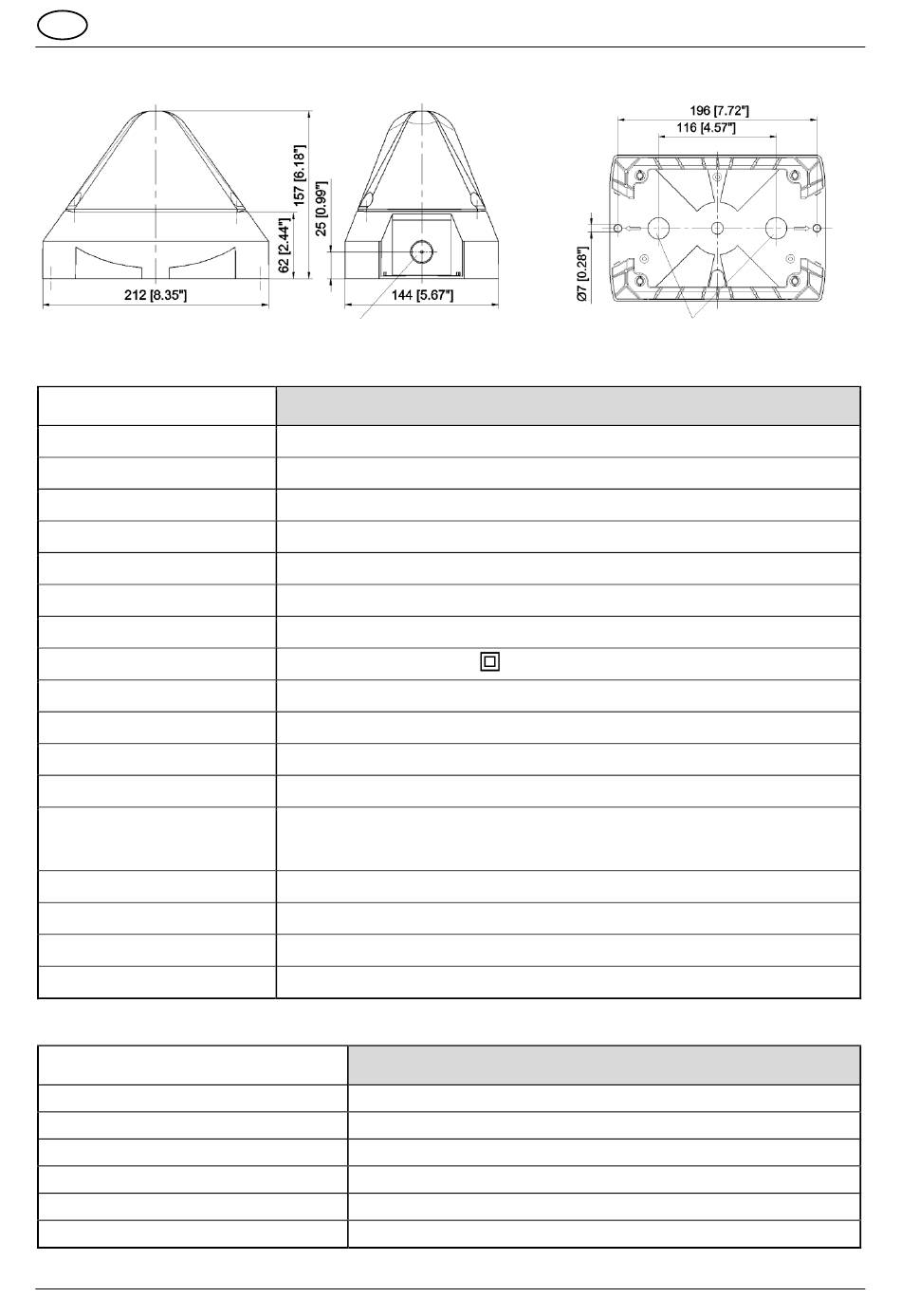

Dimensions

M20 cutout prepared (both sides)

4.1 Technical data

Flash energy
Light intensity
Flash frequency
Duty cycle
Connecting terminals
Ingress protection
Impact strength
Protection class
Operating temperature
Storage temperature
Max. rel. air humidity
Cable inlet
Sealing range of the
feed-through grommet
Housing material
Lens colors
Installation position
Lens colors

4.2 Electrical data

Rated voltage
Voltage range
Current consumption (nom.) (1 Hz)
Current consumption max.
Starting current
Power consumption
05/2022
0,14 - 2,5mm² fine stranded / AWG24 - AWG 14 stranded
II
A cable gland with a sufficient degree of protection must be provided when
cable diameters of < 7 mm are used.
transparent, white, yellow, amber, red, green, blue
(1 Hz)
Operating instructions
PY X-L-15-CPR
15 J
190 cd (clear)
0.1 / 0.5 / 0.75 / 1 Hz
100%
IP 66 (EN 60529), Type 4 & 4x
IK 08 (EN50102)
Double insulated equipment
-40°C...+55°C
-40°C...+70°C
90%
4x M20 pre-embossed
7 – 13 mm
PC/ ABS Blend
PC
any
PY X-L-15-CPR
24 V DC (+/- 20%)
19.2 – 28.8 V DC
700 mA
890 mA
< 500 mA
17 W
