General
3.2

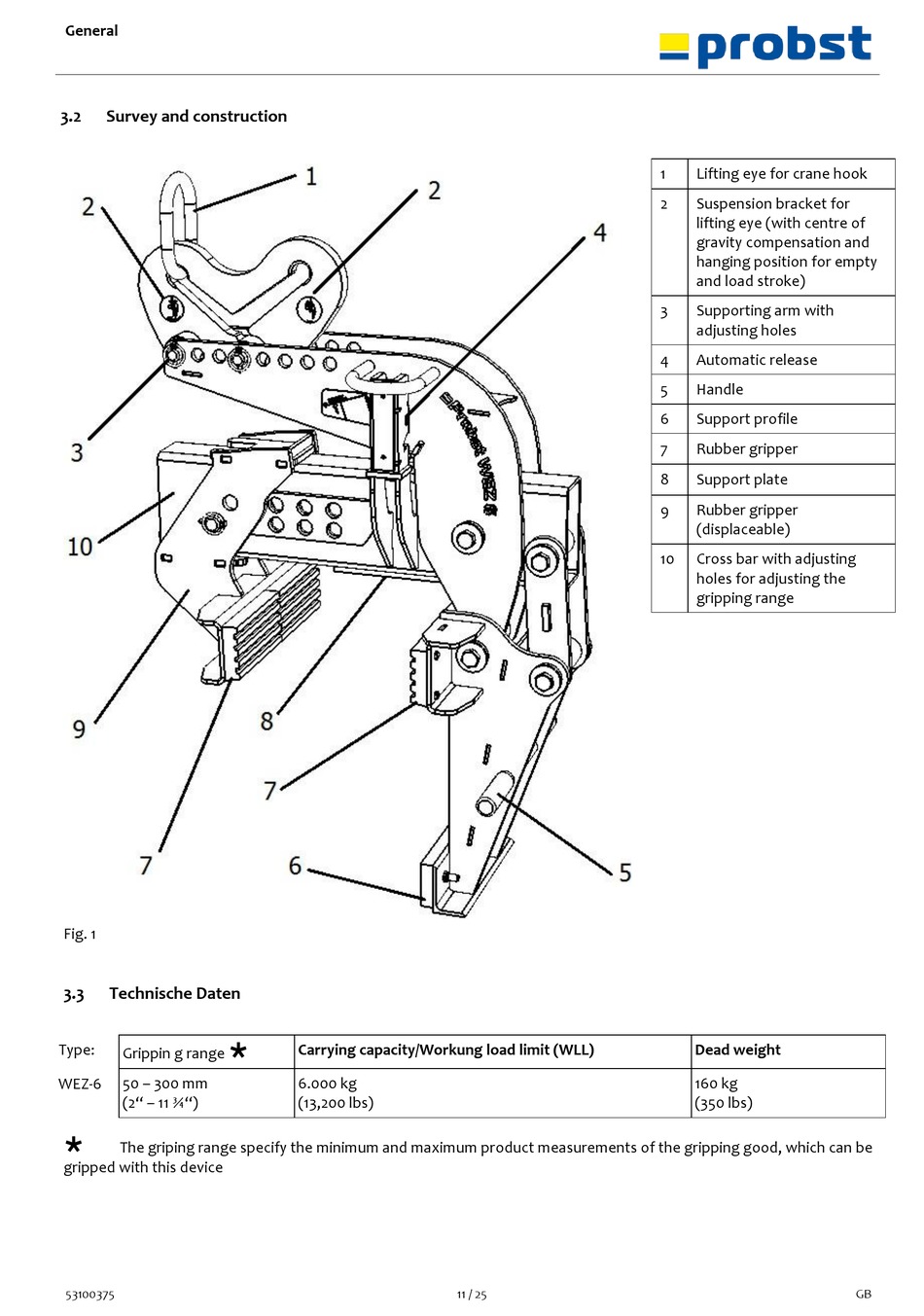

Survey and construction

Fig. 1
3.3

Technische Daten


Type:
Grippin g range
WEZ-6 50 – 300 mm
(2" – 11 ¾")

The griping range specify the minimum and maximum product measurements of the gripping good, which can be
gripped with this device
53100375
Carrying capacity/Workung load limit (WLL)
6.000 kg
(13,200 lbs)
11 / 25
1 Lifting eye for crane hook
2 Suspension bracket for
lifting eye (with centre of
gravity compensation and
hanging position for empty
and load stroke)
3 Supporting arm with
adjusting holes
4 Automatic release
5 Handle
6 Support profile
7 Rubber gripper
8 Support plate
9 Rubber gripper
(displaceable)
10 Cross bar with adjusting
holes for adjusting the
gripping range
Dead weight
160 kg
(350 lbs)
