Operation
•

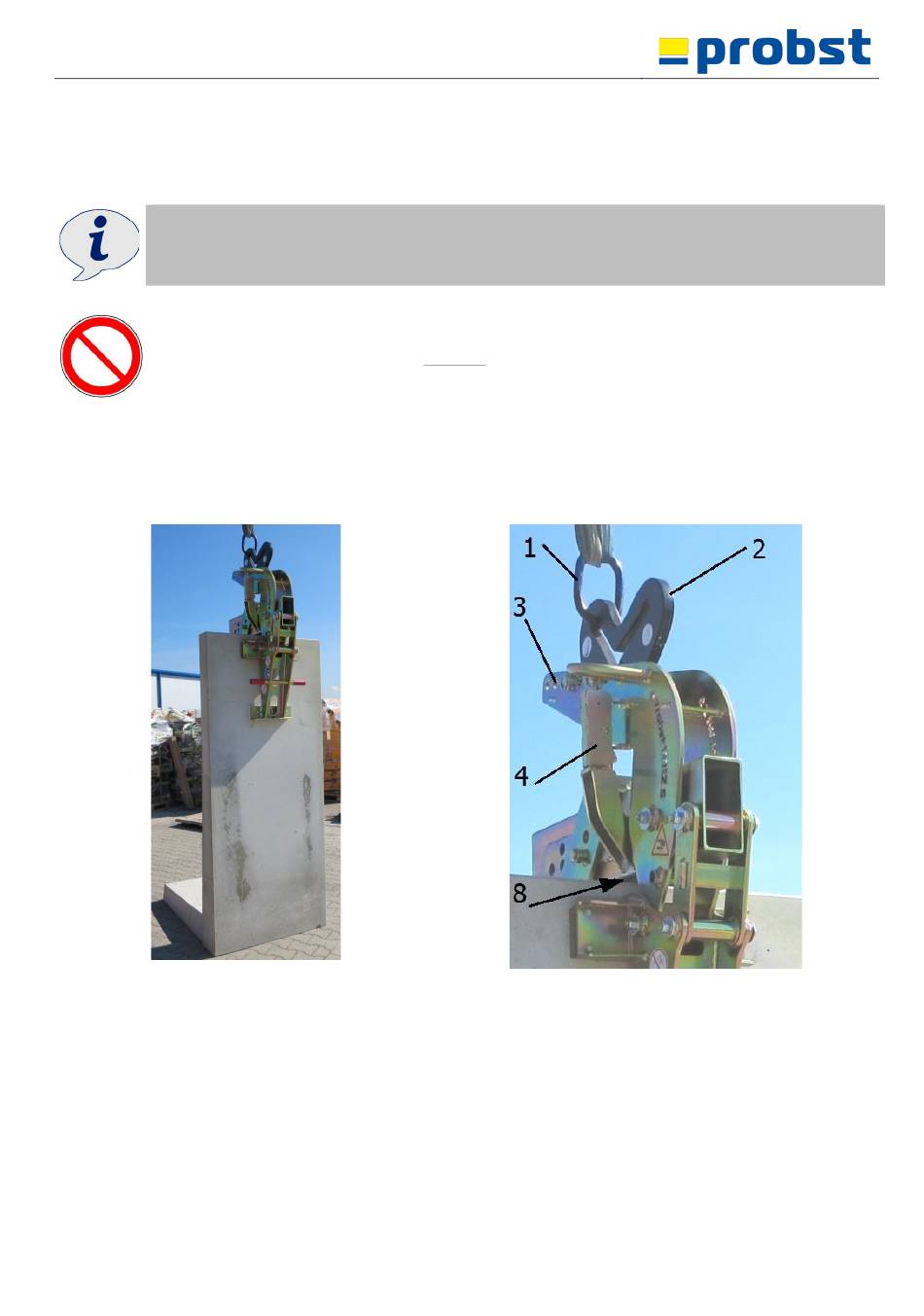

The device is hanging a little angular (incline). Move with the support profile against the outer surface of
the long blade (of the L-stone) and set the device (WEZ) down centric. → see Fig. C
•
When lifting the first gripping good (L-stone) check, if the gripping good is hanging vertical (or rather
maximum 10° diagonally) and that the support plate (8) rests complete on the gripping good (L-stone)→
Fig. D
•
IMPORTANT: During the gripping process and the following lifting and transporting/ moving of the
gripping good (L-stone), the suspension eye (1) must be in the front position (figure E+E2 "load stroke")
of the suspension (2) (→ figure D).
•
According to the position, the suspension bracket (2) must be moved in another position.
Therefore, remove the two socket pins (B), move the suspension bracket (2) to another position at the
supporting arm (3) and insert the two socket pins (B) again.
So that the device is hanging almost vertically in any case of when lifting and transportation.
•
While lifting, the gripping good (L-stone) should not hang diagonally (more than 10°). Otherwise, the
gripping good (L-stone) could fall down (→ Danger to life!) and the device is irregular loaded (→ risk of
fracture!)
•
Set the gripping good down on the ground, the device (WEZ) opens automatically, the automatic release
locks it into position so that the device can be lifted without closing up.
Placed the device over the next gripping good, the automatic release disengages itself and the gripping
good can be lifted, if the supporting arm (3) is moved down completely.
53100375
Fig. C
18 / 25
Fig. D
