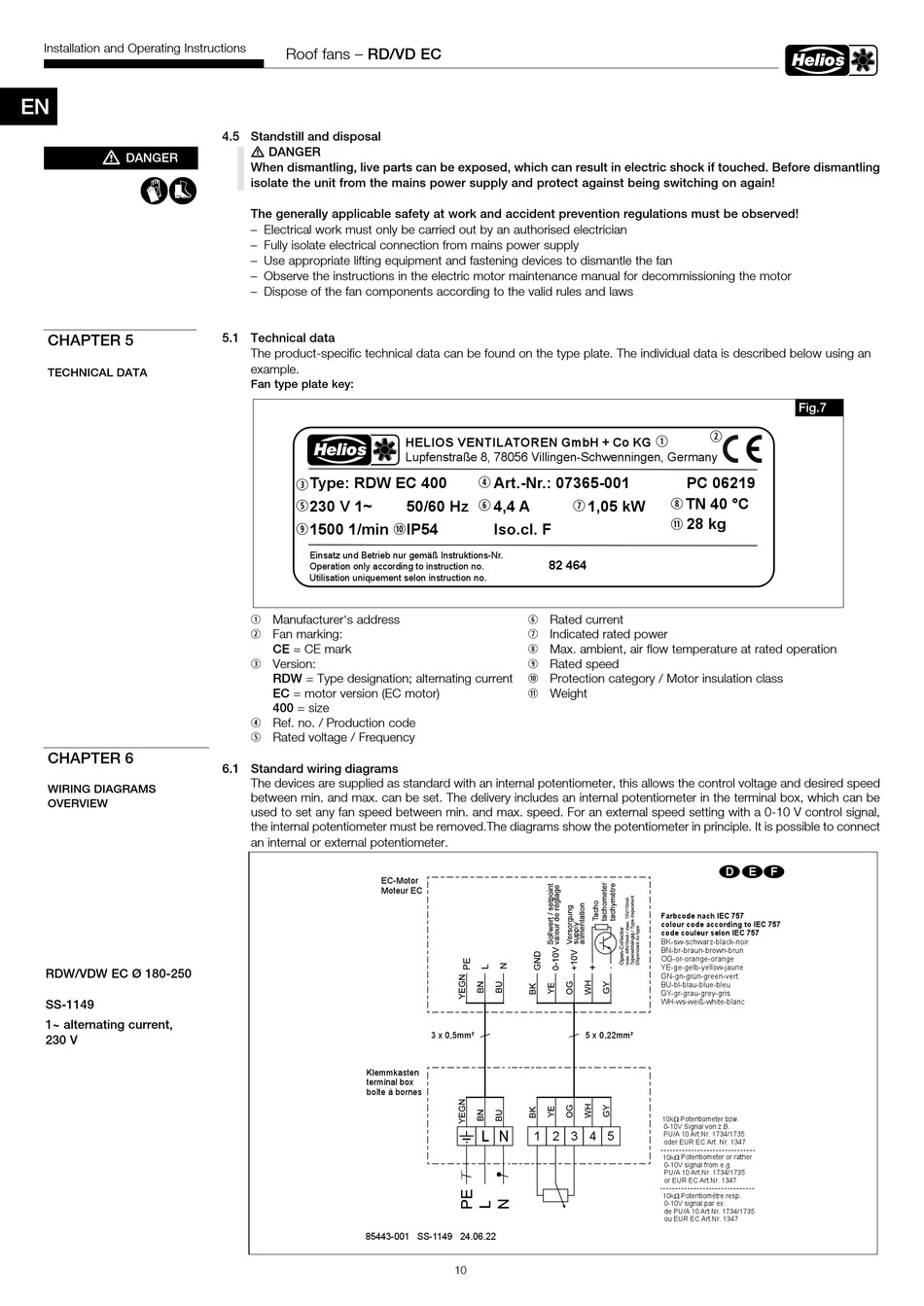

Roof fans – RD/VD EC
4�5 Standstill and disposal
m
DANGER
When dismantling, live parts can be exposed, which can result in electric shock if touched� Before dismantling
isolate the unit from the mains power supply and protect against being switching on again!
The generally applicable safety at work and accident prevention regulations must be observed!
– Electrical work must only be carried out by an authorised electrician
– Fully isolate electrical connection from mains power supply
– Use appropriate lifting equipment and fastening devices to dismantle the fan
– Observe the instructions in the electric motor maintenance manual for decommissioning the motor
– Dispose of the fan components according to the valid rules and laws
5�1 Technical data
The product-specific technical data can be found on the type plate. The individual data is described below using an
example.
Fan type plate key:
Type: RDW EC 400
e
230 V 1~
t
1500 1/min
Einsatz und Betrieb nur gemäß Instruktions-Nr.
Operation only according to instruction no.
Utilisation uniquement selon instruction no.
q Manufacturer's address
w Fan marking:
CE = CE mark
e Version:
RDW = Type designation; alternating current
EC = motor version (EC motor)
400 = size
r Ref. no. / Production code
t Rated voltage / Frequency
6�1 Standard wiring diagrams
The devices are supplied as standard with an internal potentiometer, this allows the control voltage and desired speed
between min. and max. can be set. The delivery includes an internal potentiometer in the terminal box, which can be
used to set any fan speed between min. and max. speed. For an external speed setting with a 0-10 V control signal,
the internal potentiometer must be removed.The diagrams show the potentiometer in principle. It is possible to connect
an internal or external potentiometer.
EC-Motor
Moteur EC
Klemmkasten
terminal box
boîte à bornes
85443-001 SS-1149 24.06.22
HELIOS VENTILATOREN GmbH + Co KG
Lupfenstraße 8, 78056 Villingen-Schwenningen, Germany
Art.-Nr.: 07365-001
r
50/60 Hz
4,4 A
y
u
IP54
Iso.cl. F
82 464
y Rated current
u Indicated rated power
i Max. ambient, air flow temperature at rated operation
Rated speed
Protection category / Motor insulation class
Weight
3 x 0,5mm²
L N
1 2 3 4 5
10
w
q
PC 06219
TN 40 °C
1,05 kW
i
28 kg
D
E
Farbcode nach IEC 757
colour code according to IEC 757
code couleur selon IEC 757
BK-sw-schwarz-black-noir
BN-br-braun-brown-brun
OG-or-orange-orange
+
YE-ge-gelb-yellow-jaune
GN-gn-grün-green-vert
BU-bl-blau-blue-bleu
GY-gr-grau-grey-gris
WH-ws-weiß-white-blanc
5 x 0,22mm²
10k
Potentiometer bzw.
0-10V Signal von z.B.
PU/A 10 Art.Nr. 1734/1735
oder EUR EC Art. Nr. 1347
10k
Potentiometer or rather
0-10V signal from e.g.
PU/A 10 Art.Nr. 1734/1735
or EUR EC Art.Nr. 1347
10k
Potentiomètre resp.
0-10V signal par ex.
de PU/A 10 Art.Nr. 1734/1735
ou EUR EC Art.Nr. 1347
