Using the device
6.1

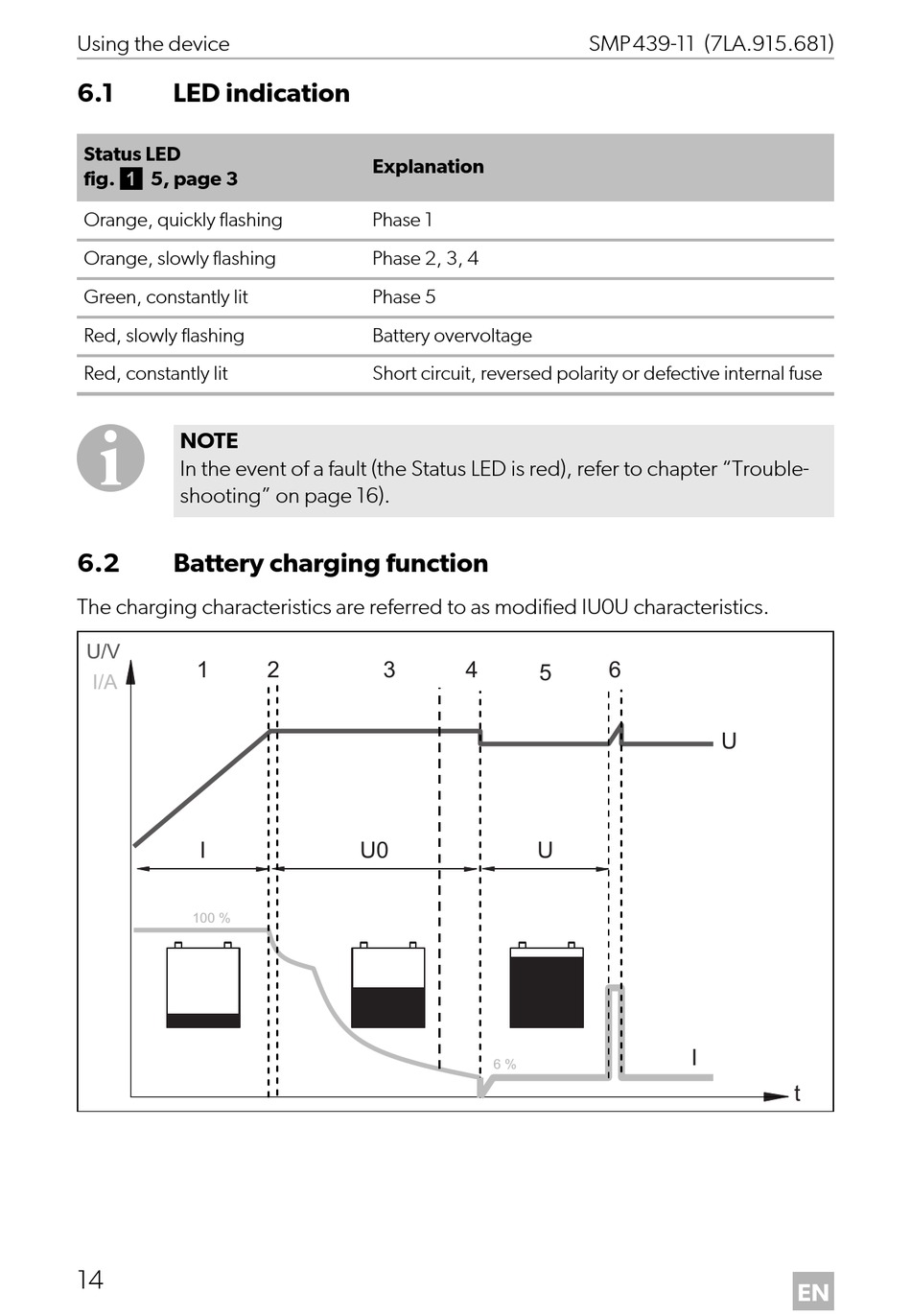

LED indication

Status LED
fig. 1 5, page 3
Orange, quickly flashing
Orange, slowly flashing
Green, constantly lit
Red, slowly flashing
Red, constantly lit
I
NOTE
In the event of a fault (the Status LED is red), refer to chapter "Trouble-
shooting" on page 16).
6.2 Battery charging function
The charging characteristics are referred to as modified IU0U characteristics.
U/V
1
I/A
I
100 %
14
Explanation
Phase 1
Phase 2, 3, 4
Phase 5
Battery overvoltage
Short circuit, reversed polarity or defective internal fuse
2 3
U0
SMP439-11 (7LA.915.681)
4 6
5
U
6 %
U
I
t
EN
