CONVERTING THE GAS GROUP
2.2 Replacing the gas fi tting (only for
group 2 heating devices, see table 1.2)
Caution.
b
Risk of damage to property via
impermissible setting.
Changes to the gas pressure
regulator of the gas fitting can result
in the destruction of the gas fitting.
Do not perform any changes to
►
the factory settings of the gas
pressure regulator on the gas
fitting.
i
Note
Some products have fittings without a gas
pressure regulator.
i
Note
Replacement of the gas fi tting requires a Torx
T20. Direct frontal removal of the gas fi tting
requires an Allen key or a Torx T20 socket
wrench. In the absence of an Allen key or simi-
lar, the entire fan unit with the gas fi tting must be
removed before the gas fi tting can be dismant-
led from the bracket.
Group 2 heating devices for operation with natural gas are
fi tted with gas fi ttings without a gas pressure regulator (4,
fi g. 2.3). A gas fi tting with a gas pressure regulator must be
installed for operation with liquid gas.
24
6
5
4
3
1
6
2
3
5

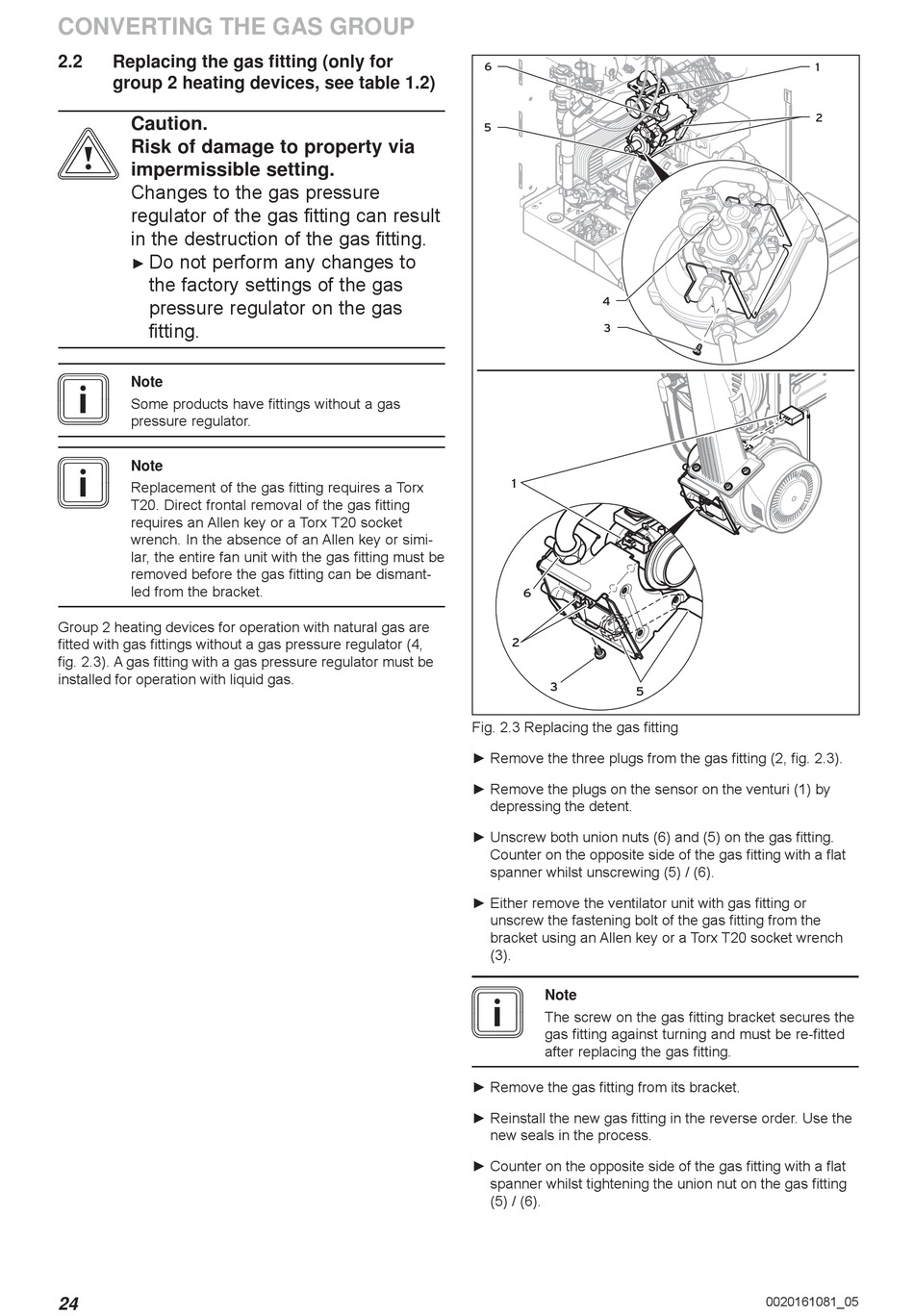

Fig. 2.3 Replacing the gas fi tting
► Remove the three plugs from the gas fi tting (2, fi g. 2.3).
► Remove the plugs on the sensor on the venturi (1) by
depressing the detent.
► Unscrew both union nuts (6) and (5) on the gas fi tting.
Counter on the opposite side of the gas fi tting with a fl at
spanner whilst unscrewing (5) / (6).
► Either remove the ventilator unit with gas fi tting or
unscrew the fastening bolt of the gas fi tting from the
bracket using an Allen key or a Torx T20 socket wrench
(3).
i
Note
The screw on the gas fi tting bracket secures the
gas fi tting against turning and must be re-fi tted
after replacing the gas fi tting.
► Remove the gas fi tting from its bracket.
► Reinstall the new gas fi tting in the reverse order. Use the
new seals in the process.
► Counter on the opposite side of the gas fi tting with a fl at
spanner whilst tightening the union nut on the gas fi tting
(5) / (6).
