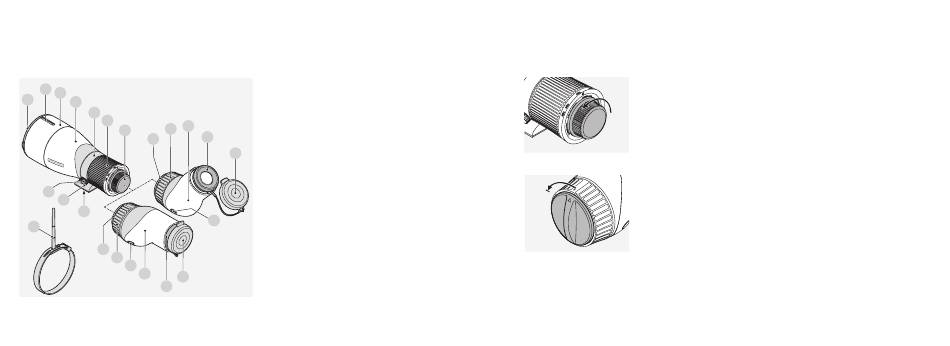

1. DESCRIPTION
5 6
4
1 1
7
8
2 2
14
9
13
10
11
12
18
13
14
17
3 3
16
15
The BTX eyepiece module can also be combined with the objective modules (65, 85, 95, 115).
18
1 Objective module
(65, 85, 95, 115)
2 Eyepiece module ATX
3 Eyepiece module STX
4 Objective lens cover
5 Aiming aid
6 Sunshade
7 Tripod ring
8 Focusing set collar
15
9 Bayonet fitting cap
16
10 Locking screw
11 Tripod foot
12 Attaching thread for tripod
13 Bayonet fitting cap
17 14 Magnification changer
set collar
15 Eyecup
16 Eyepiece cover
17 Release button
18 Aiming aid ATX
ATX/STX / EN ATX/STX / DE
2. OPERATION
2.1 REMOVE PROTECTING COVER
Bayonet fitting cap objective module
To remove cap, turn bayonet fitting cap counterclockwise.
Bayonet fitting cap eyepiece module
Remove bayonet fitting cap from eyepiece module turning
counterclockwise.
ATX/STX / EN ATX/STX / DE
