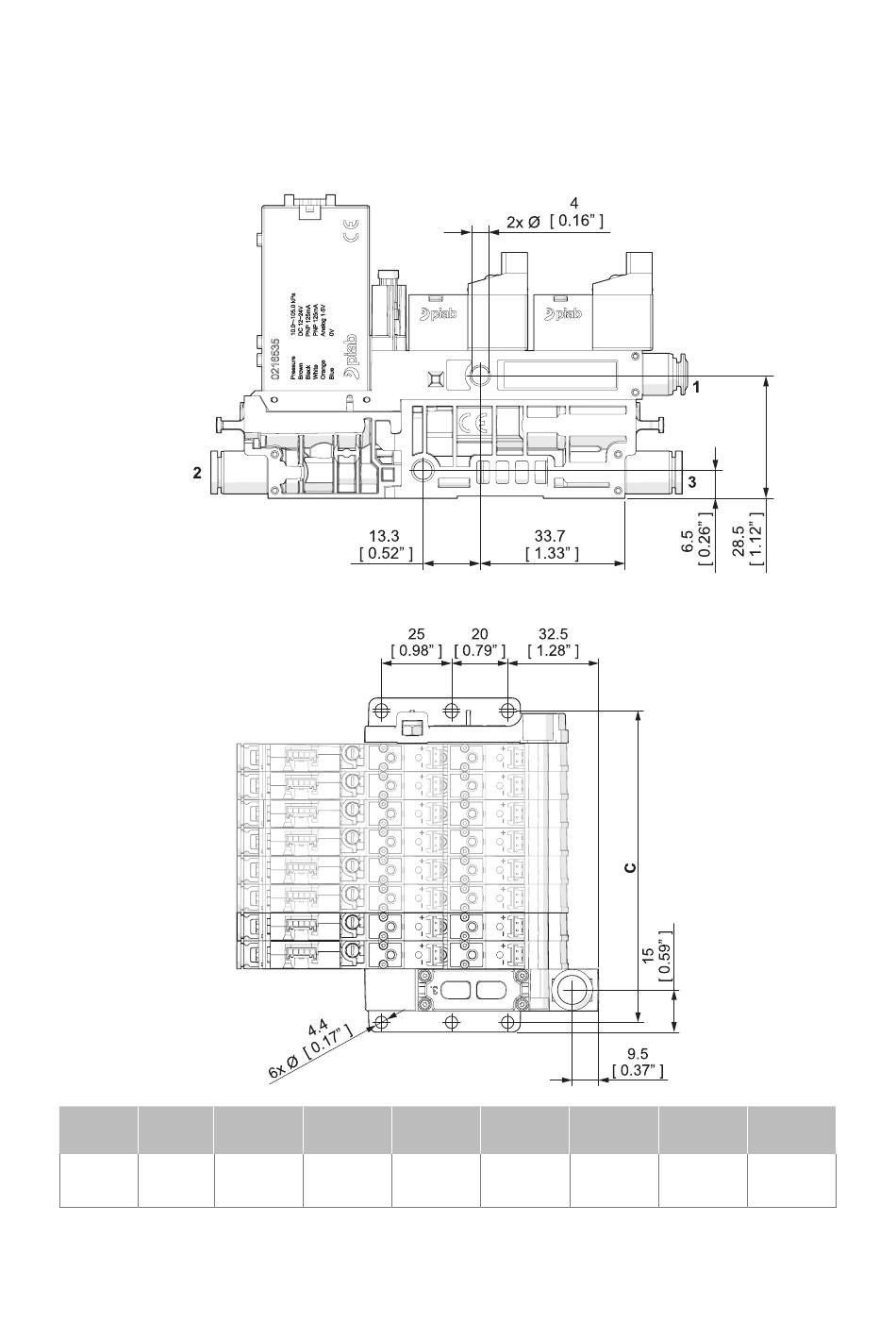

MOUNTING
COMPACT10E can be installed as a single unit/channel mounted sideways, or as multiple (2 to 8)
units in a stack mounted upright.
1 CHANNEL

2-8 CHANNELS IN A MANIFOLD MOUNT

Stack Unit
width
mm
C
[in]
2 ch 3 ch
52.8 62.8
[2.08''] [2.47'']
4 ch 5 ch
72.9 82.9
[2.87''] [3.26'']
6 ch 7 ch
92.9 103.0
[3.66''] [4.06'']
8 ch
113.0
[4.45'']
9
