INSTALLATION - INTRODUCTION
NOTES ON THE MOVEMENT OF THE DEVICE:
This device has been designed for easy installation and assembly with the possibility to place it
practically in any place, i.e. anywhere where the chimney can be brought out in accordance with
the installation requirements of the fireplace manual and the building law.
WARNING: DO NOT TRY TO MOVE THE DEVICE DURING OPERATION!

INSTALLATION RULES

The installation should be carried out in accordance with the requirements of the law in force in the
country or region concerned. In the absence of such regulations, the rules contained in this manual
and fire safety rules should be followed.
This appliance has been tested for quality and safety and has been certified by a notified testing insti-
tute, and the housing has only been tested for strength and safety with this appliance!

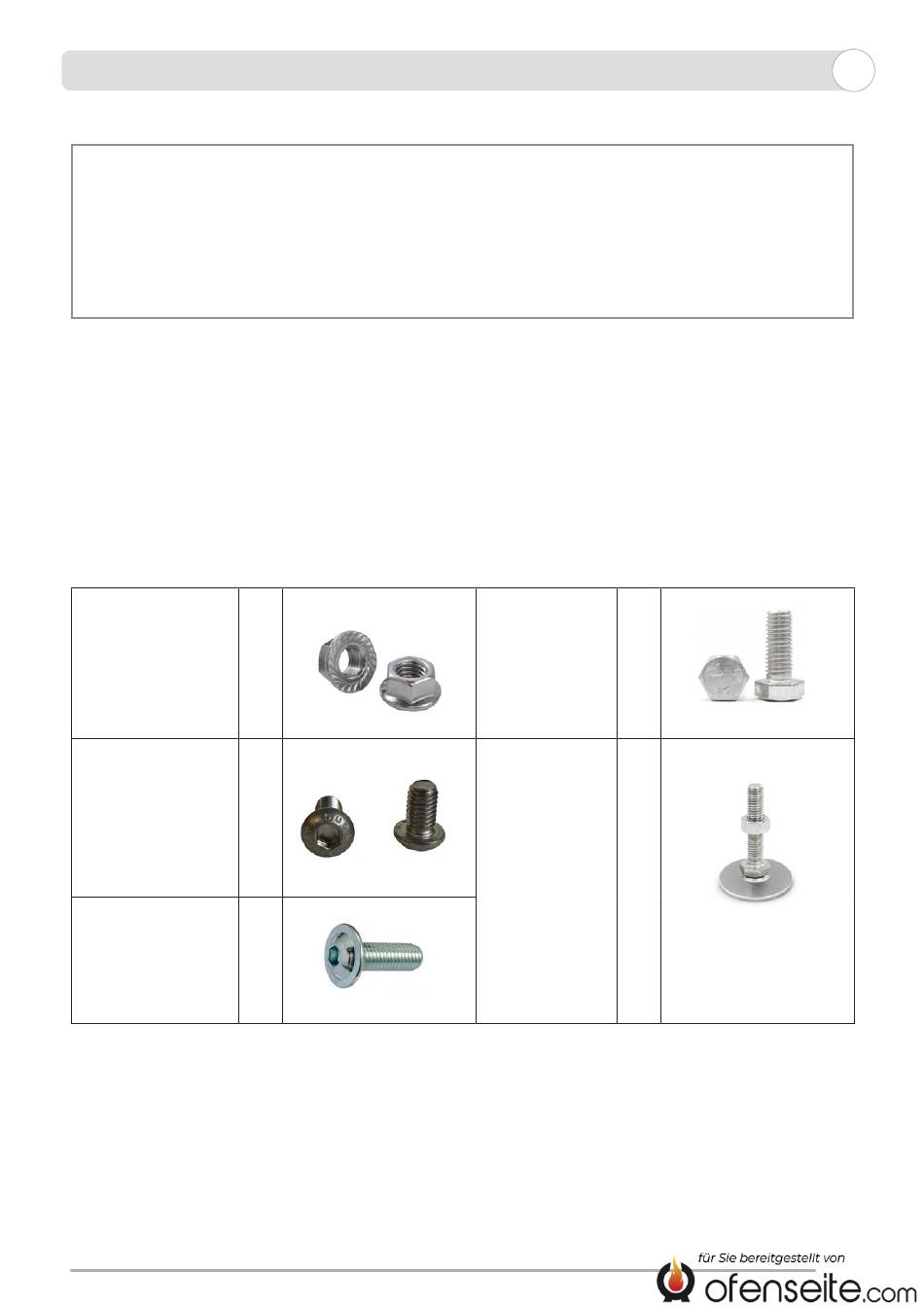

FASTENERS
The following fasteners are included:
Hexagon nut with
tapered flange M6
DIN 6923
Mushroom screw
M4x6 ISO 7380
Mushroom head
screw M5x10~ ISO
7380
INSTALLATION
The device should be assembled according to the diagram below. Skipping any step during
installation may result in damage to the device during operation or even in dangerous situations that
may endanger the health of the device users.
Step 1: First of all, screw the rear legs of the substructure as shown in the diagram below, turning
them into M6 bolts and nuts at the points indicated. Also, screw in the supplied adjustable feet for
subsequent levelling of the entire structure.
26
4
51
Hexagon head 26
screw M6x12
DIN 933 / ISO
4017 / 82105
Complete 4
footer
