General description

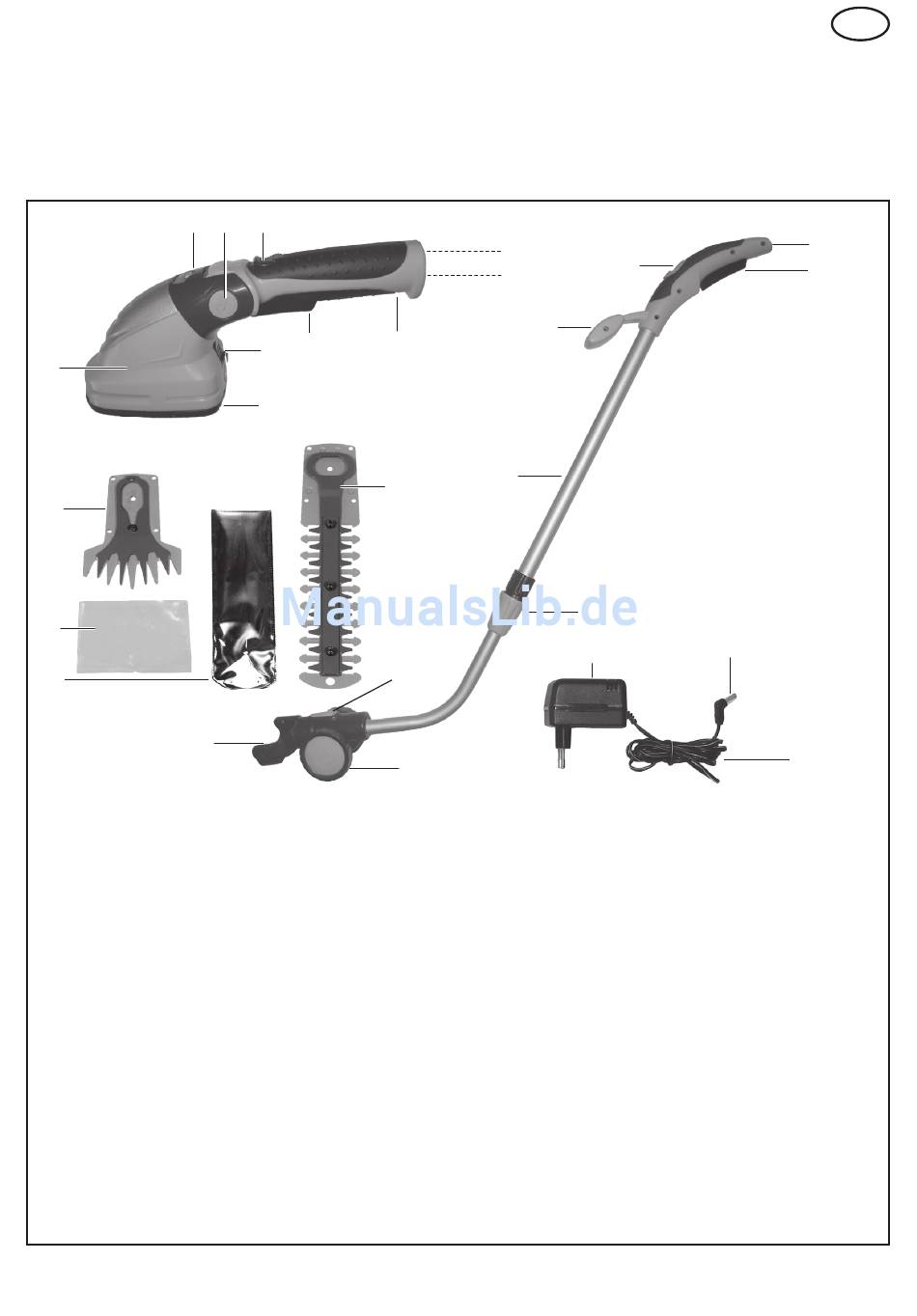

Overview

1 2
10
14
13
12
19
Appliance:
1 Charge condition display
2 Stop button for swivelling the cutting
head
3 Off-lock switch, unit
4 Charging socket
5 Charge display (LED)
6 Unit handle
7 On/off switch, unit
8 Locking bolt for turning the cutting head
9 Blade cover
10 Cutting head
Cutter:
11 Shrub trimming blade
12 Blade guard for shrub trimming blade
13 Blade guard for grass trimming blade
14 Grass trimming blade
3
6
7
8
9
11
20
18
4
23
5
22
21
17
24
Telescopic shaft with rollers:
15 Handle
16 On/off switch, telescopic shaft
17 Height adjustment screw
18 Wheels on a shaft
19 Equipment holder
20 Safety release knob for turning the unit
21 Telescopic tube
22 Additional handle
23 Off-lock switch, telescopic shaft
16 Plug connection
18 Rotary joint for turning the telescopic shaft
Recharger:
21 Power supply unit
22 Recharger cable plug
23 Recharger cable
