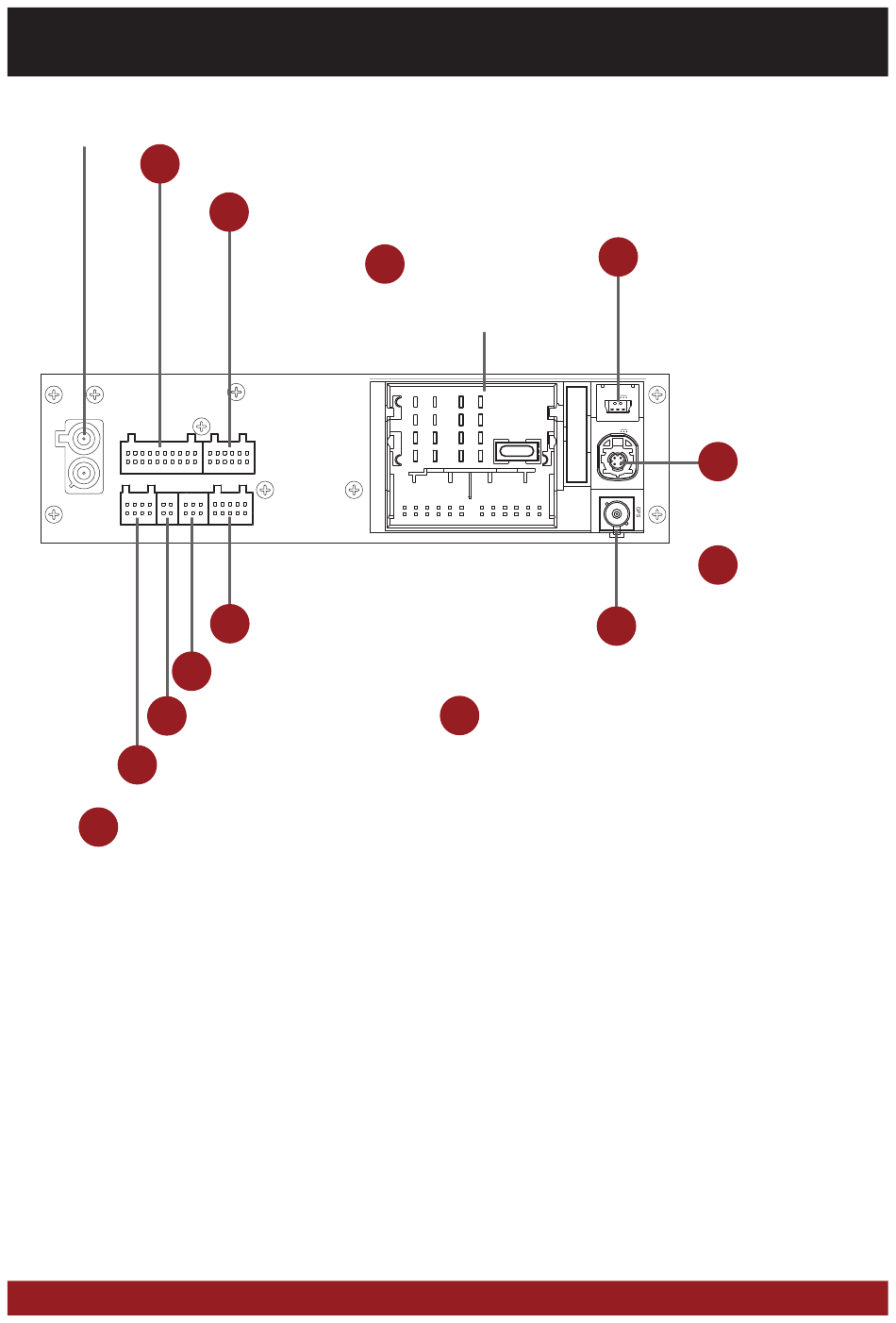

CONNECTION DIAGRAM / Anschlussdiagramm
AM/FM ANTENNA
AM/FM Antenne
5
1 . Dual Zone Audio
2 . Front&Rear CAM.In
12V DC
3 . Ext MIC
9
8
VAR. SYSTEM CONNECTIONS, E.G. DAB BOX
7
Div. System-Anschlüsse, z.B. DAB-Box
Q
QUADLOCK-PLUG ASSIGNMENT
RR+
=
SPEAKER REAR RIGHT +
FR+
=
SPEAKER FRONT RIGHT +
FL+
=
SPEAKER FRONT LEFT +
RL+
=
SPEAKER REAR LEFT +
RR-
=
SPEAKER REAR RIGHT –
FR-
=
SPEAKER FRONT RIGHT –
FL-
=
SPEAKER FRONT LEFT –
RL-
=
SPEAKER REAR LEFT –
CAN0H
=
CAN HIGH
CAN0L
=
CAN LOW
GND
=
GROUND CLAMP 31
ACC
=
IGNITION PLUS CLAMP 15*
LIN
=
NO FUNCTION*
BATT
=
CONSTANT PLUS CLAMP 30
ILL
=
ILLUMINATION*
AUX_L
=
AUX SIGNAL L
AUX_R
=
AUX SIGNAL R
AUX_GND =
AUX GROUND
* Do not use with connected CAN wires
6
AUDIO / VIDEO / AV INPUTS
Audio / Video / AV-Eingänge
AUDIO OUTPUTS 5.1 WITH REMOTE TURN ON
6
Audio-Ausgänge 5.1 mit Einschaltleitung
6
5
4
3
2
1
4 . Ext.comm.Port(Uart)
5V DC
1A SWC
5 . 5.1CH Audio Out
300mA
6 . AV IN ,Ext TV IN
12V DC
500mA
AUDIO/VIDEO OUTPUTS 1/2
10
Audio/Video-Ausgänge
CAMERA CONNECTIONS
Kamera-Anschlüsse
EXTERNAL BT-MICROPHONE
Externes BT-Mikrofon
SPECIFIC CONNECTOR
Q
OF THE VEHICLE
Fahrzeugspezifischer
Stecker
RR+
RR-
CAN0H
ACC
FR-
FR+
CAN0L
LIN
FL-
FL+
BATT
RL+
RL-
GND
ILL
AUX_
AUX_L
GND
AUX_R
ADAPTOR FOR ORIGINAL MICRO (DEPENDING ON VEHICLE)
OR
15
Adapter für originales Mikrofon (Fahrzeugabhängig)
oder
Quadlock-Stecker Belegung
RR+
FR+
FL+
RL+
RR-
FR-
FL-
RL-
CAN0H
CAN0L
GND
ACC
LIN
BATT
ILL
AUX_L
AUX_R
AUX_GND =
* Nicht verwenden bei angeschlossenen CAN Leitungen
11
USB PORT 1
QUICK CHARGE
USB-Anschluss 1
Schnellladefunktion
USB1
5V DC
1.5A
Quick_charge
USB2
5V DC
1A
12
Original car USB
CAN
13
GPS ANTENNA
14
GPS Antenne
=
Lautsprecher hinten rechts +
=
Lautsprecher vorne rechts +
=
Lautsprecher vorne links +
=
Lautsprecher hinten links +
=
Lautsprecher hinten rechts -
=
Lautsprecher vorne rechts -
=
Lautsprecher vorne links -
=
Lautsprecher hinten links -
=
Can High
=
Can Low
=
Masse Klemme 31
=
Zündungplus Klemme 15*
=
Ohne Funktion*
=
Dauerplus Klemme 30
=
Beleuchtung*
=
AUX Signal L
=
AUX Signal R
AUX Masse
USB PORT 2
USB-Anschluss 2
OR
oder
FACTORY
USB ADAPTOR
Werksseitiger
USB Adapter
