Adjustments

5 Adjustments
5.1

Adjustment of the inside height

•
With one hand hold the adjustable support (1), with the other hand disconnect the spring bolt (2) about
180°.
•
Adjust the height of the adjustable support (1) by hand.
•
Fix the spring bolt (2) in on of the defined positions.
•
Take care, that the lower edge of the rubber grippers is aligned with the lower edge of the gripping
good.
Always fix the spring bolt (2) after adjusting the height of the support. Danger of accidents!

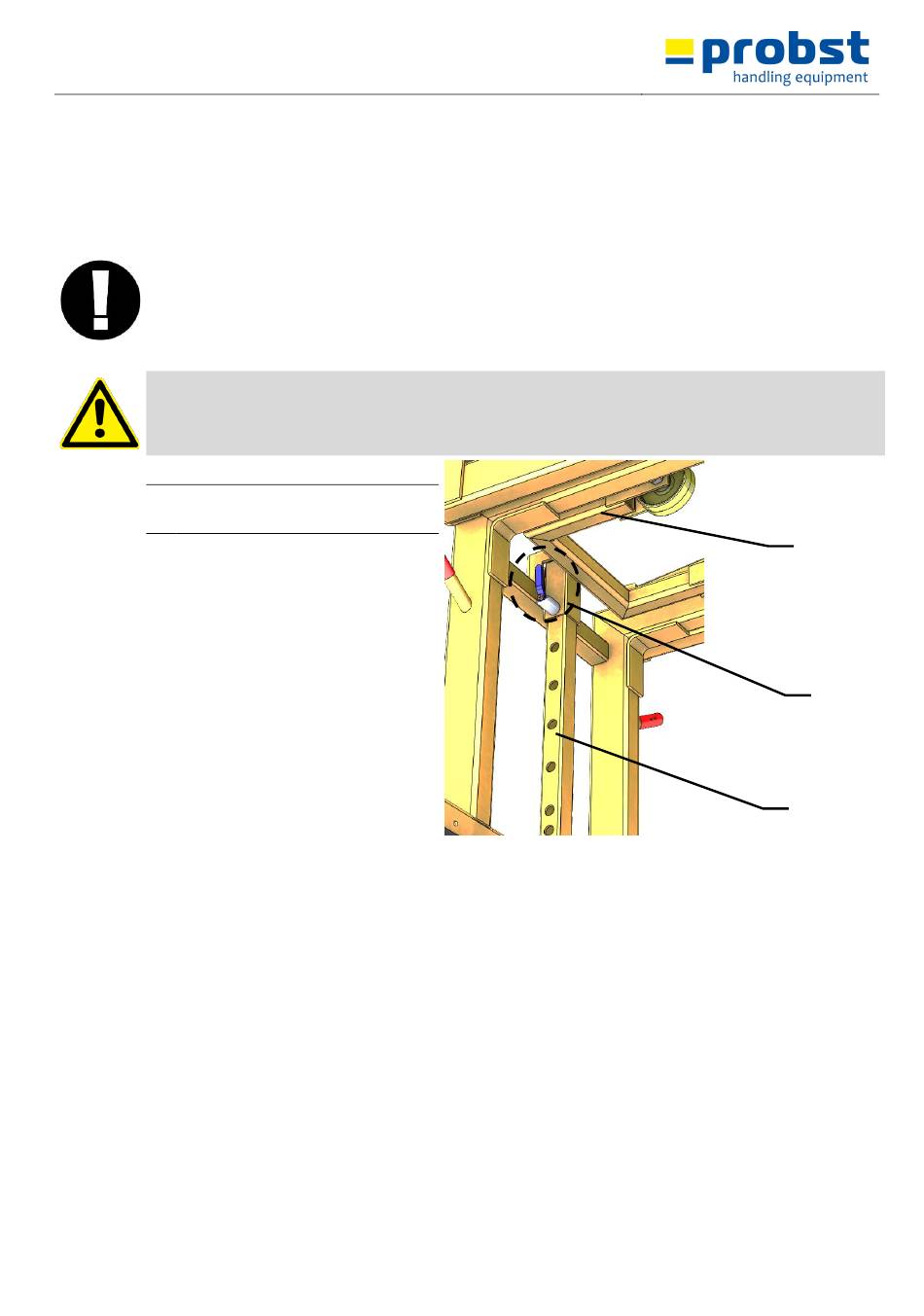

1 Adjustable support
2 Spring bolt (to adjust the inside
height)
3 Adjustable inside height (rectangular
tube with adjusting holes)
53100380 14 / 26
1
2
3
