EN

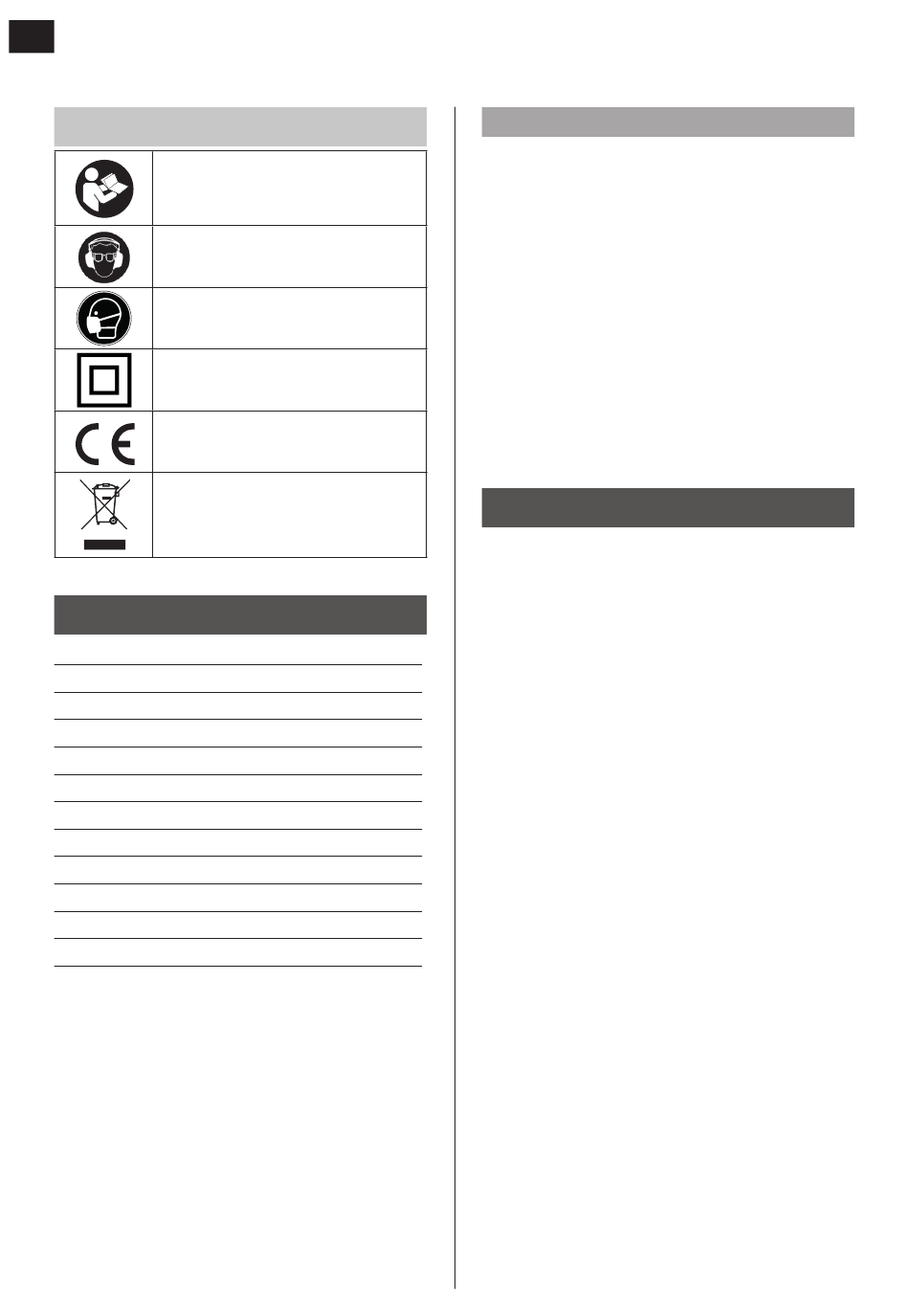

SYMBOLS
Read the instructions.
Wear eye and ear protection.
Wear a dust filter mask.
Safety class II
Approved in accordance with
the relevant directives.
Recycle discarded product
in accordance with local
regulations.

TECHNICAL DATA

Rated voltage
Output
Speed, no load
Blade capacity
Sawing capacity 45° 90°
Sawing capacity 90° 45°
Sawing capacity 45° 45°
Sawing capacity 90° 90°
Cord length
Weight
Sound pressure level, L p A 91.8 dB(A), K=3 dB
Sound power level, L w A 108.26 dB(A), K=3 dB
Always wear ear protection!
The declared values for vibration and noise,
which have been measured according to a
standardised test method, can be used to
compare different tools with each other and
for a preliminary assessment of exposure. The
measurement values have been determined in
accordance with EN 62841-2-9:2015.
46
230 V ~ 50 Hz
900 W
5500 rpm
190 mm
75 x 50 mm
110 x 30 mm
75 x 30 mm
110 x 50 mm
2 m
5.4 kg
WARNING!
The actual vibration and noise level when
using tools may differ from the specified
maximum value, depending on how the
tool is used and the material. It is therefore
necessary to determine which safety
precautions are required to protect the user,
based on an estimate of exposure in actual
operating conditions (taking into account all
stages of the work cycle, e.g. the time when
the tool is switched off and when it is idling,
in addition to the start-up time).
DESCRIPTION
The product is a mitre saw intended for sawing
straight or angled cuts in wood and similar
materials with a mitre angle of up to 45°. The
product is not intended for sawing firewood.
The tool and accessories must only be used in
the intended manner and in accordance with
these instructions. All other use is considered to
be unsuitable.
Parts:
1. Saw arm
2. Locking pin
3. Control handle
4. Fixed top blade guard
5. Movable bottom blade guard
6. Retraction arm for blade guard
7. Bevel angle lock
8. Bevel angle scale
9. Adjusting screw bevel angle 45°
10. Adjusting screw bevel angle 0°
11. Fence
12. Saw table
13. Mitre scale
14. Saw table insert
15. Saw table lock
