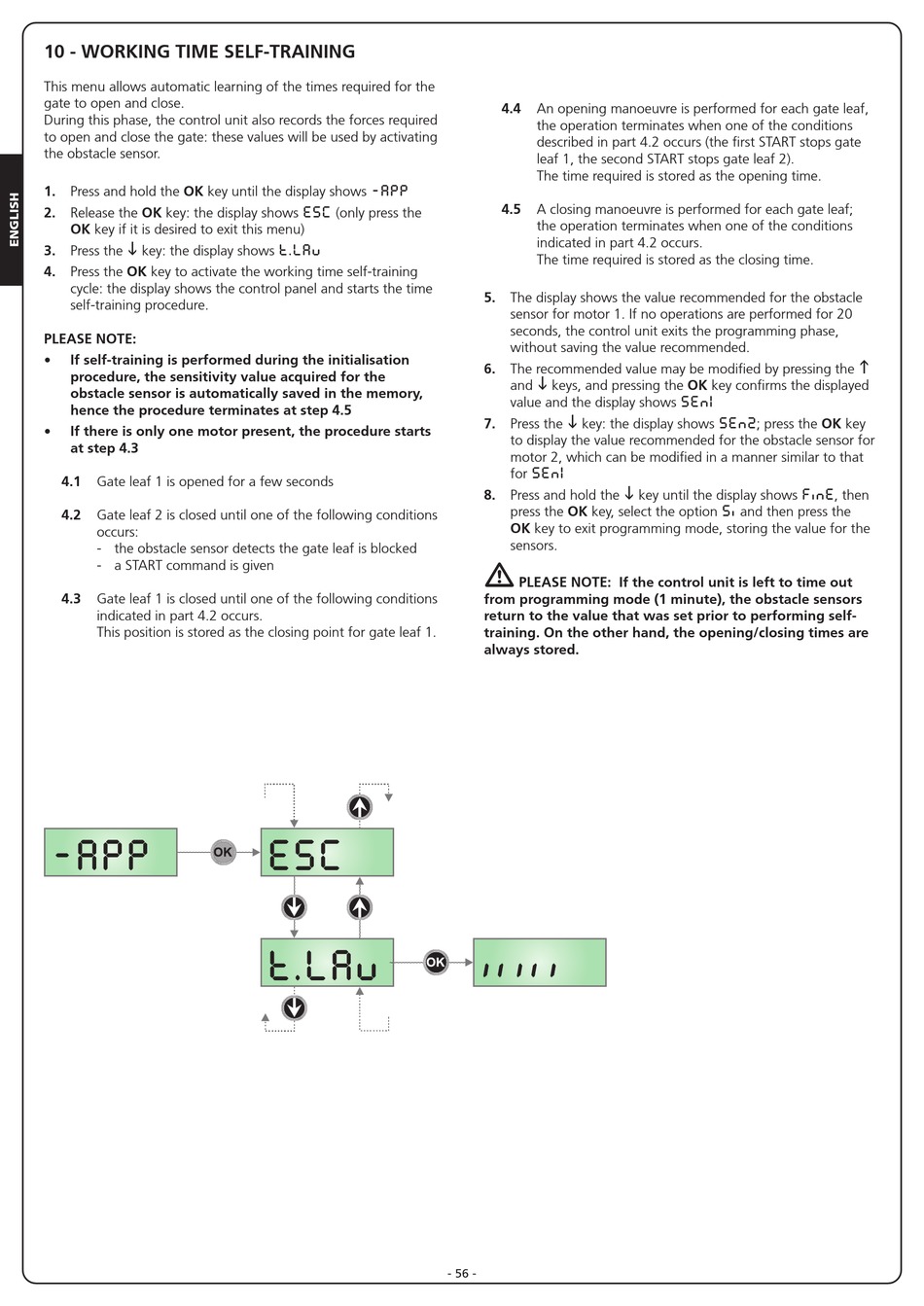

10 - WORKING TIME SELF-TRAINING

This menu allows automatic learning of the times required for the
gate to open and close.
During this phase, the control unit also records the forces required
to open and close the gate: these values will be used by activating
the obstacle sensor.
1. Press and hold the OK key until the display shows
2. Release the OK key: the display shows
OK key if it is desired to exit this menu)
i
3. Press the key: the display shows
4. Press the OK key to activate the working time self-training
cycle: the display shows the control panel and starts the time
self-training procedure.
PLEASE NOTE:
• If self-training is performed during the initialisation
procedure, the sensitivity value acquired for the
obstacle sensor is automatically saved in the memory,
hence the procedure terminates at step 4.5
• If there is only one motor present, the procedure starts
at step 4.3
4.1
Gate leaf 1 is opened for a few seconds
4.2 Gate leaf 2 is closed until one of the following conditions
occurs:
- the obstacle sensor detects the gate leaf is blocked
- a START command is given
4.3 Gate leaf 1 is closed until one of the following conditions
indicated in part 4.2 occurs.
This position is stored as the closing point for gate leaf 1.
-APP
-APP
ESC
(only press the
t.LAu
ESC
t.LAu
4.4 An opening manoeuvre is performed for each gate leaf,
the operation terminates when one of the conditions
described in part 4.2 occurs (the first START stops gate
leaf 1, the second START stops gate leaf 2).
The time required is stored as the opening time.
4.5
A closing manoeuvre is performed for each gate leaf;
the operation terminates when one of the conditions
indicated in part 4.2 occurs.
The time required is stored as the closing time.
5. The display shows the value recommended for the obstacle
sensor for motor 1. If no operations are performed for 20
seconds, the control unit exits the programming phase,
without saving the value recommended.
6.
The recommended value may be modified by pressing the
i
and keys, and pressing the OK key confirms the displayed
value and the display shows
i
7. Press the key: the display shows
to display the value recommended for the obstacle sensor for
motor 2, which can be modified in a manner similar to that
SEn1
for
8.
Press and hold the
press the OK key, select the option
OK key to exit programming mode, storing the value for the
sensors.
m
PLEASE NOTE: If the control unit is left to time out
from programming mode (1 minute), the obstacle sensors
return to the value that was set prior to performing self-
training. On the other hand, the opening/closing times are
always stored.
- 56 -
SEn1
SEn2
; press the OK key
i
key until the display shows
Si
and then press the
h
FinE
, then
