Installation in outdoor control cabinet
As an alternative to an indoor installation, installation in a GRAF outdoor control cabinet is possible.
GRAF can supply outdoor control cabinets in two different sizes:
Outdoor cabinet S (item No. 107990)
When installing the control unit in the outdoor control cabinet, the installation
instructions enclosed with the outdoor control cabinet must be observed!

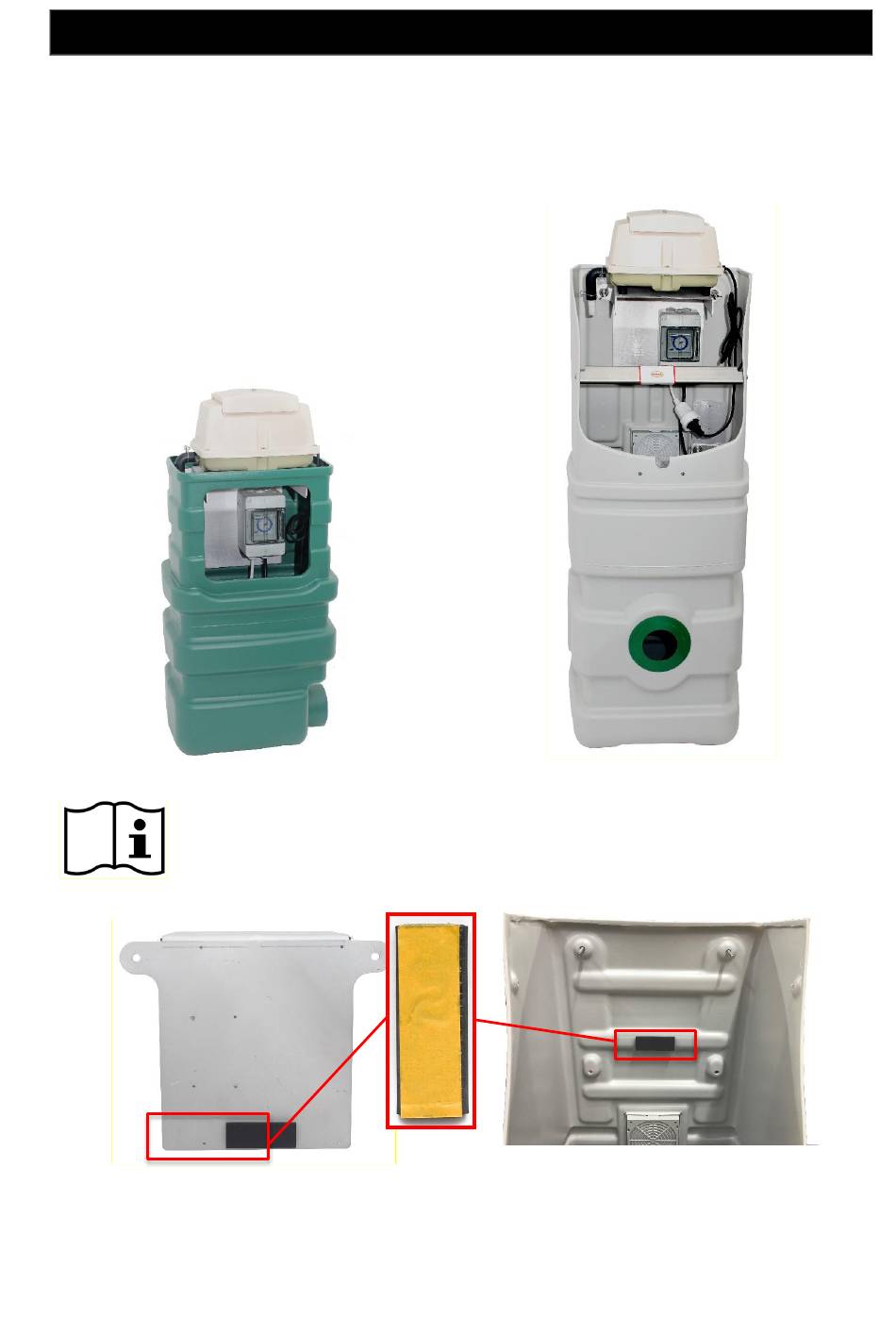

For Outdoor cabinet S: Tape down foam rubber on
the back of the control unit.
Use the supplied piece of foam rubber (self-adhesive) if the control unit is installed in an outdoor control
cabinet. This prevents vibrations.
5. Installing the control unit
For Outdoor cabinet M: Tape down the foam
23 / 52
Outdoor cabinet M (item No. 106589)
rubber onto the middle of the
center rib.
