4. Assembly
The final assembly of the ventilation system and the Securix filter is carried out at the installation site.
4.1
Drilling the hole for the outlet pipe

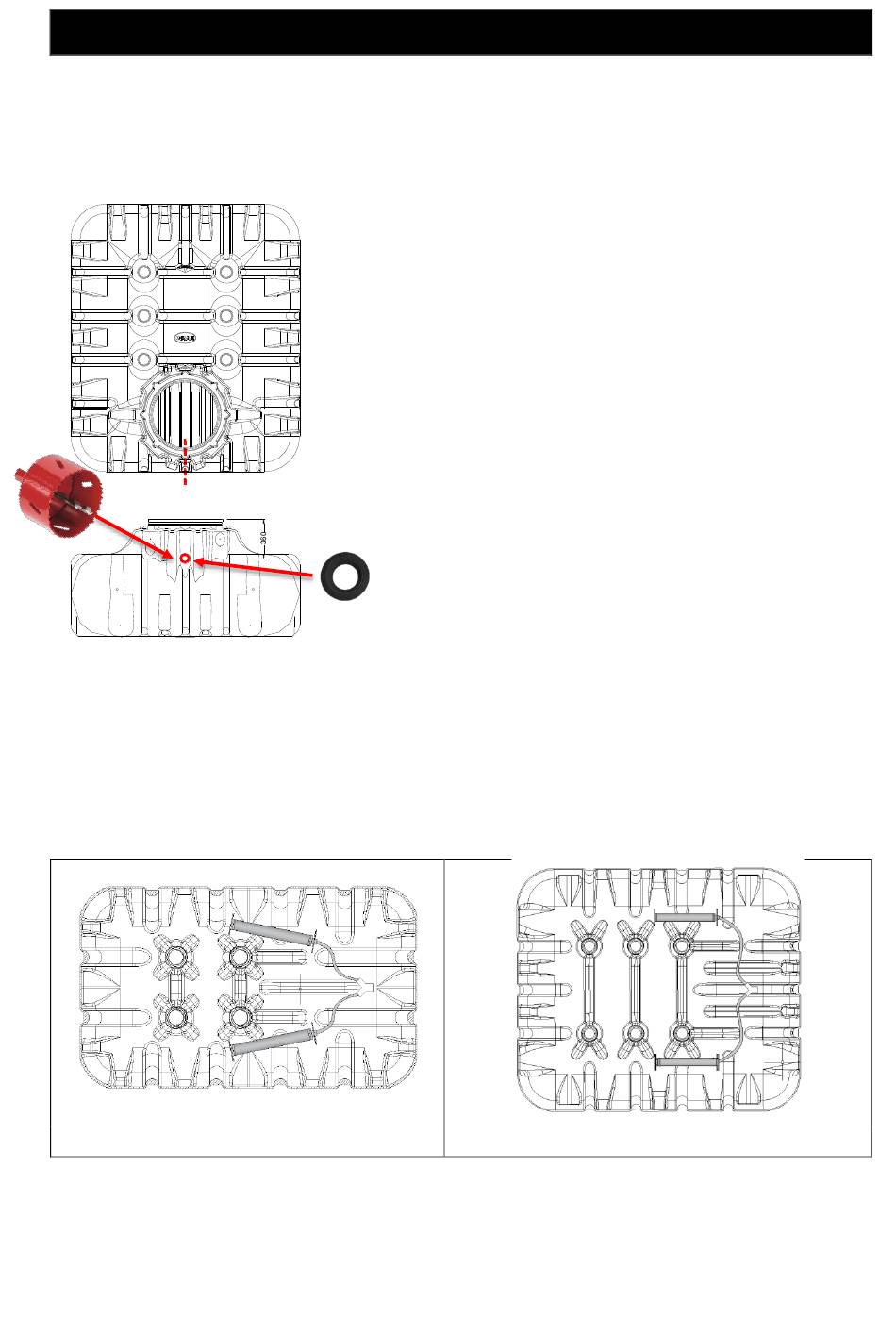

Drill the hole for the outlet using a DN 75 crown drill (hole diameter: 83 mm) according to the drawing.
Deburr the drill hole and insert a DN 75 lip seal. The insertion direction of the pipe is from the inside out.
4.2
Installing the diaphragm pipe aerators
An air hose (l=2.15 m) must be connected to each pipe aerator.
The pipe aerators are to be positioned in the tank according to the drawing below:
380 l/d, Platin 1500 L
4. Assembly
18 / 52
760 l/d, Platin 3000 L
