Connection via ICN connector

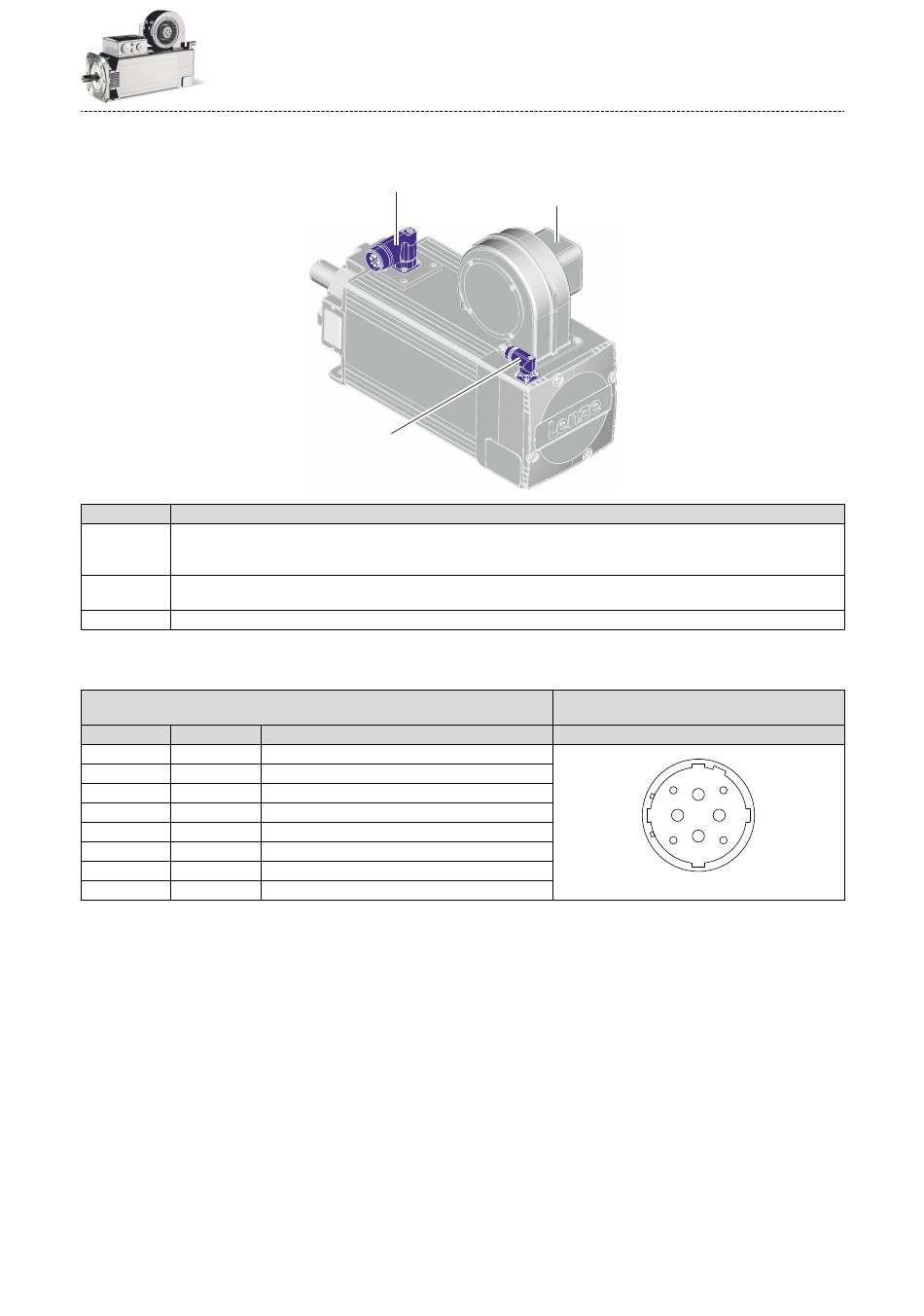

Position of the connections
Position Meaning
1 Power connection
Brake connection
PE connection
2 Feedback connection
Connection of temperature monitoring
3 Blower connection
Power and brake connection
Valid for MQA20
ICN-M40 connector assignment
8-pole
Contact Name
1
2
+ BD1
- BD2
PE PE
V V
V V
W W
1
2
Meaning
Not assigned
Not assigned
Holding brake +
Holding brake -
PE conductor
Power phase U
Power phase V
Power phase W
Electrical installation
Connection via ICN connector
3
V
- +
W
2
+
Motor connection
U
1
