Electrical installation
Motor connection
Connection via ICN connector
Feedback and temperature monitoring connection

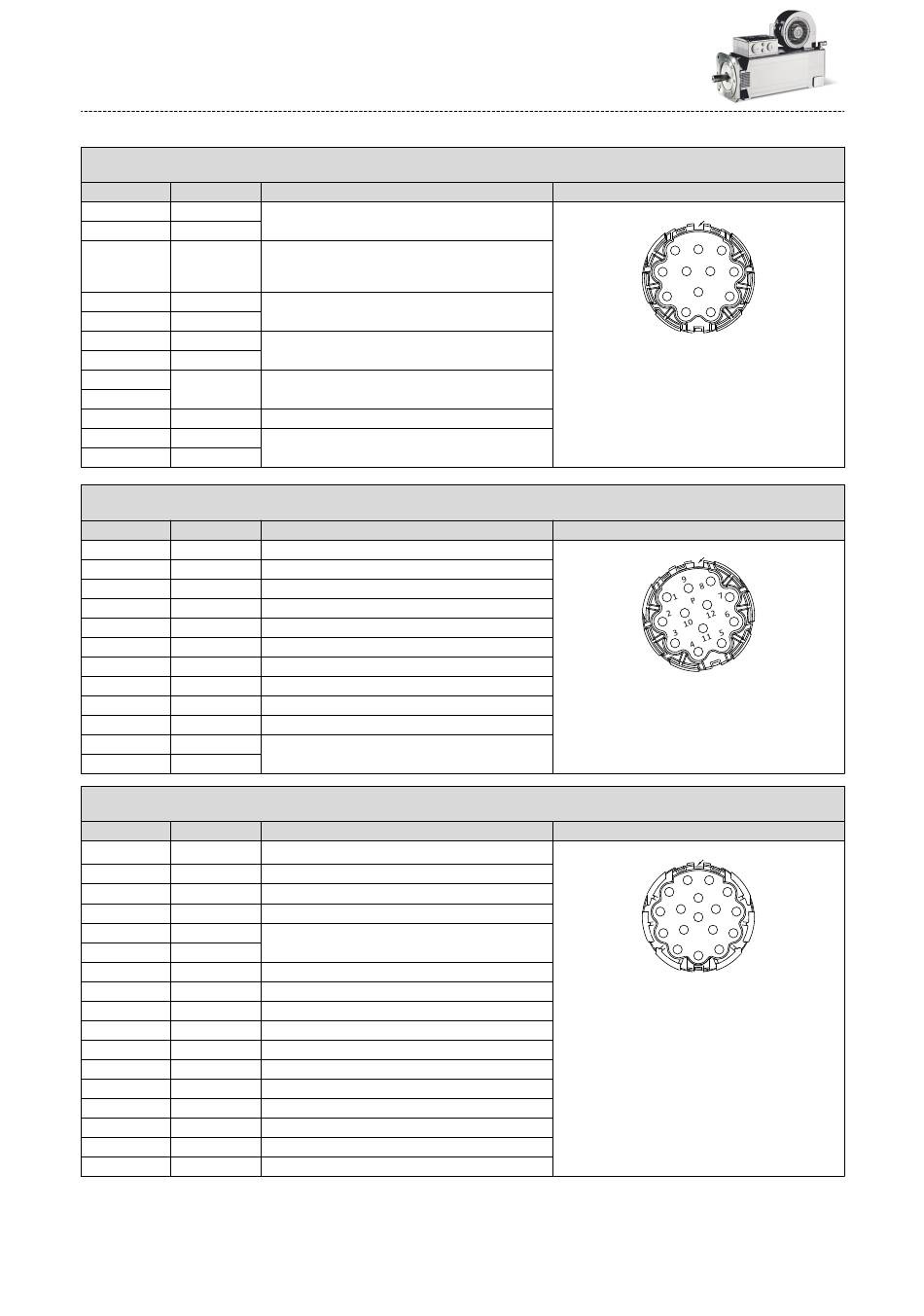

ICN-M23 connector assignment
Resolvers
Contact Name
1 + Ref
2 - Ref
3 +VCC ENP
4 + Cos
5 - Cos
6 + Sin
7 - Sin
8
9
10 Shield
11 +
12 -
ICN-M23 connector assignment
Incremental and SinCos absolute value encoder Hiperface©
Contact Name
1 B
2 A¯
3 A
4 + UB
5 GND
6 Z¯
7 Z
8
9 B¯
10 Shield
11 +
12 -
ICN-M23 connector assignment
SinCos absolute value encoder with EnDat interface
Contact Designation
U sensor
1
P
2
3
4 0 V sensor
5 +
6 -
7 + UB
8 Cycle
9 Cycle¯
10 GND
11 Shield
12 B
13 B¯
14 Data
15 A
16 A¯
17 Data¯
50
Meaning
Transformer windings
Supply: Electronic nameplate
(Only for motors and inverters which support this
function)
Stator windings cosine
Stator windings Sine
Not assigned
Encoder housing shield
Temperature monitoring: PT1000
Meaning
Track B / + SIN
Track A inverse / - COS
Track A / + COS
Supply +
Mass
Zero track inverse / - RS485
Zero track / + RS485
Not assigned
Track B inverse/-SIN
Encoder housing shield
Temperature monitoring: PT1000
Meaning
U sensor
P
Not assigned
Not assigned
0 V sensor
Temperature monitoring: KTY/PT1000
Supply +
EnDat interface cycle
Inverse EnDat interface cycle
Mass
Encoder housing screen
Track B
Track B inverse/-SIN
EnDat interface data
Track A
Track A inverse
Data inverse EnDat interface
Code 0°
9
8
1
P
7
2
10 12
6
3
11
5
4
Code 20°
Code 0°
1
11
10 2
12
17
9 3
16
13
8 4
15
14
5
7
6
