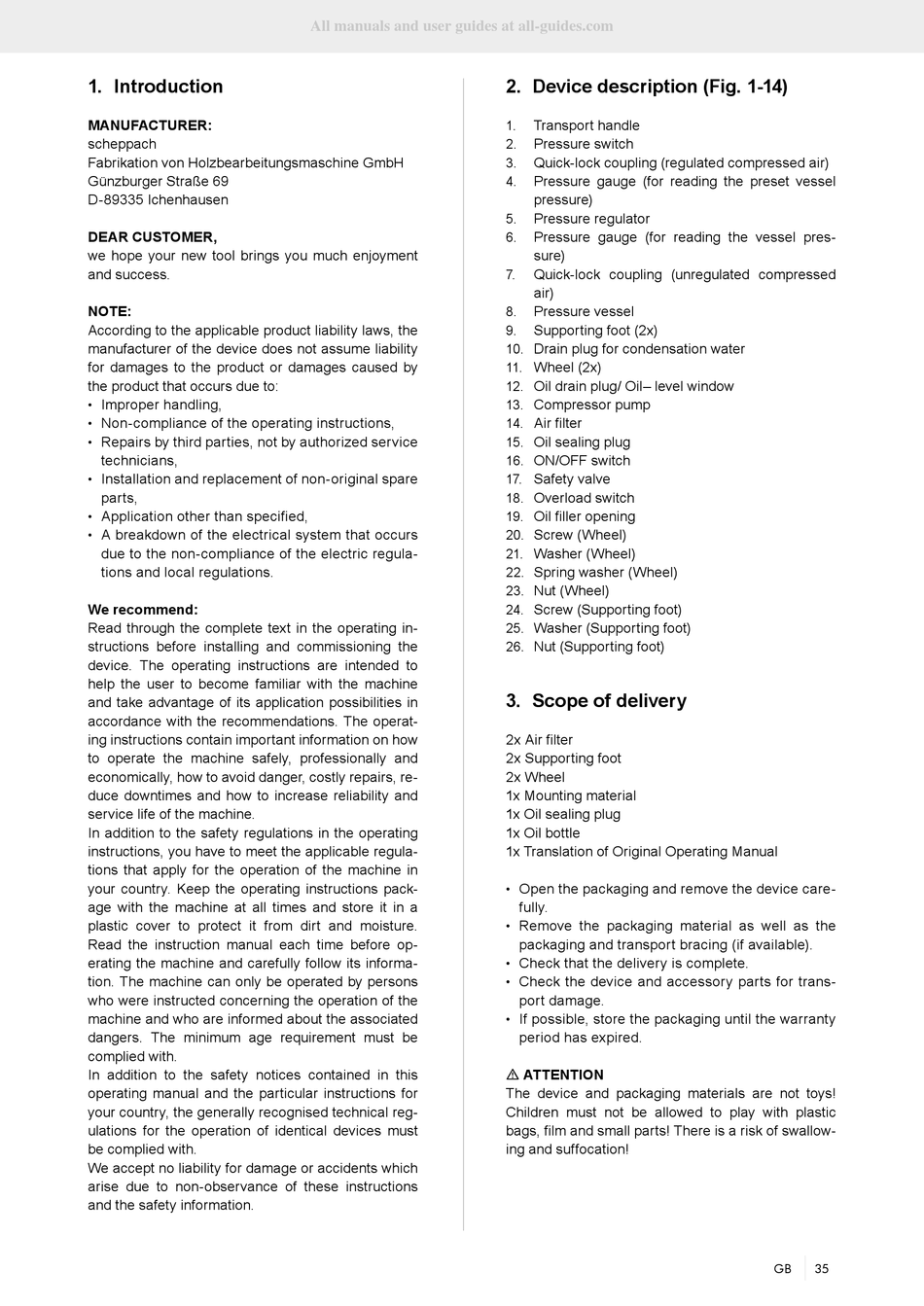

1. Introduction

MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
D-89335 Ichenhausen
DEAR CUSTOMER,
we hope your new tool brings you much enjoyment
and success.
NOTE:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
Improper handling,
•
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
Installation and replacement of non-original spare
•
parts,
Application other than specified,
•
A breakdown of the electrical system that occurs
•
due to the non-compliance of the electric regula-
tions and local regulations.
We recommend:
Read through the complete text in the operating in-
structions before installing and commissioning the
device. The operating instructions are intended to
help the user to become familiar with the machine
and take advantage of its application possibilities in
accordance with the recommendations. The operat-
ing instructions contain important information on how
to operate the machine safely, professionally and
economically, how to avoid danger, costly repairs, re-
duce downtimes and how to increase reliability and
service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in
your country. Keep the operating instructions pack-
age with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture.
Read the instruction manual each time before op-
erating the machine and carefully follow its informa-
tion. The machine can only be operated by persons
who were instructed concerning the operation of the
machine and who are informed about the associated
dangers. The minimum age requirement must be
complied with.
In addition to the safety notices contained in this
operating manual and the particular instructions for
your country, the generally recognised technical reg-
ulations for the operation of identical devices must
be complied with.
We accept no liability for damage or accidents which
arise due to non-observance of these instructions
and the safety information.
All manuals and user guides at all-guides.com

2. Device description (Fig. 1-14)

Transport handle
1.
Pressure switch
2.
Quick-lock coupling (regulated compressed air)
3.
4. Pressure gauge (for reading the preset vessel
pressure)
Pressure regulator
5.
Pressure gauge (for reading the vessel pres-
6.
sure)
Quick-lock coupling (unregulated compressed
7.
air)
8. Pressure vessel
Supporting foot (2x)
9.
Drain plug for condensation water
10.
Wheel (2x)
11.
Oil drain plug/ Oil– level window
12.
Compressor pump
13.
14. Air filter
15. Oil sealing plug
ON/OFF switch
16.
Safety valve
17.
Overload switch
18.
Oil filler opening
19.
Screw (Wheel)
20.
21. Washer (Wheel)
Spring washer (Wheel)
22.
Nut (Wheel)
23.
Screw (Supporting foot)
24.
Washer (Supporting foot)
25.
Nut (Supporting foot)
26.

3. Scope of delivery

2x Air filter
2x Supporting foot
2x Wheel
1x Mounting material
1x Oil sealing plug
1x Oil bottle
1x Translation of Original Operating Manual
Open the packaging and remove the device care-
•
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
Check that the delivery is complete.
•
Check the device and accessory parts for trans-
•
port damage.
If possible, store the packaging until the warranty
•
period has expired.
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swallow-
ing and suffocation!
