4.6 Connecting of Cruise R/T to Power 26-104 lithium battery/batteries

Congratulations! You have opted for the state-of-the-art battery technology!

4.6.1 Cruise 2.0 R/T

Cruise 2.0 R/T operates with a power supply of between 20 V and 30 V (referring to no-
minal voltage). This means it may be operated with at least one Torqeedo Power 26-104
lithium-battery.
Power 26-104 is connected as follows :

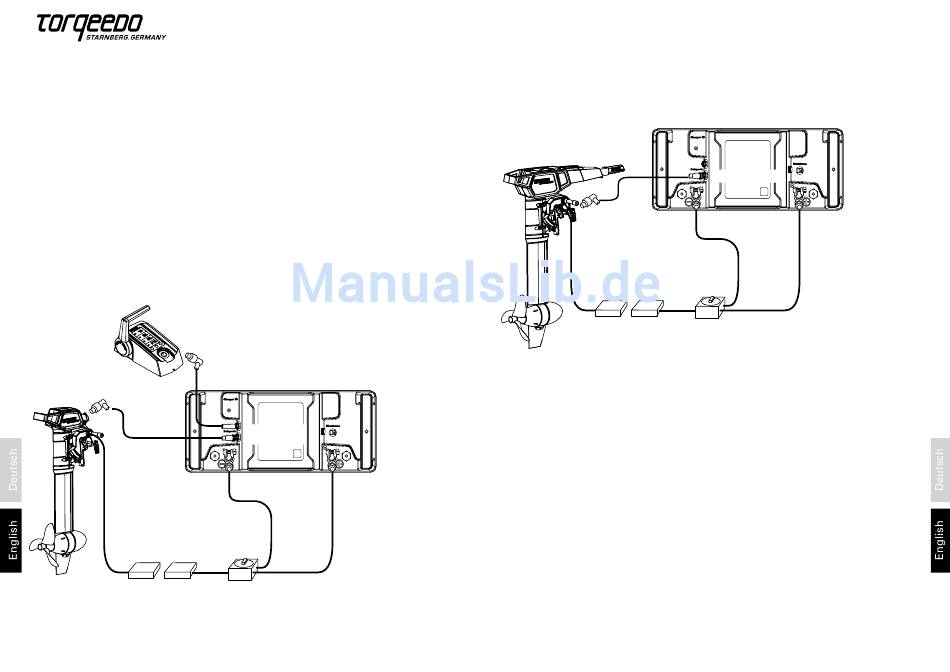

Connecting of Cruise 2.0 R
Step 2: connection of data cable 2
(scope of supply Cruise)
Step 5: connection
of high current
plug
68
Step 1: connection of data cable 1
(scope of supply Power 26-104)
data socket 1
data socket 2
negative terminal positive terminal
post post
Step 4: connection of
positive and negative
terminal posts (see
positive and negative
polarity on imprint on
battery and terminal
posts)
Step 3: switch main
switch of cable set to
"OFF"
Connecting of Cruise 2.0 T
Step 1:
connection of data cable
(plug beneath tiller)
Step 4: connection
of high current
plug
Please be aware that you need to establish communication between outboard and
battery as described in chapter 5.3.1.1.
Notes:
• Adapter cable set / Power battery is provided with a 125 A fuse. In case of shortcircuits,
fuse will cut the electrical circuit to prevent further damage.
• You may also connect several Power 26-104 to your outboard. More information please
find in operating manual of Power 26-104.
data socket
negative terminal positive terminal
post post
Step 3: connection of
positive and negative
terminal posts (see
positive and negative
polarity on imprint on
battery and terminal
posts)
Step 2: switch main
switch of cable set to
"OFF"
