OPERATION

The device has two operating modes. It can be operated via the Control Board or it can be run in DMX-
controlled mode via a DMX controller.
After you connected the effect to the mains, the LED PAR-64 Short 36x3W starts running.

Stand Alone operation

In the Stand Alone mode, the LED PAR-64 Short 36x3W can be used without controller. Disconnect the LED
PAR-64 Short 36x3W from the controller and call the internal program.
Please refer to the instructions under Control Board.

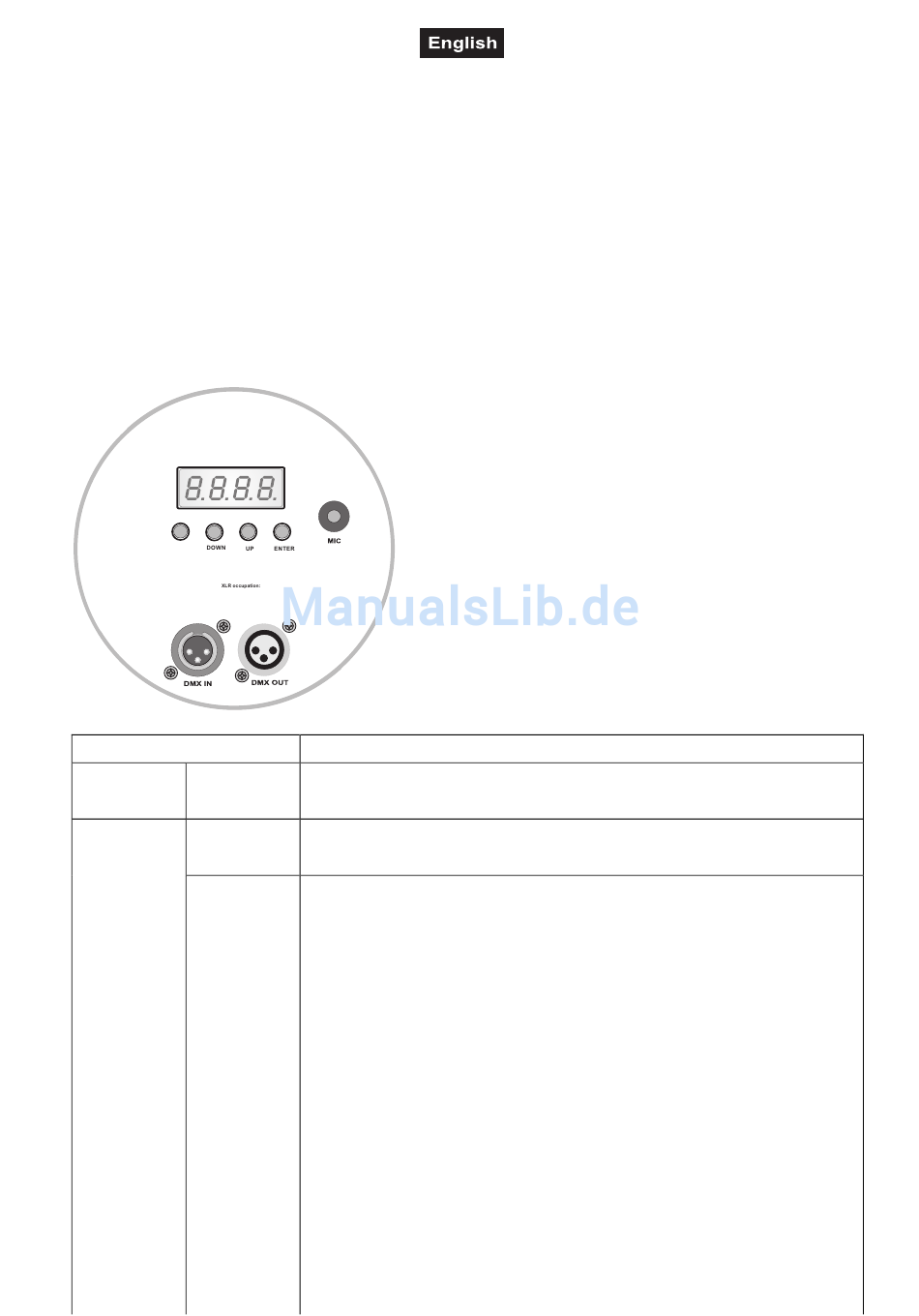

Control Board

FUN
1: Ground
2: Signal (-)
3: Signal (+)
Display
ADDR 001-506
M-DM
M-AU
MODE
The Control Board offers several features: you can e. g.
simply set the starting address.
Enter the menu by pressing the Fun-button. You can
change the selection by pressing Up or Down. Press
Enter in order to select the desired menu. You can leave
every mode by pressing the Fun-button. The functions
provided are described in the following sections.
Function
DMX address setting
With this function, you can adjust the desired DMX 512 address via the
Control Board.
DMX mode setting
the device will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the control LED will flash.
Automatic program mode
With this function, you can adjust the Auto mode.
Please note: On the rear panel of the device you can find an XLR-jack
(DMX Out) and an XLR-plug (DMX In), which can be used for connecting
several devices.
Choose the device which is to control the effects. This device then works as
master-device and controls all other slave-devices, which are to be
connected to the master-device via a balanced microphone lead. Connect
the DMX OUT-jack with the DMX IN-plug of the next device.
Set to DMX mode with DMX address 001 for all slave-devices.
