First operation
Replacement of side
broom Vee belt

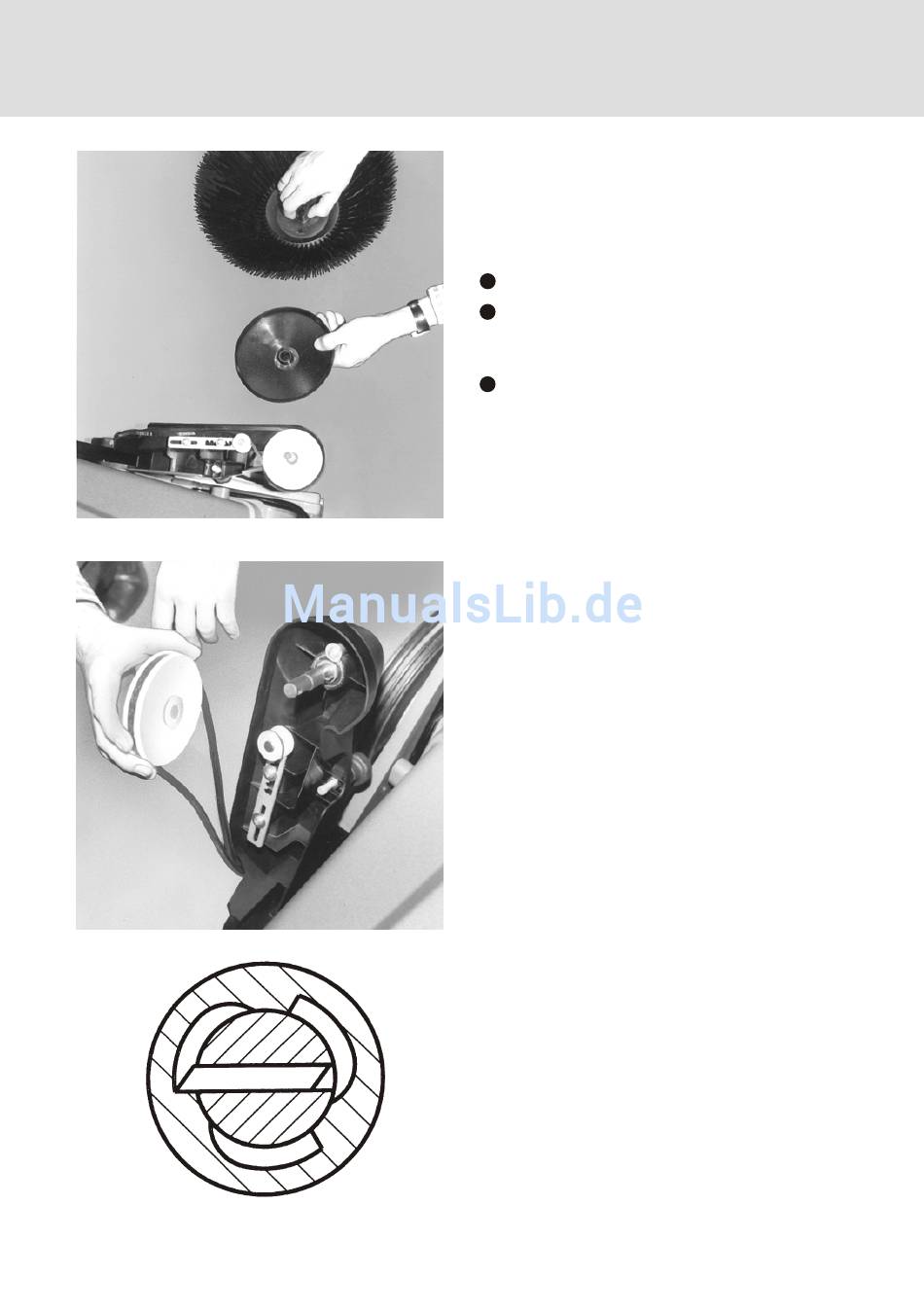

To remove or to re-install a Vee belt,
proceed in the following way:
A
Check:
Move Vee belt to the right, shaft will
have to follow, move Vee belt to the
left, shaft will have to stand still. (view
into side broom arm).
Location of key:
(bottom view, into side broom arm)
B

Sealing lips

The rubber sealing lips will avoid dust
to be expelled by the broom.
Damaged or worn-out lips will have
to be replaced.
Remove side broom
Remove washers, deflector plate
and spacers from broom shaft (fig.
A);
Remove circlip, pull washers and
pulley with Vee belt off shaft (key
should not drop out from the shaft)
Fit new Vee belt on pulley and
reassemble (reverse the above
procedure).
Note: After having assembled the
pulley, check for key in place (refer
to sketch right above).
23
