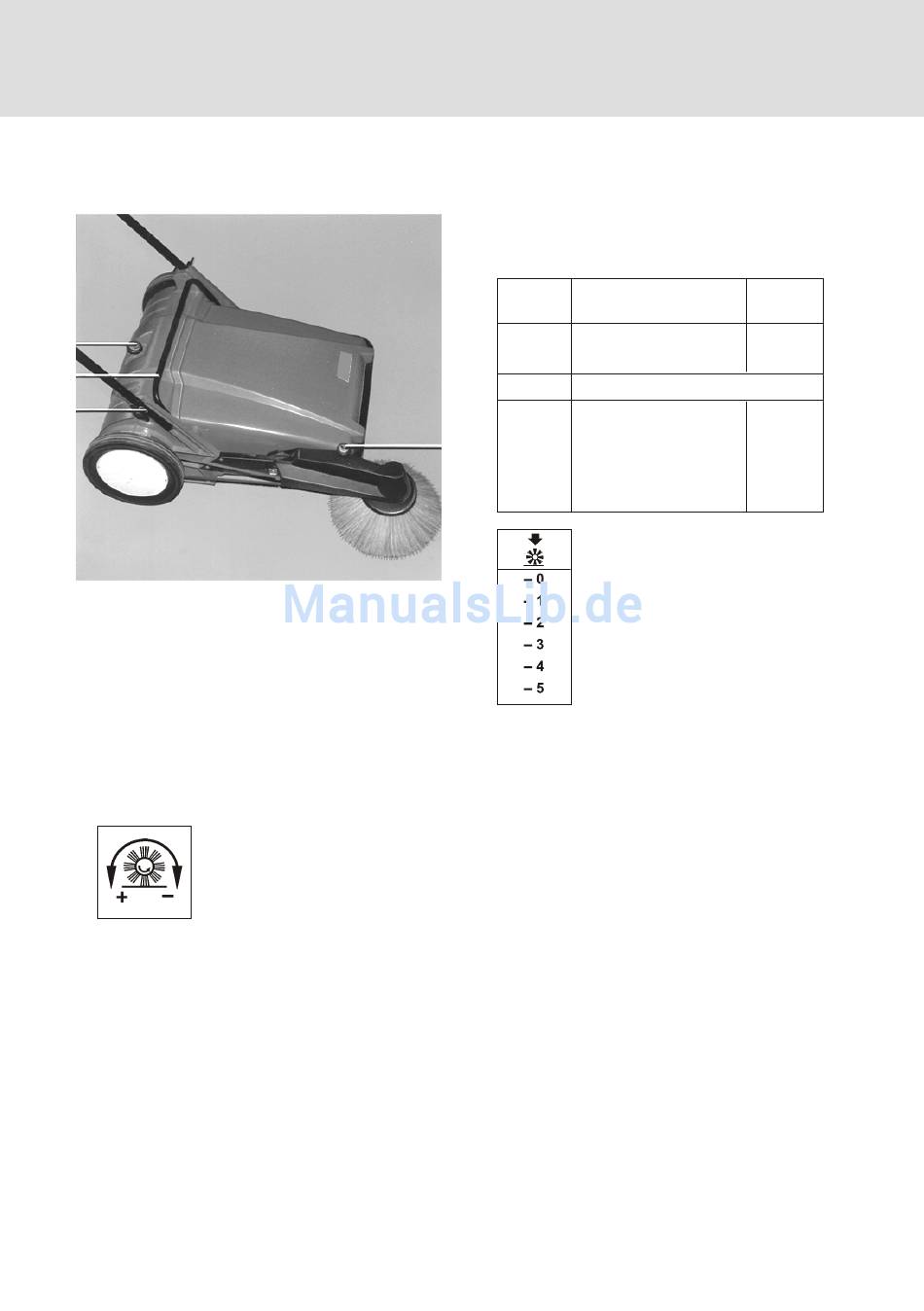

1 handwheel for sweeping roller
adjustment
2 hopper handle
3 butterfly nuts for fixing of handlebar
4 handwheel with knurled nut for side
brush adjustment

Controls

1
Handwheel for sweeping roller
adjustment
is used for adjustment of the swee-
ping roller ground pressure.
The sweeping roller ground
pressure should be adjusted as re-
commended by us, or be adapted
to local conditions, until good swee-
ping performance will be achieved.
Adjustment is indicated by the
scale close to the track wheel.
First operation
Recommended adjustment
(valid for sweeping roller in "as new"
condition)
Basic adjustment: Scale code 1,5
4
I
Note: Sweeping roller ground
pressure, if adjusted to too high a
value, requires higher physical
force to push the machine, and
increases the wear of brooms. Best
sweeping performance will be
achieved at 2.5 m.p.h. = 4 km.p.h.,
i.e. normal pedestrian´s speed.
2
3
Scale litter
code
1 light-wight,
dry litter
1,5 basic adjustment
2 heavy dirt, or big
dirt quantities;
humid or sticky
dirt
Hopper handle
is used to remove the dust hopper.
Butterfly nuts for fixing of
handlebar
are used to secure the handlebar.
ground
unruffled
rough
or
uneven
