First operation

Assembly

For reasons of packaging, handlebar
and side boom arm, to include broom
and Vee belt are not assembled. After
unpacking the KRÄNZLE 1+1, first
assemble the handlebar and the side
broom next.

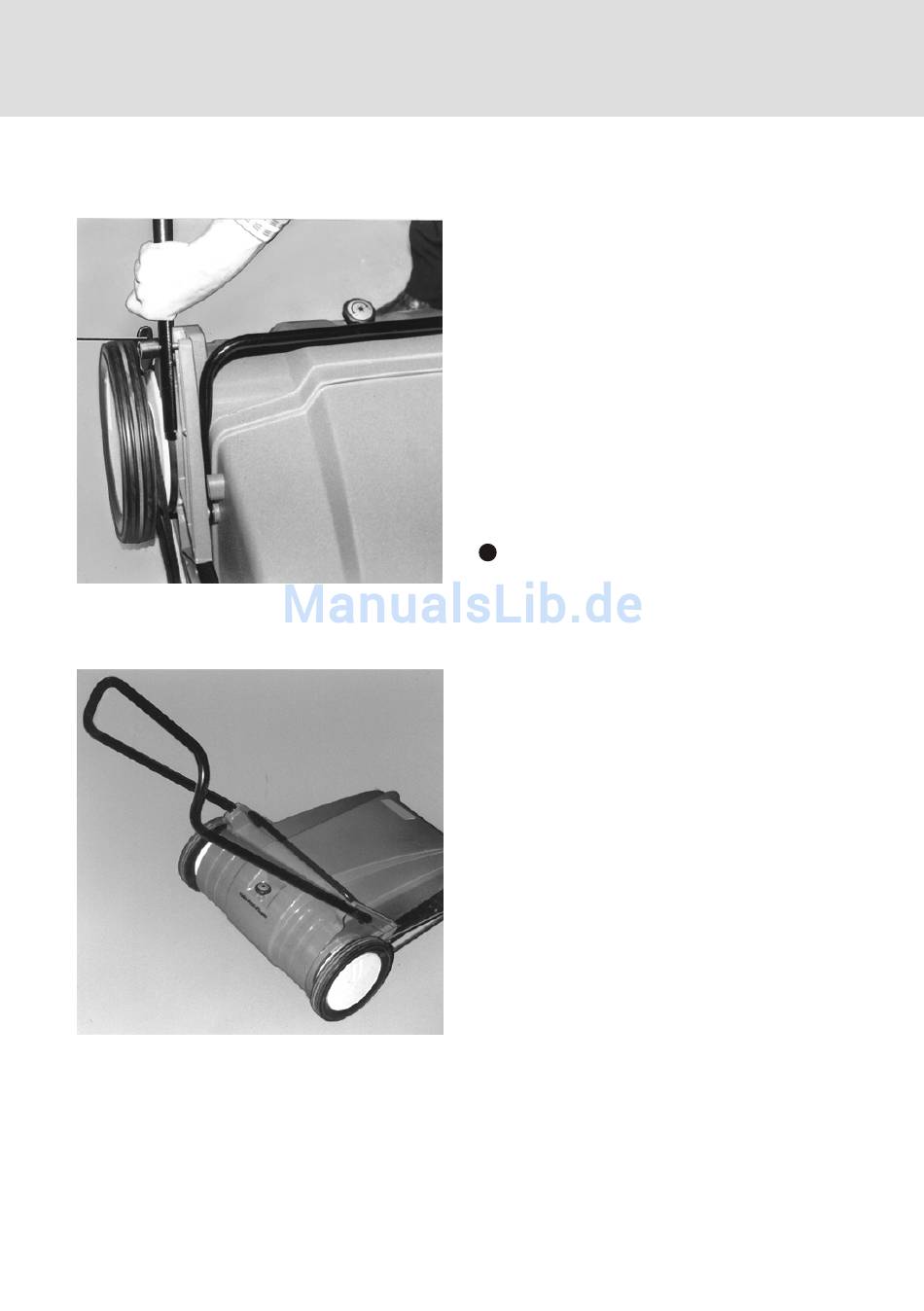

Attach handlebar

A
Note: The handlebar can be mounted
in two positions, as suitable for the
operator´s tallness.
For short people: Install the handlebar
with handle rod bent to downside.
For average and bigger tallness: Install
the handlebar with handle rod bent to the
top end.
Bolt handlebar to both sides of the
housing, use the wing bolts (A/1)
