Athena GET 2ND INJ. KIT Installationsanleitung Seite 4

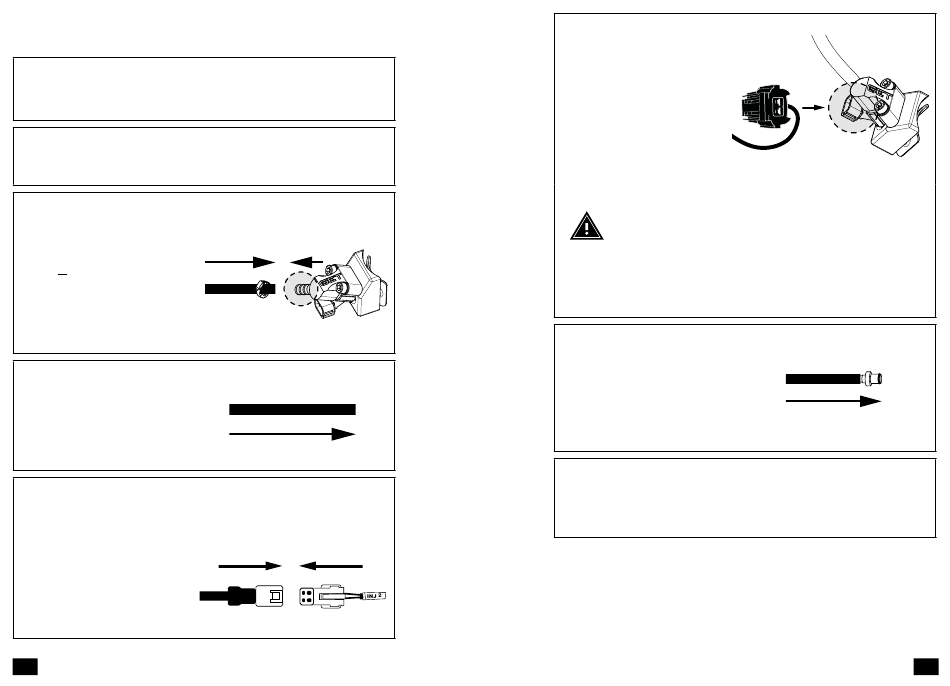

D. 2nd INJECTOR KIT INSTALLATION
1.
Re-install the manifold, which is now equipped with GET
second injector.
2.
Resume the rear subframe in the original position.
Tighten the screws.
3.
Connect the end of
the "B" hose to the fuel
rail of GET 2nd injector
using a hose clamp.
4.
Connect the end of
the OEM fuel hose to the
OEM injector.
5.
Remove the protective
cap from the "INJ2"
GET ECU connector and
plug it to the female
second injector harness
connector.
EN
To GET
2nd injector
B
OEM fuel hose
To OEM injector
Second
GET
injector
harness ECU
6
6.
Plug the male
connector of the second
injector harness to the
second injector. Fix the
wire with cable ties to
the frame in order to
keep them away from
the rear shock absorber.
ATTENTION:
Install the fuel hose and the second injector harness
in such a way as to prevent them from colliding with
the chain, the rear shock absorber, and the exhaust.
Pay attention to cutting edges.
7.
Re-install the
exhaust and the fuel
tank. Connect the end
of the "A" hose to the
fuel pump.
8.
Re-install the seat and all the other components
removed during the preparatory steps.
7
A
To the fuel pump
