Athena GET 2ND INJ. KIT Installationsanleitung Seite 3

The GET 2nd INJECTOR KIT has been developed to increase the
engine performance and supporting the stock injector. The kit
works only with GET ECUs that are "2nd Injector Ready".
MAIN GET 2nd INJECTOR KIT FEATURES:
• Power maximization
Installing a second injector allows a huge power increase. The
difference is real especially on medium and high revs.
• Injection optimization
GET kit ensures a higher power output, an improved fuel flow and
a better throttle response as well.
• Engineered and tested in GET laboratories
The kit and the maps are developed for your specific machine.
GET technicians study the OEM engine and components, design
and define the second injector position. Strict quality tests are
performed then both on dyno and on track.
C. PREPARATORY STEPS
KEEP THE ENGINE TURNED OFF AND REMEMBER TO
WORK UNDER SAFETY CONDITIONS.
MANIFOLD
1. Remove the seat, the fuel tank, and the exhaust. Loose the
screws to lift the rear subframe and pull out the fuel hose and the
manifold. Check on your motorbike's workshop manual where to
find these components.
2. Place the jig included in the box on the manifold and use it as
a template (follow the instructions on the jig).
ATTENTION: There are 2 symbols printed on the jig
indicating their direct references on the manifold.
Make sure symbols and references are aligned and
mark the points indicated by the three holes.
EN 4
ATTENTION: USE THE JIG AS A TEMPLATE, DO NOT USE IT
AS A SUPPORT FOR MILLING. DO NOT USE DRILL BITS, ONLY
USE MILLING MACHINE BITS. REMEMBER TO REMOVE ANY
RESIDUE LEFT FROM THE MILLING: THE RESIDUES CAN
DAMAGE THE ENGINE OR AFFECT ITS PERFORMANCE.
3. Remove the jig and mill the three holes.
INJECTOR ASSEMBLY
1. Assembly the second injector with the washers, the fuel rail and
the screws provided in GET kit.
ATTENTION: TO AVOID DAMAGING INJECTOR O-RING,
APPLY GREASE ON IT.

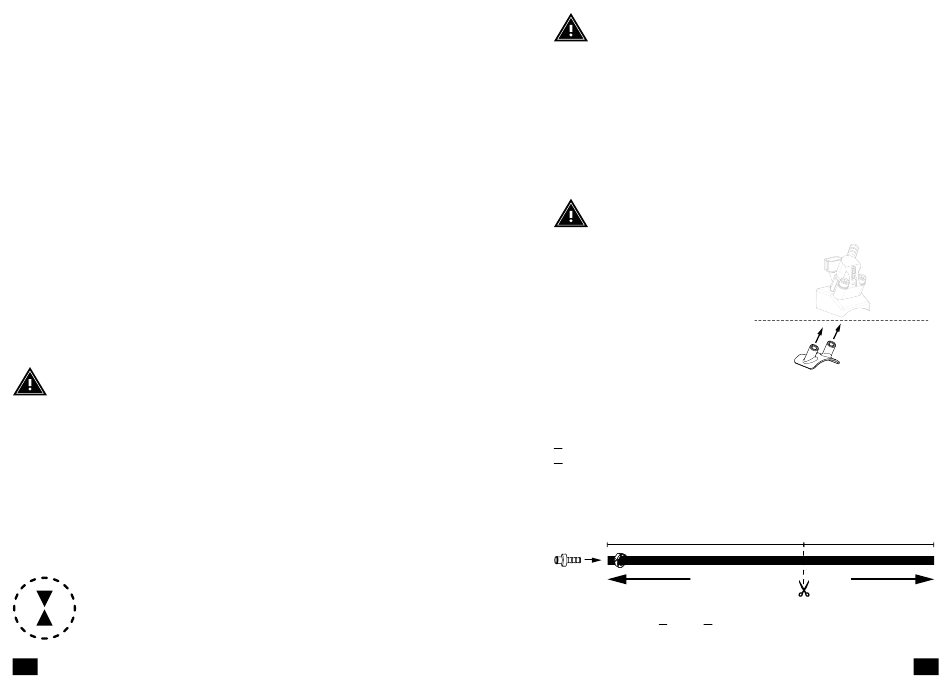

2. Insert the second injector
fixing bracket inside the
manifold and fix it to the second
injector support bracket with the
supplied screws and washers.
Seal the area with a silicone
sealant. We suggest applying
Athena's Athesil RTV silicone
sealant (not included in the box).
FUEL HOSES
1. Cut GET fuel hose to the following measures:
A (fuel pump side) = 130 mm / 5.12"
B (GET second injector side) = 70 mm / 2.76"
2. Remove the OEM fuel hose and cut off the OEM fuel pump
coupling with a cutter. Pay attention to not damage the coupling.
Insert the coupling into the A fuel hose and fix it with a hose clamp.
130 mm / 5.12"
A
To fuel pump
3. Assembly hose A, hose B and the OEM fuel hose with the 3-way
fitting included in the kit using the hose clamps provided.
Outside
Inside
70 mm / 2.76"
B
To GET 2nd injector
5 EN
