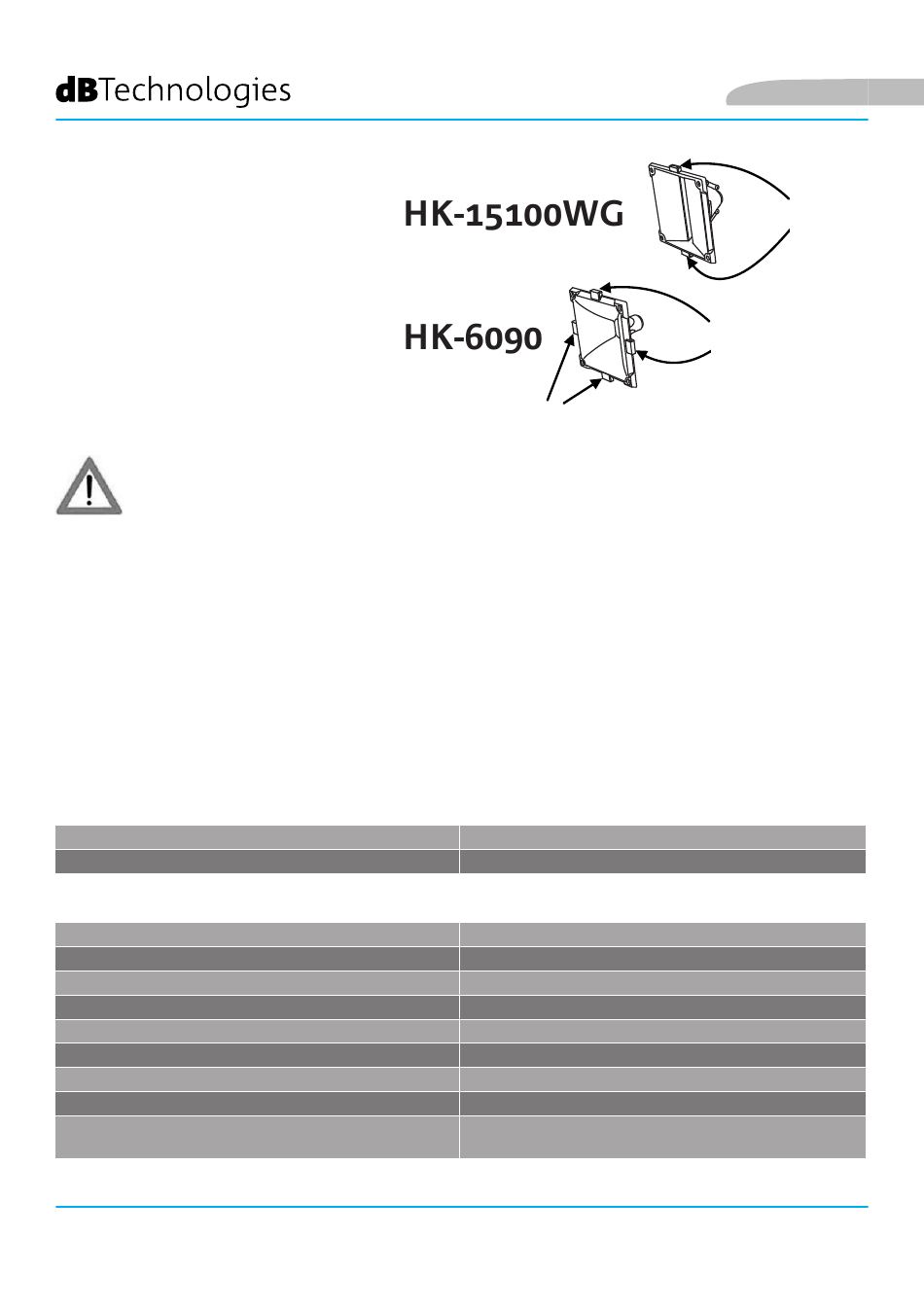

To facilitate horn installation, labels are
affixed to the sides indicating the model
and acoustic coverage of the horn, as
shown in the figures. Take care when
installing a new horn to orient it correctly.
The labels are also visible when the grille is
fitted, thus allowing the user to determine
immediately the orientation of the horn.
For further information, refer to the
manual of the accessory.
The wave guide must only be installed in the position shown in the figure for coverage of 100°x15°.

4. TROUBLESHOOTING

The speaker does not produce any sound
1. Check that the audio signal input is connected correctly
2. Check that the connection cables are not damaged
3. Check that the audio source is powered on and clearly shows an output signal

5. TECHNICAL SPECIFICATIONS

GENERAL

Type:
Protection against solid objects and liquids (IP):

ACOUSTIC DATA

Frequency response [-6 dB]:
Sensitivity:
Max SPL (@ 1m):
LF:
LF Voice Coil:
HF:
HF Voice Coil:
Crossover frequency:
Coverage (HxV):
IS26T
24
ETICHETTE
LABELS
2-way passive speaker
32
85 Hz - 20 kHz
94 dB
124 dB
2 x 6.5"
1.7"
1"
1.7"
1.2 kHz
60° x 90° (IS26T)
100° x 15° (IS26T100)
English
ETICHETTE
LABELS
ETICHETTE
LABELS
Cod. 420120377 REV. 1.0
