INSTALLATION SUSPENDED FROM EYEBOLTS

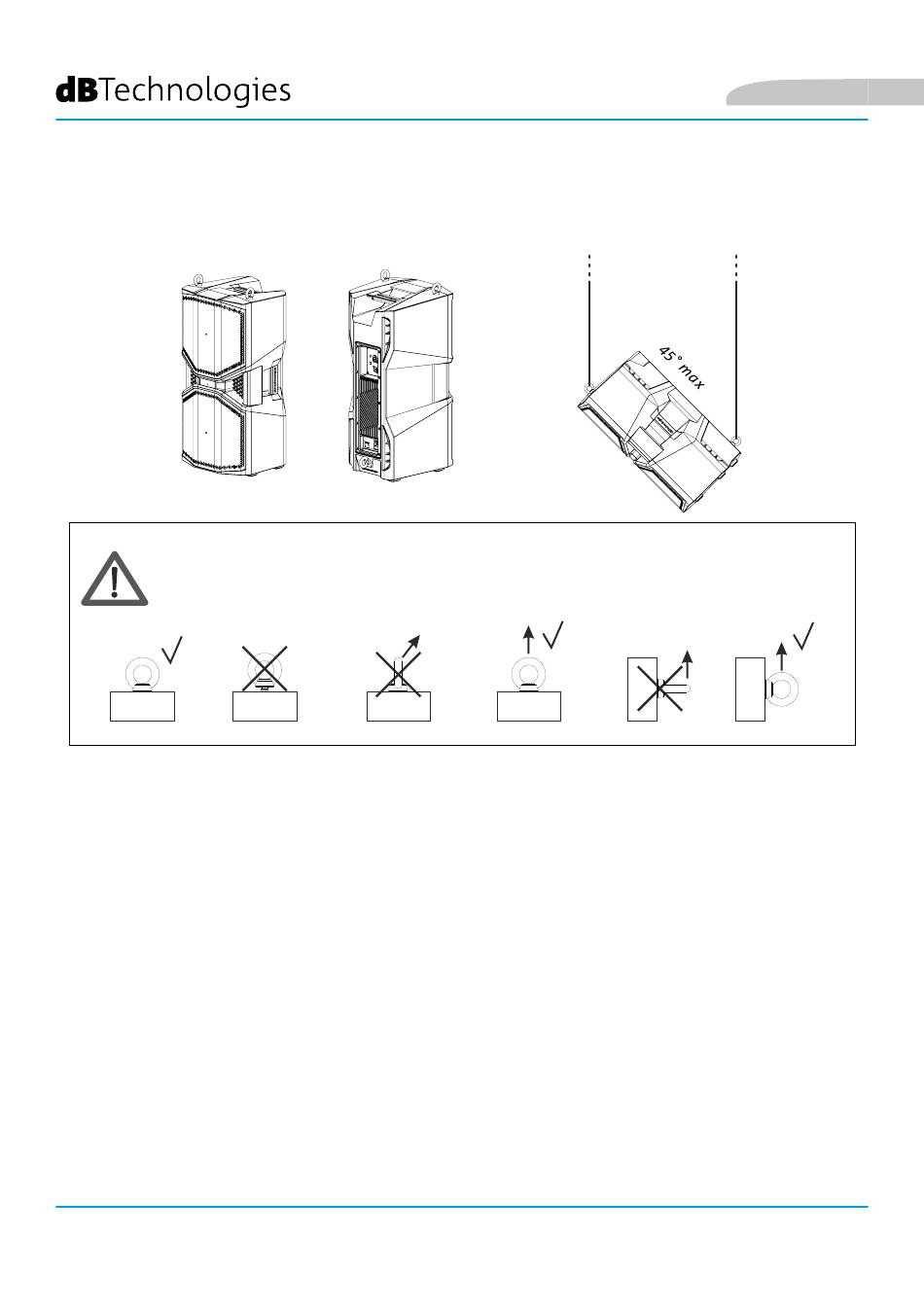

The speakers can also be suspended using eyebolts. The positioning is shown in the figure. The rear eyebolt can
be used to adjust the tilt angle (MAX 45°).
CAUTION!
• Screw in the eyebolts until the mating surface of the eyebolt is flush with the surface of
the speaker to be lifted.
• When lifting the eyebolts, always pull longitudinally, never sideways.

4. TROUBLESHOOTING

The speaker does not power up:
1. Check that the system is connected to a working power supply.
2. Check that the power cord is plugged in correctly.
3. Check the fuse. Contact the service centre if the problem persists after replacing the fuse.
The monitor turns on but does not produce any sound:
4. Check that the audio signal inputs are connected correctly, preferably using cables with Neutrik®
connectors.
5. Check that the cables used are not damaged.
6. Check that the mixer or audio source is on and clearly shows an output signal.
The sound from the monitor is distorted:
7. With the system powered on, first adjust the volume of the audio source. If the source LIMITER LED is on,
the signal may already be distorted before it reaches the speaker.
8. Check that the connection cables are not damaged. If they are, replace them (a damaged cable may cause
signal loss or alteration).
