3. INSTALLATION

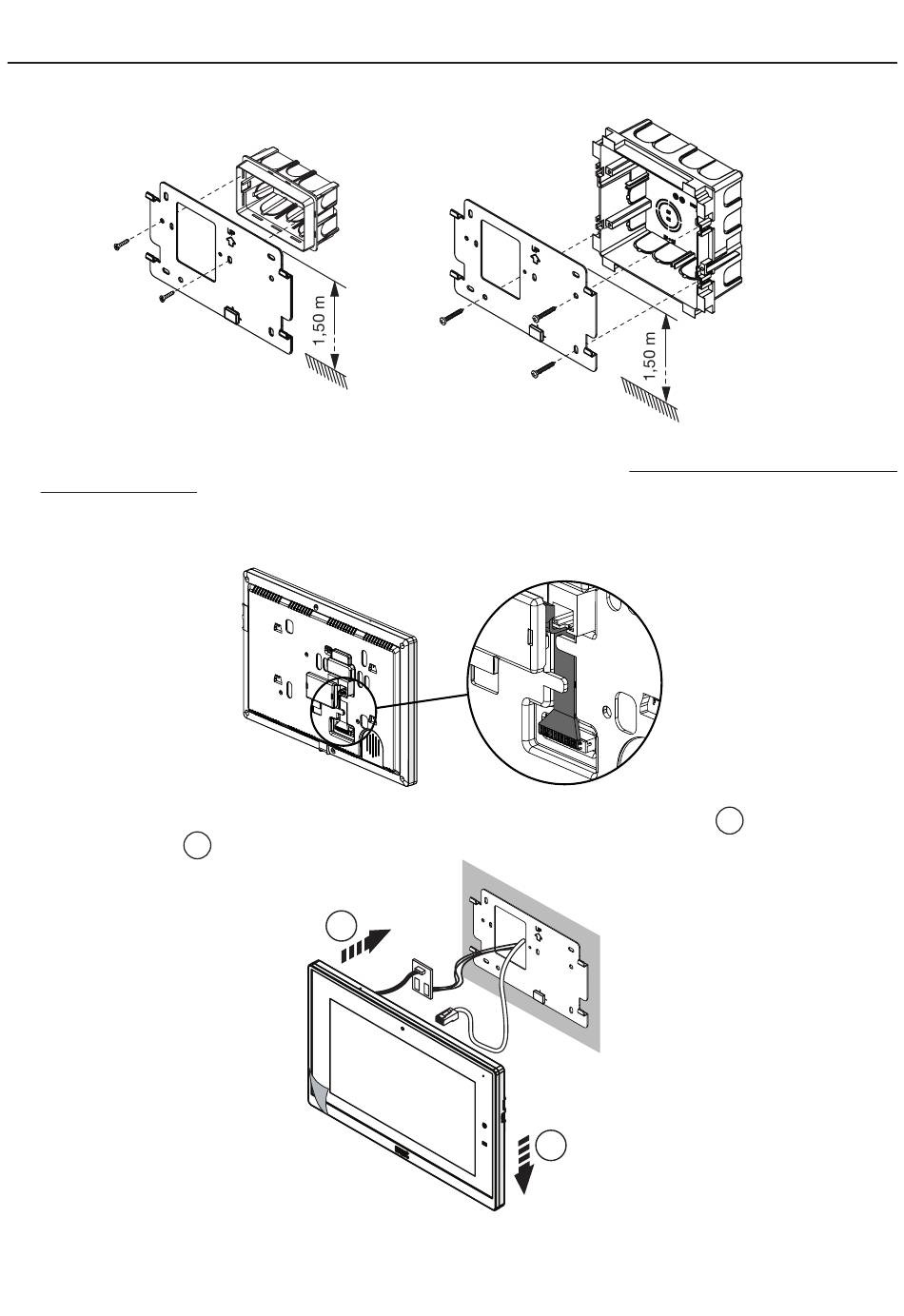

It is possible to fix the wall bracket by using a 503 box or a box Ref. 1706/60 with supplied screws.
2 M3,5 x 19 mm
provided
• Connect any panic function, extra ring tone, fl oor call, auxiliary power (if it is not connected to one POE
port of the switche) system function wires to the terminals on the external printed circuit.
• Connect the video door phone to the connector J1 on the printed circuit board via the cable provided
on the back of the video door phone.
• Place the wire in the locking slot.
• Move the video door phone close to the bracket by centring the special fixings 1 and slide it down
to reach its stop 2 .
• Remove the protective film from the display.
8
Box
503
3 3,5 x 25 mm
provided
1
Box
Ref. 1706/60
2
DS1717-072A
