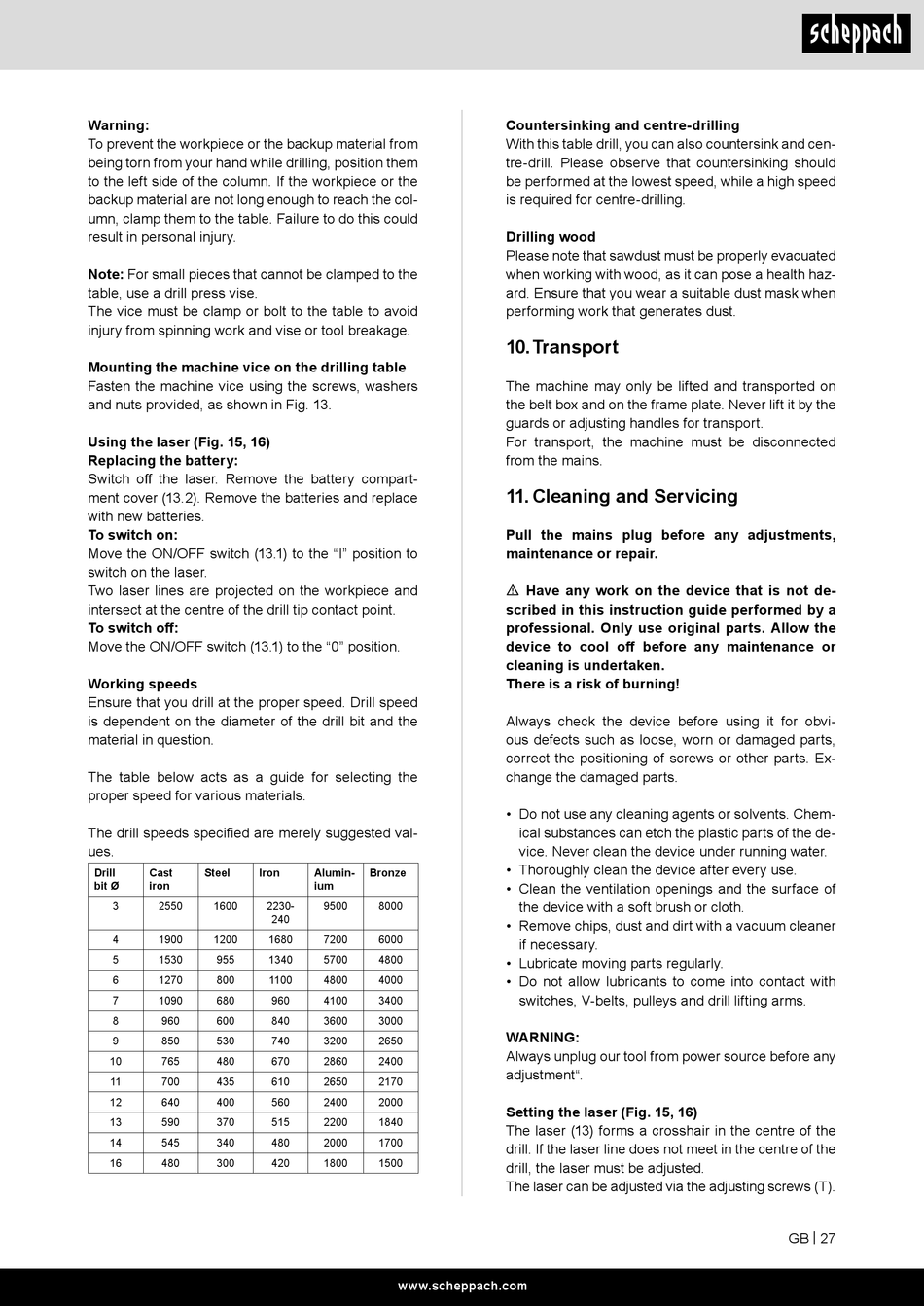

Warning:
To prevent the workpiece or the backup material from
being torn from your hand while drilling, position them
to the left side of the column. If the workpiece or the
backup material are not long enough to reach the col-
umn, clamp them to the table. Failure to do this could
result in personal injury.
Note: For small pieces that cannot be clamped to the
table, use a drill press vise.
The vice must be clamp or bolt to the table to avoid
injury from spinning work and vise or tool breakage.
Mounting the machine vice on the drilling table
Fasten the machine vice using the screws, washers
and nuts provided, as shown in Fig. 13.
Using the laser (Fig. 15, 16)
Replacing the battery:
Switch off the laser. Remove the battery compart-
ment cover (13.2). Remove the batteries and replace
with new batteries.
To switch on:
Move the ON/OFF switch (13.1) to the "I" position to
switch on the laser.
Two laser lines are projected on the workpiece and
intersect at the centre of the drill tip contact point.
To switch off:
Move the ON/OFF switch (13.1) to the "0" position.
Working speeds
Ensure that you drill at the proper speed. Drill speed
is dependent on the diameter of the drill bit and the
material in question.
The table below acts as a guide for selecting the
proper speed for various materials.
The drill speeds specified are merely suggested val-
ues.
Drill Cast Steel Iron
bit Ø iron
3 2550 1600
4 1900 1200
5 1530 955
6 1270 800
7 1090 680
8 960 600
9 850 530
10 765 480
11 700 435
12 640 400
13 590 370
14 545 340
16 480 300
Alumin- Bronze
ium
2230- 9500 8000
240
1680 7200 6000
1340 5700 4800
1100 4800 4000
960 4100 3400
840 3600 3000
740 3200 2650
670 2860 2400
610 2650 2170
560 2400 2000
515 2200 1840
480 2000 1700
420 1800 1500
www.scheppach.com
Countersinking and centre-drilling
With this table drill, you can also countersink and cen-
tre-drill. Please observe that countersinking should
be performed at the lowest speed, while a high speed
is required for centre-drilling.
Drilling wood
Please note that sawdust must be properly evacuated
when working with wood, as it can pose a health haz-
ard. Ensure that you wear a suitable dust mask when
performing work that generates dust.

10. Transport

The machine may only be lifted and transported on
the belt box and on the frame plate. Never lift it by the
guards or adjusting handles for transport.
For transport, the machine must be disconnected
from the mains.

11. Cleaning and Servicing

Pull the mains plug before any adjustments,
maintenance or repair.
m Have any work on the device that is not de-
scribed in this instruction guide performed by a
professional. Only use original parts. Allow the
device to cool off before any maintenance or
cleaning is undertaken.
There is a risk of burning!
Always check the device before using it for obvi-
ous defects such as loose, worn or damaged parts,
correct the positioning of screws or other parts. Ex-
change the damaged parts.
• Do not use any cleaning agents or solvents. Chem-
ical substances can etch the plastic parts of the de-
vice. Never clean the device under running water.
• Thoroughly clean the device after every use.
• Clean the ventilation openings and the surface of
the device with a soft brush or cloth.
• Remove chips, dust and dirt with a vacuum cleaner
if necessary.
• Lubricate moving parts regularly.
• Do not allow lubricants to come into contact with
switches, V-belts, pulleys and drill lifting arms.
WARNING:
Always unplug our tool from power source before any
adjustment".
Setting the laser (Fig. 15, 16)
The laser (13) forms a crosshair in the centre of the
drill. If the laser line does not meet in the centre of the
drill, the laser must be adjusted.
The laser can be adjusted via the adjusting screws (T).
GB | 27
