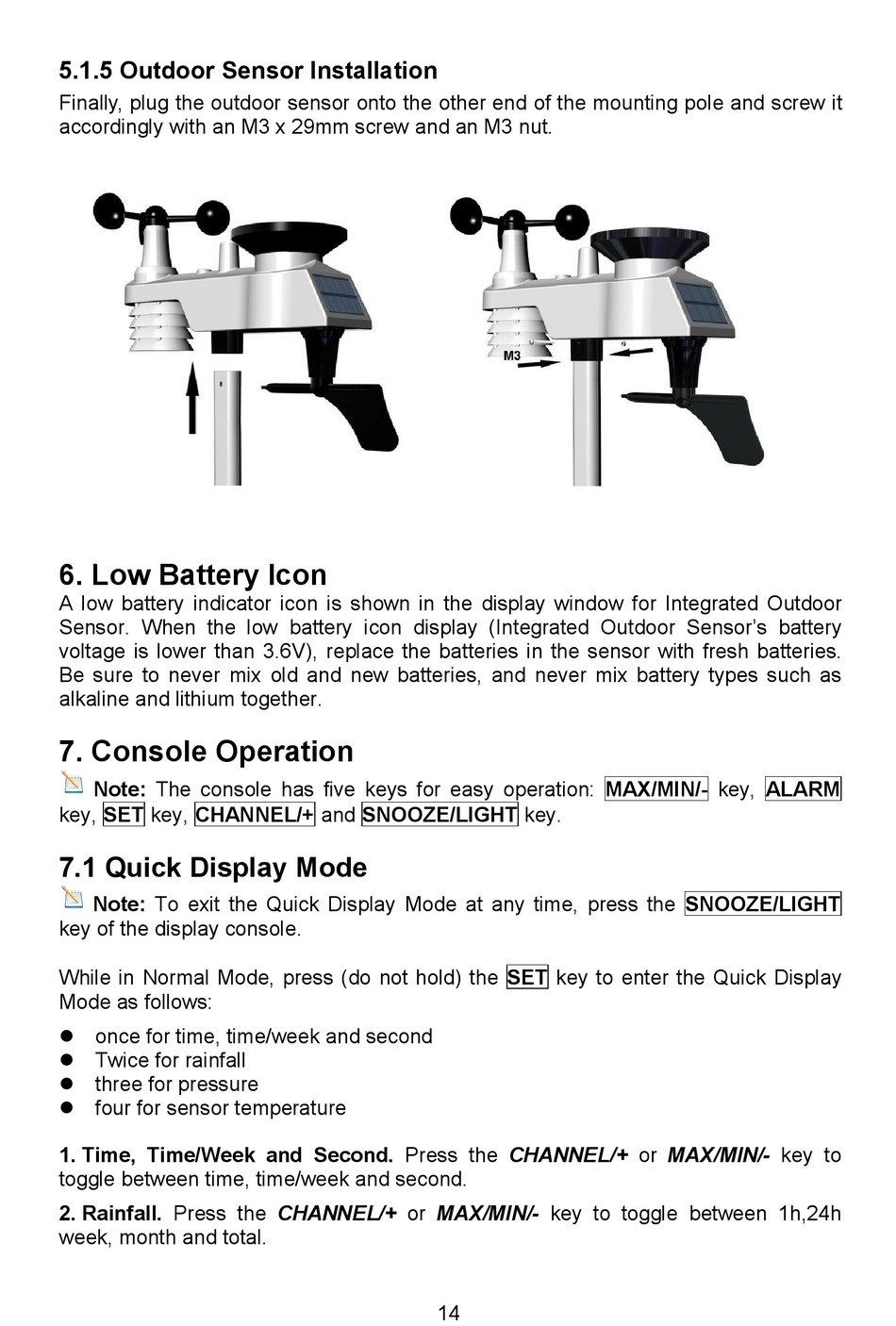

5.1.5 Outdoor Sensor Installation

Finally, plug the outdoor sensor onto the other end of the mounting pole and screw it
accordingly with an M3 x 29mm screw and an M3 nut.

6. Low Battery Icon

A low battery indicator icon is shown in the display window for Integrated Outdoor
Sensor. When the low battery icon display (Integrated Outdoor Sensor's battery
voltage is lower than 3.6V), replace the batteries in the sensor with fresh batteries.
Be sure to never mix old and new batteries, and never mix battery types such as
alkaline and lithium together.

7. Console Operation

Note: The console has five keys for easy operation: MAX/MIN/- key, ALARM
key, SET key, CHANNEL/+ and SNOOZE/LIGHT key.

7.1 Quick Display Mode

Note: To exit the Quick Display Mode at any time, press the SNOOZE/LIGHT
key of the display console.
While in Normal Mode, press (do not hold) the SET key to enter the Quick Display
Mode as follows:
 once for time, time/week and second
 Twice for rainfall
 three for pressure
 four for sensor temperature
1. Time, Time/Week and Second. Press the CHANNEL/+ or MAX/MIN/- key to
toggle between time, time/week and second.
2. Rainfall. Press the CHANNEL/+ or MAX/MIN/- key to toggle between 1h,24h
week, month and total.
14
