5.1.3 Mounting Foot Installation

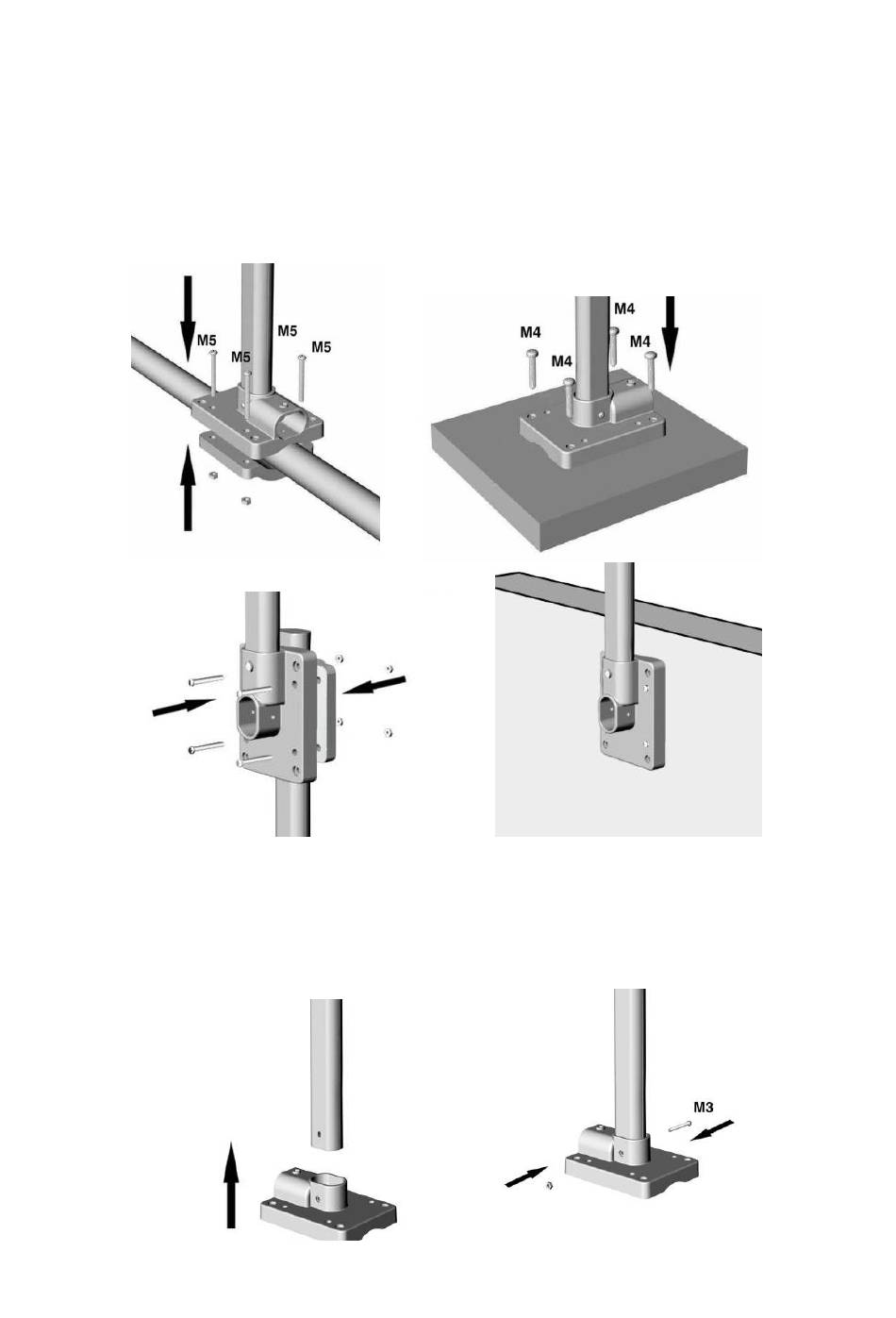

After locate the correct direction, than start to fix the mounting foot.
First mount the mounting foot on a flat, as small as possible (so as not to falsify the
measured values) surface.
Alternatively, you can also use the four M5 x 49mm screws and M5 nuts supplied to
attach the mounting base to an existing pipe together with the rear mounting plate, or
fix it on the wall with four M4 universal screw.

5.1.4 Mounting Pole Installation

Then insert the mounting pole into the corresponding receptacle on the mounting
bracket. Screw both with a screw M3 x 29mm and a matching M3 nut.
