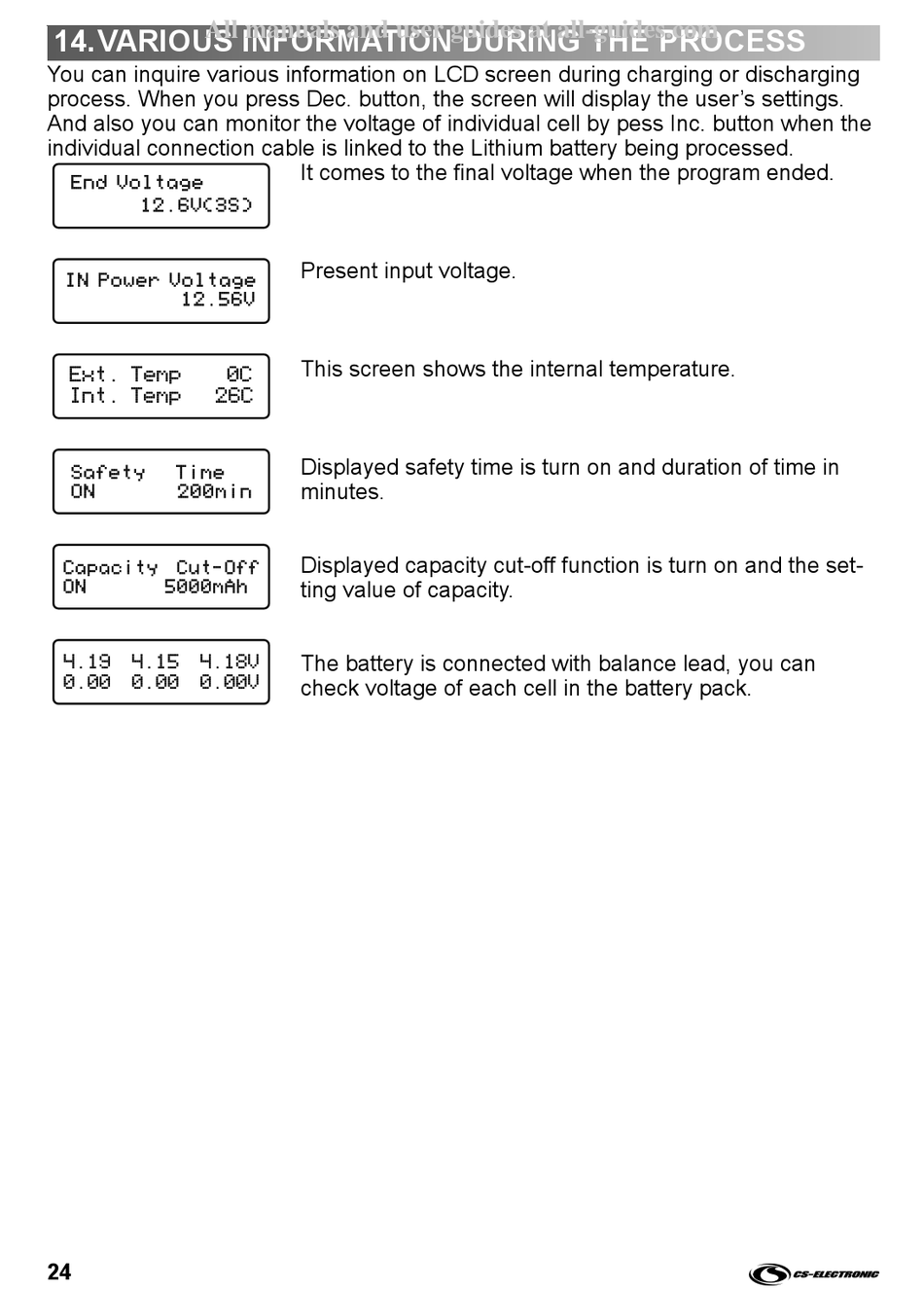

14. VARIOUS INFORMATION DURING THE PROCESS

You can inquire various information on LCD screen during charging or discharging
process. When you press Dec. button, the screen will display the user's settings.
And also you can monitor the voltage of individual cell by pess Inc. button when the
individual connection cable is linked to the Lithium battery being processed.
Ext. Temp
Int. Temp 26C
4.19 4.15 4.18V
0.00 0.00 0.00V
24
It comes to the final voltage when the program ended.
Present input voltage.
This screen shows the internal temperature.
0C
Displayed safety time is turn on and duration of time in
minutes.
Displayed capacity cut-off function is turn on and the set-
ting value of capacity.
The battery is connected with balance lead, you can
check voltage of each cell in the battery pack.
