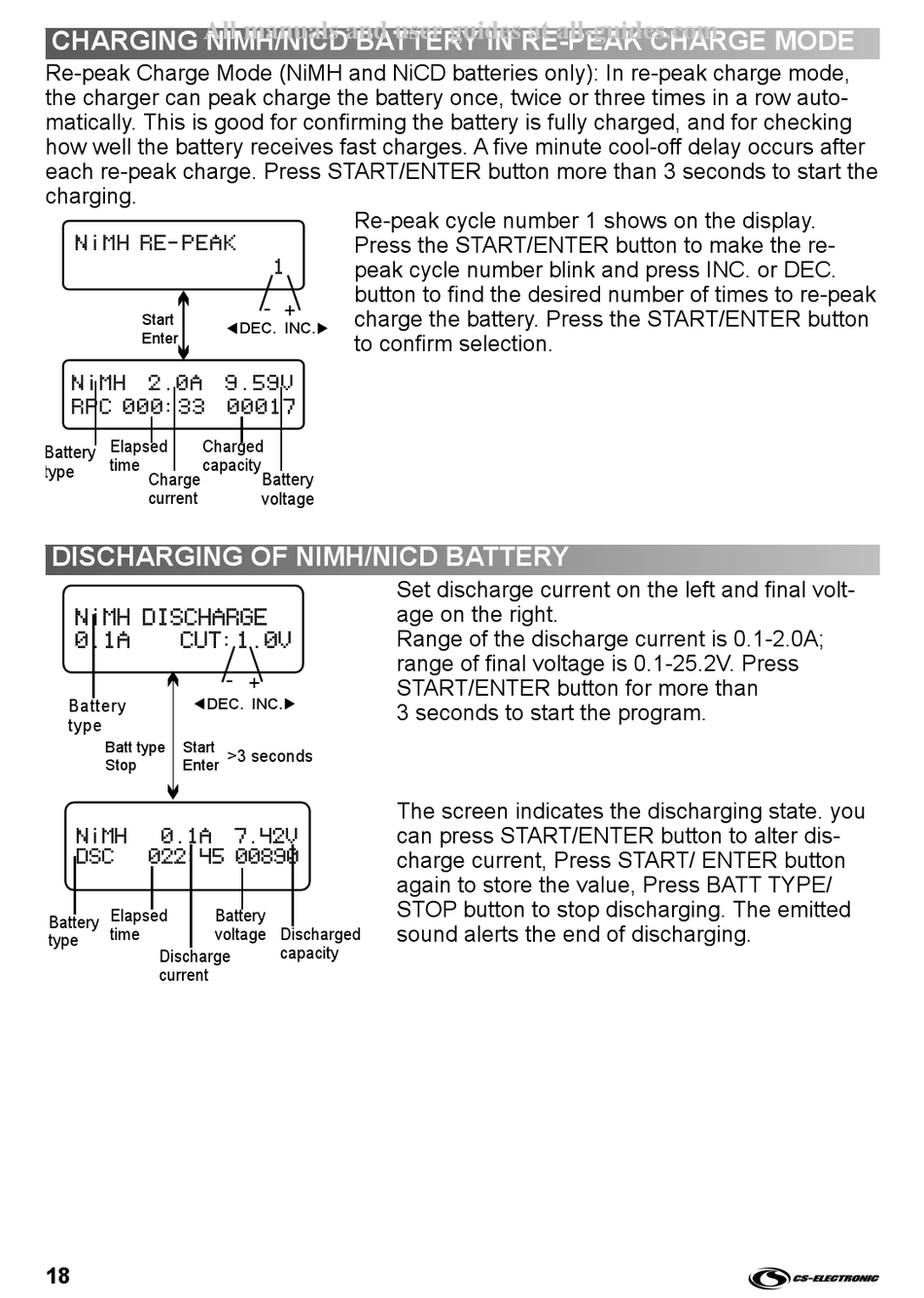

CHARGING NIMH/NICD BATTERY IN RE-PEAK CHARGE MODE

Re-peak Charge Mode (NiMH and NiCD batteries only): In re-peak charge mode,
the charger can peak charge the battery once, twice or three times in a row auto-
matically. This is good for confirming the battery is fully charged, and for checking
how well the battery receives fast charges. A five minute cool-off delay occurs after
each re-peak charge. Press START/ENTER button more than 3 seconds to start the
charging.
N i M H R E - P E A K
Start
Enter
N i M H 2 . 0 A
R P C 0 0 0 : 3 3
Charged
Elapsed
Battery
capacity
time
type
Charge
current
DISCHARGING OF NIMH/NICD BATTERY
NiMH DISCHARGE
0.1A CUT:1.0V
DEC. INC.
Battery
type
Batt type Start
Stop Enter
NiMH 0.1A
DSC 022:45 00890
Elapsed Battery
Battery
time voltage
type
Discharge
current
18
Re-peak cycle number 1 shows on the display.
Press the START/ENTER button to make the re-
peak cycle number blink and press INC. or DEC.
1
button to find the desired number of times to re-peak
- +
charge the battery. Press the START/ENTER button
DEC. INC.
to confirm selection.
9 . 5 9 V
0 0 0 1 7
Battery
voltage
Set discharge current on the left and final volt-
age on the right.
Range of the discharge current is 0.1-2.0A;
range of final voltage is 0.1-25.2V. Press
- +
START/ENTER button for more than
3 seconds to start the program.
>3 seconds
The screen indicates the discharging state. you
can press START/ENTER button to alter dis-
7.42V
charge current, Press START/ ENTER button
again to store the value, Press BATT TYPE/
STOP button to stop discharging. The emitted
sound alerts the end of discharging.
Discharged
capacity
