'FAST' CHARGING OF LITHIUM BATTERY
Charging current will drop towards the end of charging, a specific CV process is
reduced to the charging process earlier. In fact, the charging current reach 1/5 when
the charging process comes to 1/10 during CV period, charging capacity is a little
smaller than normal charging but charging time is shorted accordingly.
-
+
DEC. INC. DEC. INC.
Batt type Start
Stop Enter
Start
Enter
Charging Supplied
Number
time capacity
of
Charge
cells
current

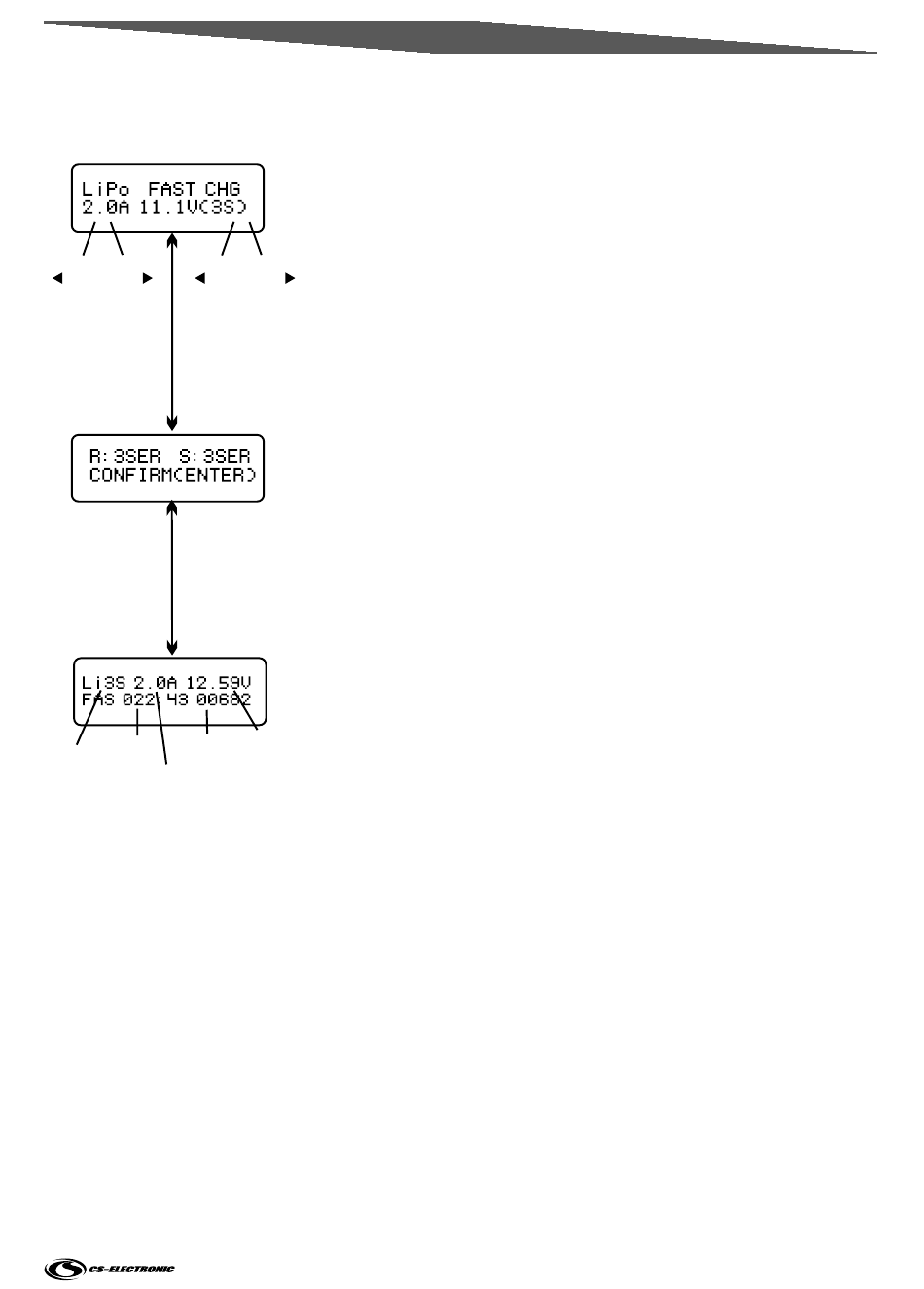

The value on the left side of the second lines shows
the charge current. The value on the right side of the
second lines shows the battery pack's voltage. After
setting current and voltage, press the START/ENTER
-
+
button for more than 3 seconds to start the process.
This displays the number of cells you set up and the
processor detects.
>3 seconds
R=Number of cells detected by charger. S=Number
of cells set by you at the previous screen.
LITHIUM BATTERY(LiPo/LiFe/LiIon)PROGRAM
If both numbers are identical you can start charging
process. If not, press button to go back to previous
screen to recheck the number of cells of the battery
pack before going ahead.
This screen shows the real-time status during charge
process. Press button once to stop the charge pro-
cess.
Current
voltage
battery
