Start
>3 seconds
Enter
All manuals and user guides at all-guides.com
BATT MEMORY【1】
LiPo 7.4V(2S)
Next flash
BATT MEMORY【1】
C:4.9A D:2.2A
ENTER CHARGER
LOAD⋯ ⋯

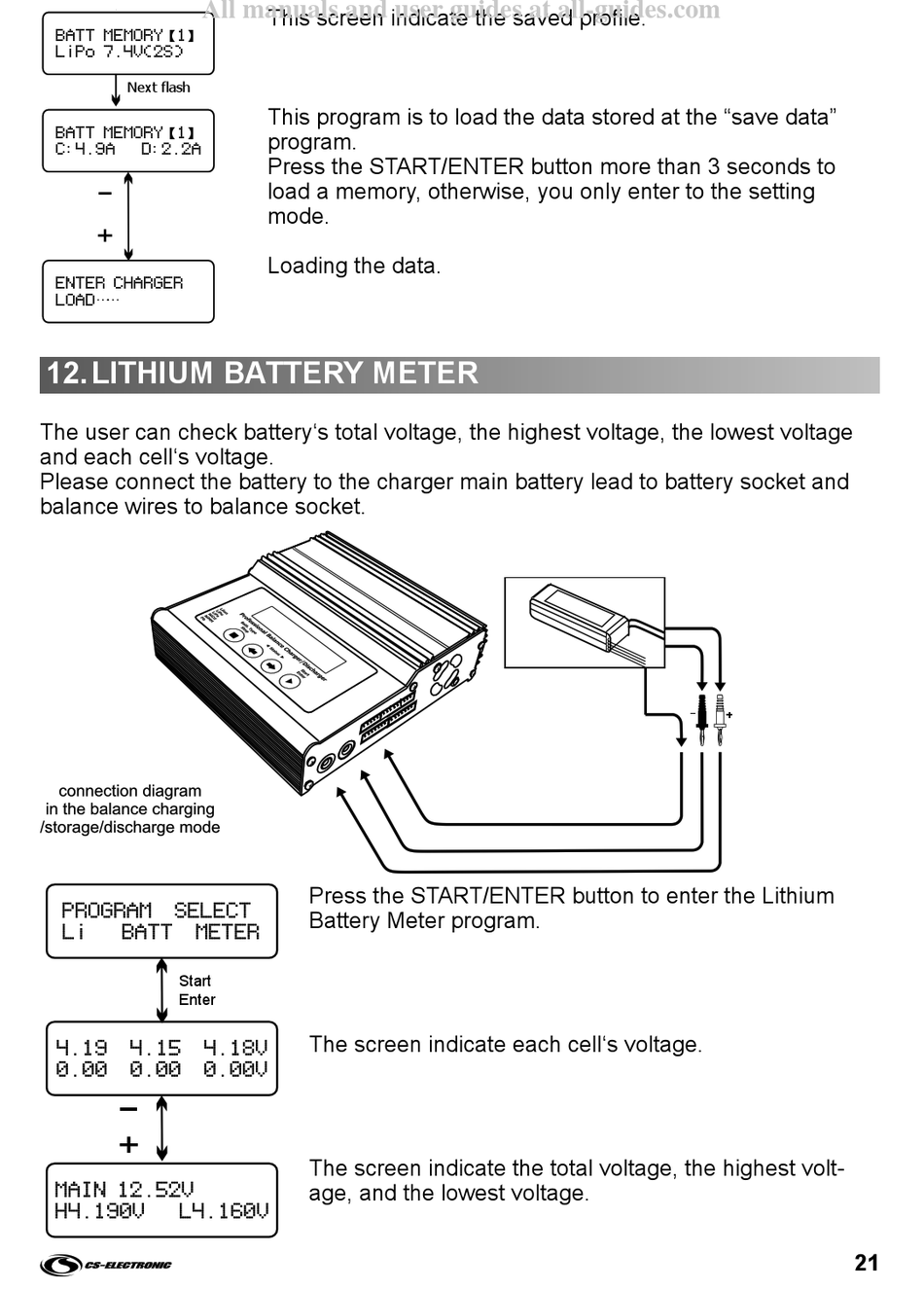

12. LITHIUM BATTERY METER

The user can check battery's total voltage, the highest voltage, the lowest voltage
and each cell's voltage.
Please connect the battery to the charger main battery lead to battery socket and
balance wires to balance socket.
PROGRAM SELECT
Li BATT METER
Start
Enter
4.19 4.15 4.18V
0.00 0.00 0.00V
MAIN 12.52V
H4.190V L4.160V
This screen indicate the saved profile.
This program is to load the data stored at the "save data"
program.
Press the START/ENTER button more than 3 seconds to
load a memory, otherwise, you only enter to the setting
mode.
Loading the data.
Press the START/ENTER button to enter the Lithium
Battery Meter program.
The screen indicate each cell's voltage.
The screen indicate the total voltage, the highest volt-
age, and the lowest voltage.
21
