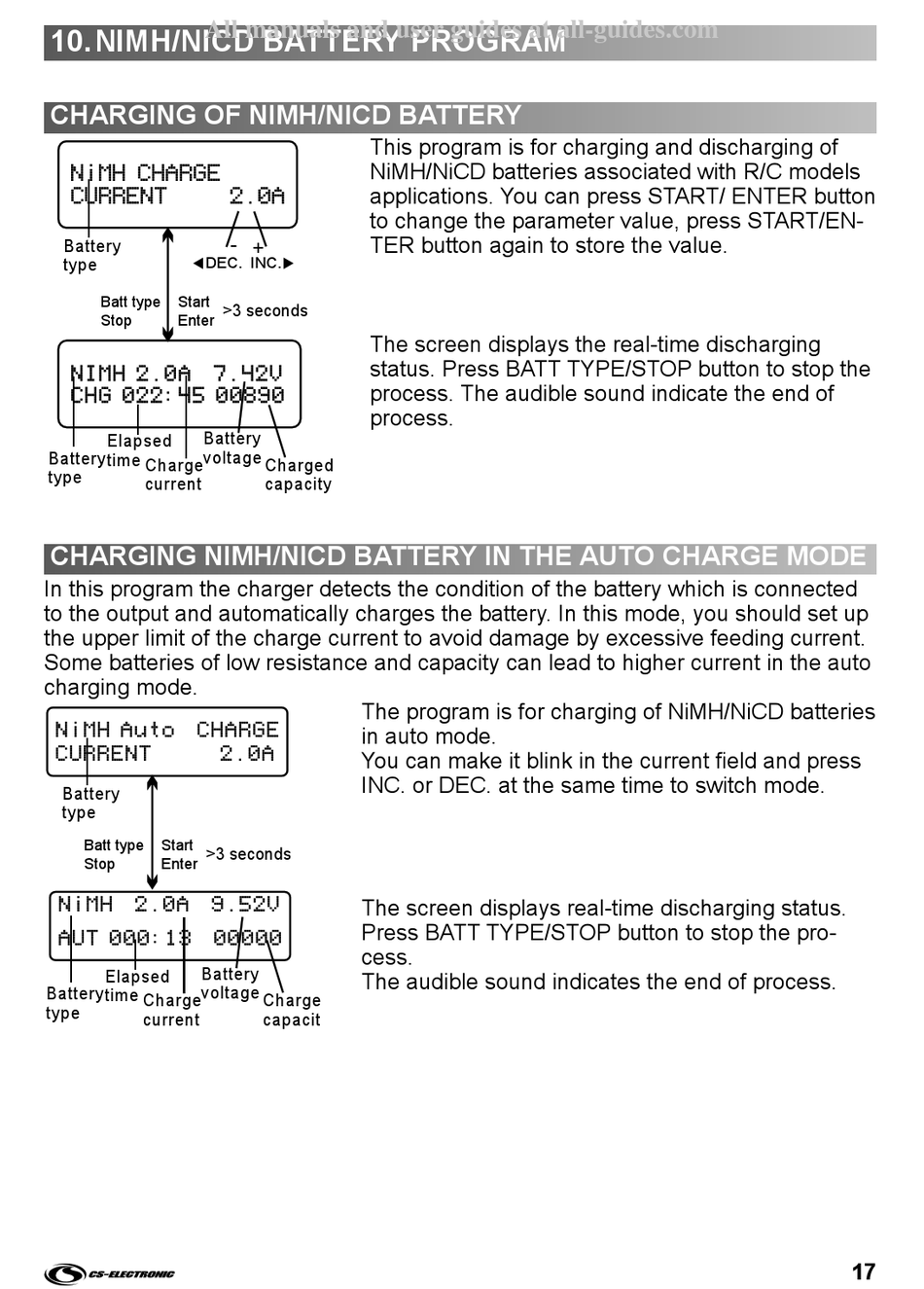

10. NIMH/NICD BATTERY PROGRAM

CHARGING OF NIMH/NICD BATTERY
NiMH CHARGE
CURRENT
Battery
DEC. INC.
type
Batt type Start
Stop Enter
Battery
Elapsed
voltage
Battery
time
Charge
type
current

CHARGING NIMH/NICD BATTERY IN THE AUTO CHARGE MODE

In this program the charger detects the condition of the battery which is connected
to the output and automatically charges the battery. In this mode, you should set up
the upper limit of the charge current to avoid damage by excessive feeding current.
Some batteries of low resistance and capacity can lead to higher current in the auto
charging mode.
N i M H A u t o C H A R G E
C U R R E N T
Battery
type
Batt type Start
>3 seconds
Stop Enter
N i M H 2 . 0 A 9 . 5 2 V
A U T 0 0 0 : 1 3 0 0 0 0 0
Battery
Elapsed
voltage
Battery
time
Charge
type
current
This program is for charging and discharging of
NiMH/NiCD batteries associated with R/C models
applications. You can press START/ ENTER button
2.0A
to change the parameter value, press START/EN-
- + TER button again to store the value.
>3 seconds
The screen displays the real-time discharging
status. Press BATT TYPE/STOP button to stop the
process. The audible sound indicate the end of
process.
Charged
capacity
The program is for charging of NiMH/NiCD batteries
in auto mode.
2 . 0 A You can make it blink in the current field and press
INC. or DEC. at the same time to switch mode.
The screen displays real-time discharging status.
Press BATT TYPE/STOP button to stop the pro-
cess.
The audible sound indicates the end of process.
Charge
capacit
