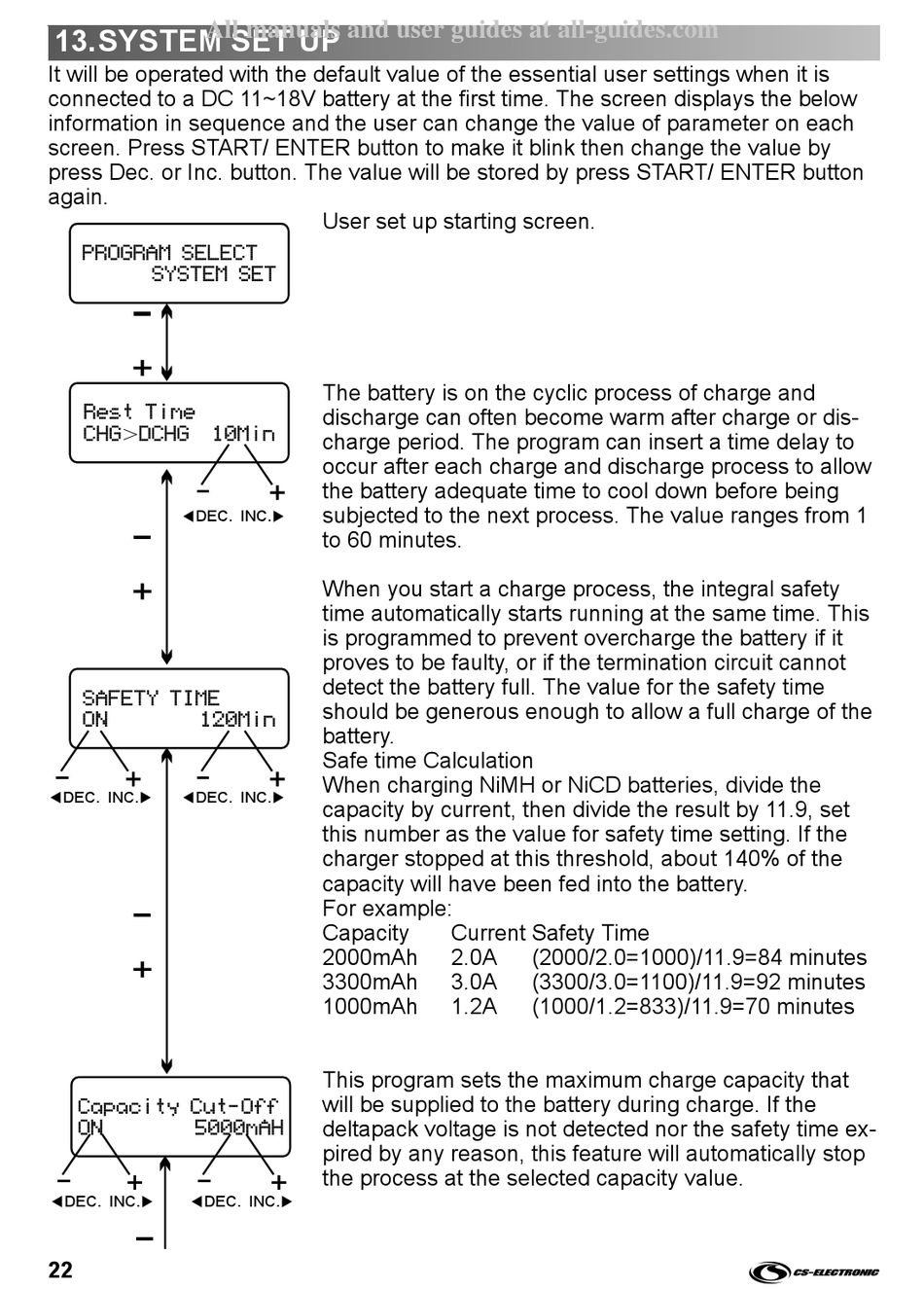

13. SYSTEM SET UP

It will be operated with the default value of the essential user settings when it is
connected to a DC 11~18V battery at the first time. The screen displays the below
information in sequence and the user can change the value of parameter on each
screen. Press START/ ENTER button to make it blink then change the value by
press Dec. or Inc. button. The value will be stored by press START/ ENTER button
again.
PROGRAM SELECT
SYSTEM SET
Rest Time
CHG＞DCHG 10Min
DEC. INC.
SAFETY TIME
ON 120Min
DEC. INC. DEC. INC.
Capacity Cut-Off
ON 5000mAH
DEC. INC. DEC. INC.
22
User set up starting screen.
The battery is on the cyclic process of charge and
discharge can often become warm after charge or dis-
charge period. The program can insert a time delay to
occur after each charge and discharge process to allow
the battery adequate time to cool down before being
subjected to the next process. The value ranges from 1
to 60 minutes.
When you start a charge process, the integral safety
time automatically starts running at the same time. This
is programmed to prevent overcharge the battery if it
proves to be faulty, or if the termination circuit cannot
detect the battery full. The value for the safety time
should be generous enough to allow a full charge of the
battery.
Safe time Calculation
When charging NiMH or NiCD batteries, divide the
capacity by current, then divide the result by 11.9, set
this number as the value for safety time setting. If the
charger stopped at this threshold, about 140% of the
capacity will have been fed into the battery.
For example:
Capacity Current Safety Time
2000mAh 2.0A
3300mAh 3.0A
1000mAh 1.2A
This program sets the maximum charge capacity that
will be supplied to the battery during charge. If the
deltapack voltage is not detected nor the safety time ex-
pired by any reason, this feature will automatically stop
the process at the selected capacity value.
(2000/2.0=1000)/11.9=84 minutes
(3300/3.0=1100)/11.9=92 minutes
(1000/1.2=833)/11.9=70 minutes
