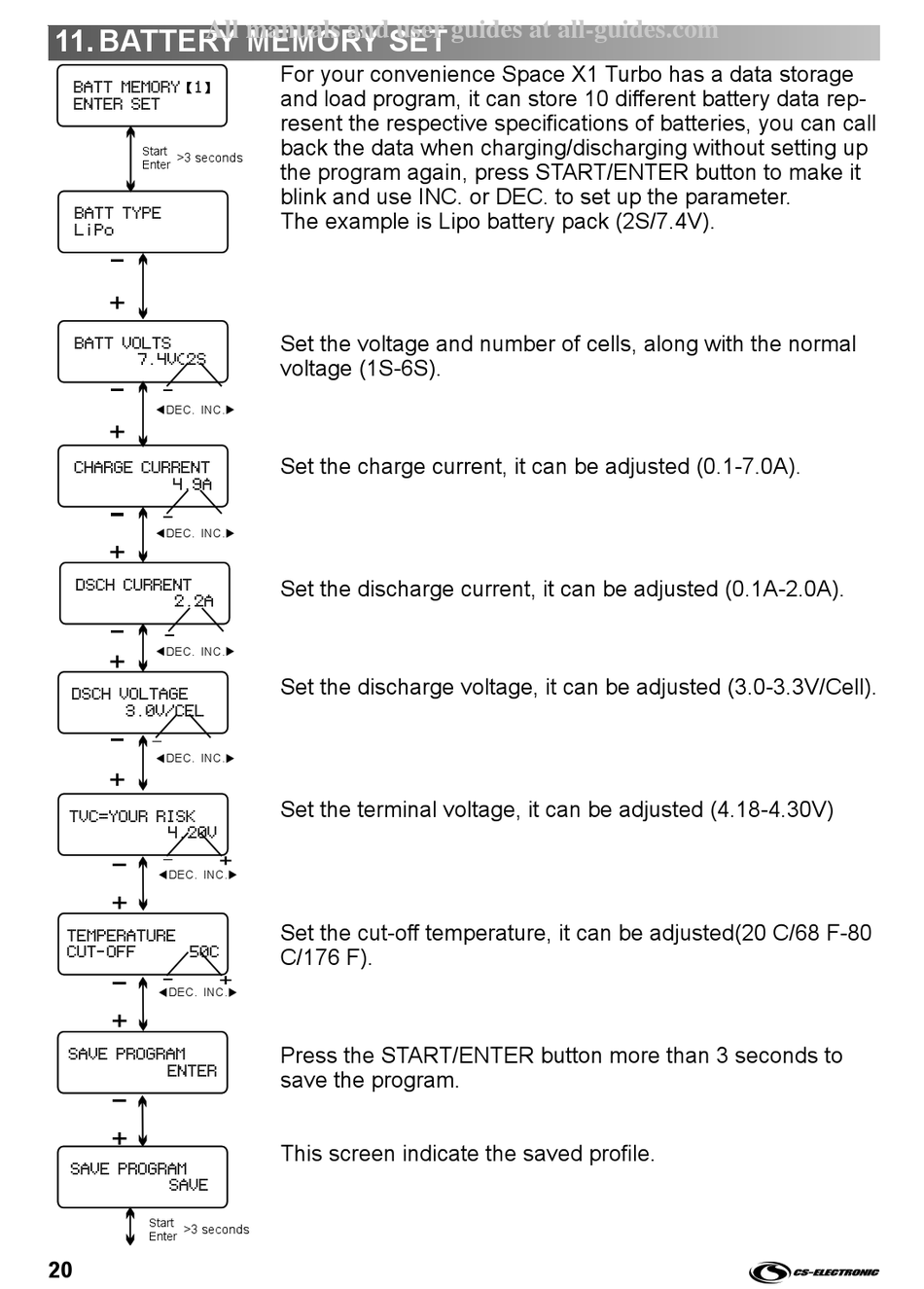

11. BATTERY MEMORY SET

BATT MEMORY【1】
ENTER SET
Start
>3 seconds
Enter
BATT TYPE
LiPo
BATT VOLTS
7.4V(2S
DEC. INC.
CHARGE CURRENT
4.9A
DEC. INC.
DSCH CURRENT
2.2A
DEC. INC.
DSCH VOLTAGE
3.0V/CEL
DEC. INC.
TVC=YOUR RISK
4.20V
DEC. INC.
TEMPERATURE
CUT-OFF 50C
DEC. INC.
SAVE PROGRAM
ENTER
SAVE PROGRAM
SAVE
Start
>3 seconds
Enter
20
BATT MEMORY【1】
LiPo 7.4V(2S)
For your convenience Space X1 Turbo has a data storage
and load program, it can store 10 different battery data rep-
resent the respective specifications of batteries, you can call
back the data when charging/discharging without setting up
the program again, press START/ENTER button to make it
blink and use INC. or DEC. to set up the parameter.
The example is Lipo battery pack (2S/7.4V).
Set the voltage and number of cells, along with the normal
voltage (1S-6S).
Set the charge current, it can be adjusted (0.1-7.0A).
Set the discharge current, it can be adjusted (0.1A-2.0A).
Set the discharge voltage, it can be adjusted (3.0-3.3V/Cell).
Set the terminal voltage, it can be adjusted (4.18-4.30V)
Set the cut-off temperature, it can be adjusted(20 C/68 F-80
C/176 F).
Press the START/ENTER button more than 3 seconds to
save the program.
This screen indicate the saved profile.
