8

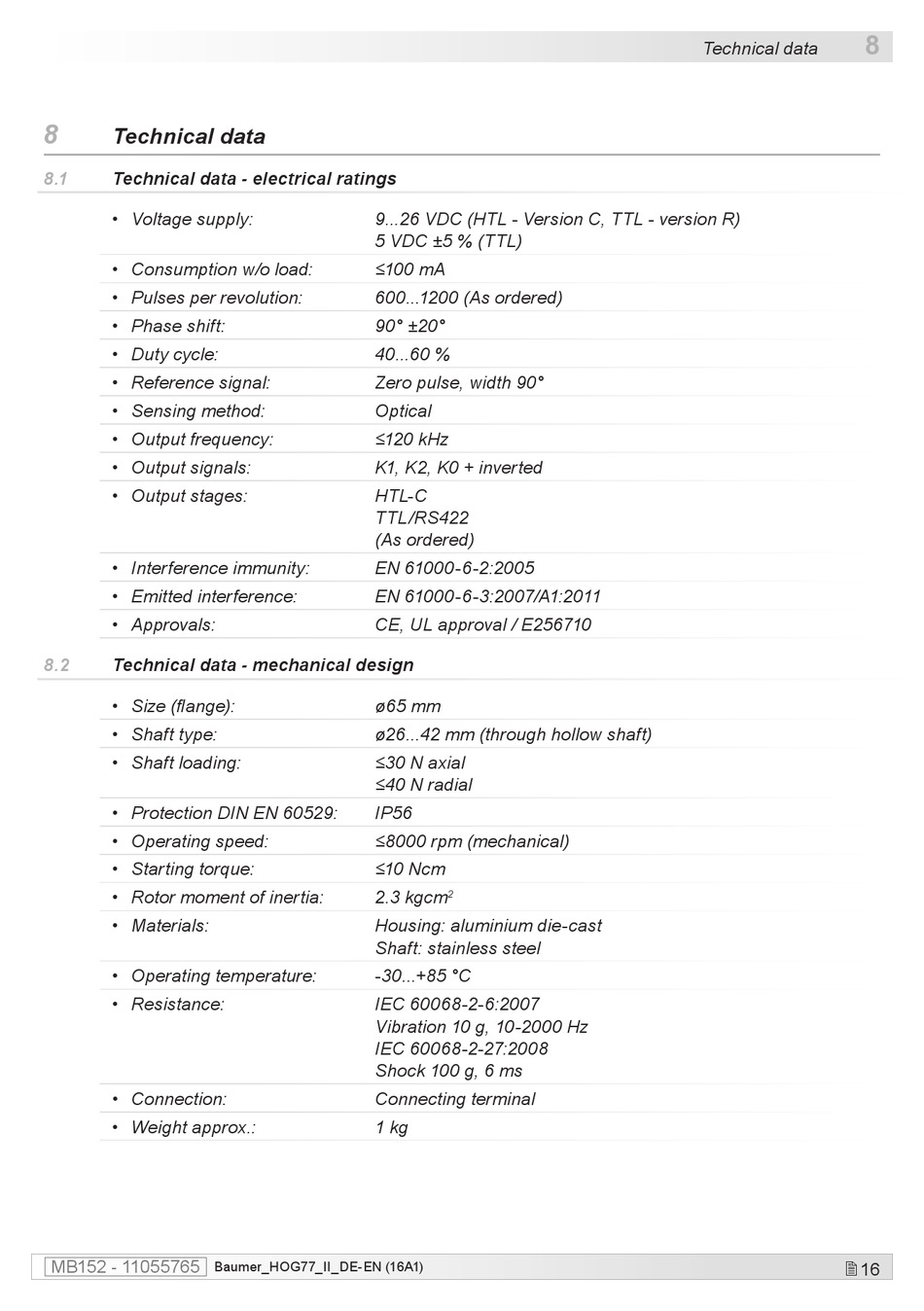

Technical data
8.1
Technical data - electrical ratings
• Voltage supply:
• Consumption w/o load:
• Pulses per revolution:
• Phase shift:
• Duty cycle:
• Reference signal:
• Sensing method:
• Output frequency:
• Output signals:
• Output stages:
• Interference immunity:
• Emitted interference:
• Approvals:
8.2
Technical data - mechanical design
• Size (flange):
• Shaft type:
• Shaft loading:
• Protection DIN EN 60529:
• Operating speed:
• Starting torque:
• Rotor moment of inertia:
• Materials:
• Operating temperature:
• Resistance:
• Connection:
• Weight approx.:
MB152 - 11055765
Baumer_HOG77_II_DE-EN (16A1)
9...26 VDC (HTL - Version C, TTL - version R)
5 VDC ±5 % (TTL)
≤100 mA
600...1200 (As ordered)
90° ±20°
40...60 %
Zero pulse, width 90°
Optical
≤120 kHz
K1, K2, K0 + inverted
HTL-C
TTL/RS422
(As ordered)
EN 61000-6-2:2005
EN 61000-6-3:2007/A1:2011
CE, UL approval / E256710
ø65 mm
ø26...42 mm (through hollow shaft)
≤30 N axial
≤40 N radial
IP56
≤8000 rpm (mechanical)
≤10 Ncm
2.3 kgcm
2
Housing: aluminium die-cast
Shaft: stainless steel
-30...+85 °C
IEC 60068-2-6:2007
Vibration 10 g, 10-2000 Hz
IEC 60068-2-27:2008
Shock 100 g, 6 ms
Connecting terminal
1 kg
8
Technical data
16
