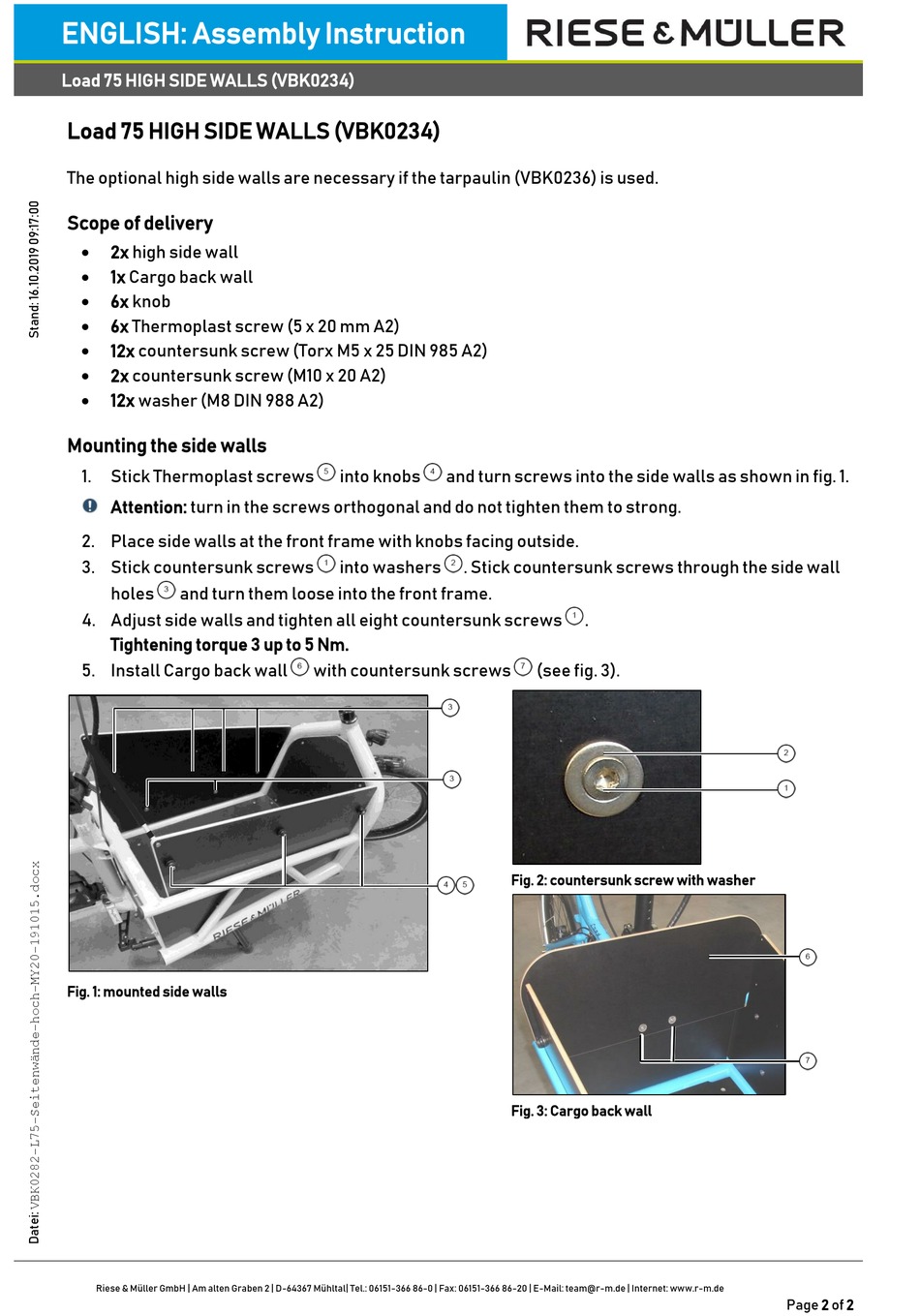

ENGLISH: Assembly Instruction
Load 75 HIGH SIDE WALLS (VBK0234)
Load 75 HIGH SIDE WALLS (VBK0234)
The optional high side walls are necessary if the tarpaulin (VBK0236) is used.
Scope of delivery
2x high side wall
1x Cargo back wall
6x knob
6x Thermoplast screw (5 x 20 mm A2)
12x countersunk screw (Torx M5 x 25 DIN 985 A2)
2x countersunk screw (M10 x 20 A2)
12x washer (M8 DIN 988 A2)
Mounting the side walls
1.
Stick Thermoplast screws
Attention: turn in the screws orthogonal and do not tighten them to strong.
2. Place side walls at the front frame with knobs facing outside.
3. Stick countersunk screws
holes
and turn them loose into the front frame.
4. Adjust side walls and tighten all eight countersunk screws
Tightening torque 3 up to 5 Nm.
5. Install Cargo back wall
Fig. 1: mounted side walls
Riese & Müller GmbH | Am alten Graben 2 | D-64367 Mühltal| Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
into knobs
and turn screws into the side walls as shown in fig. 1.
into washers
. Stick countersunk screws through the side wall
with countersunk screws
.
(see fig. 3).
Fig. 2: countersunk screw with washer
Fig. 3: Cargo back wall
Page 2 of 2
