INSTALLATION
Specification
Controller-limiter combination insertion depths
1
260
1 Limiter sensor
2 Controller sensor

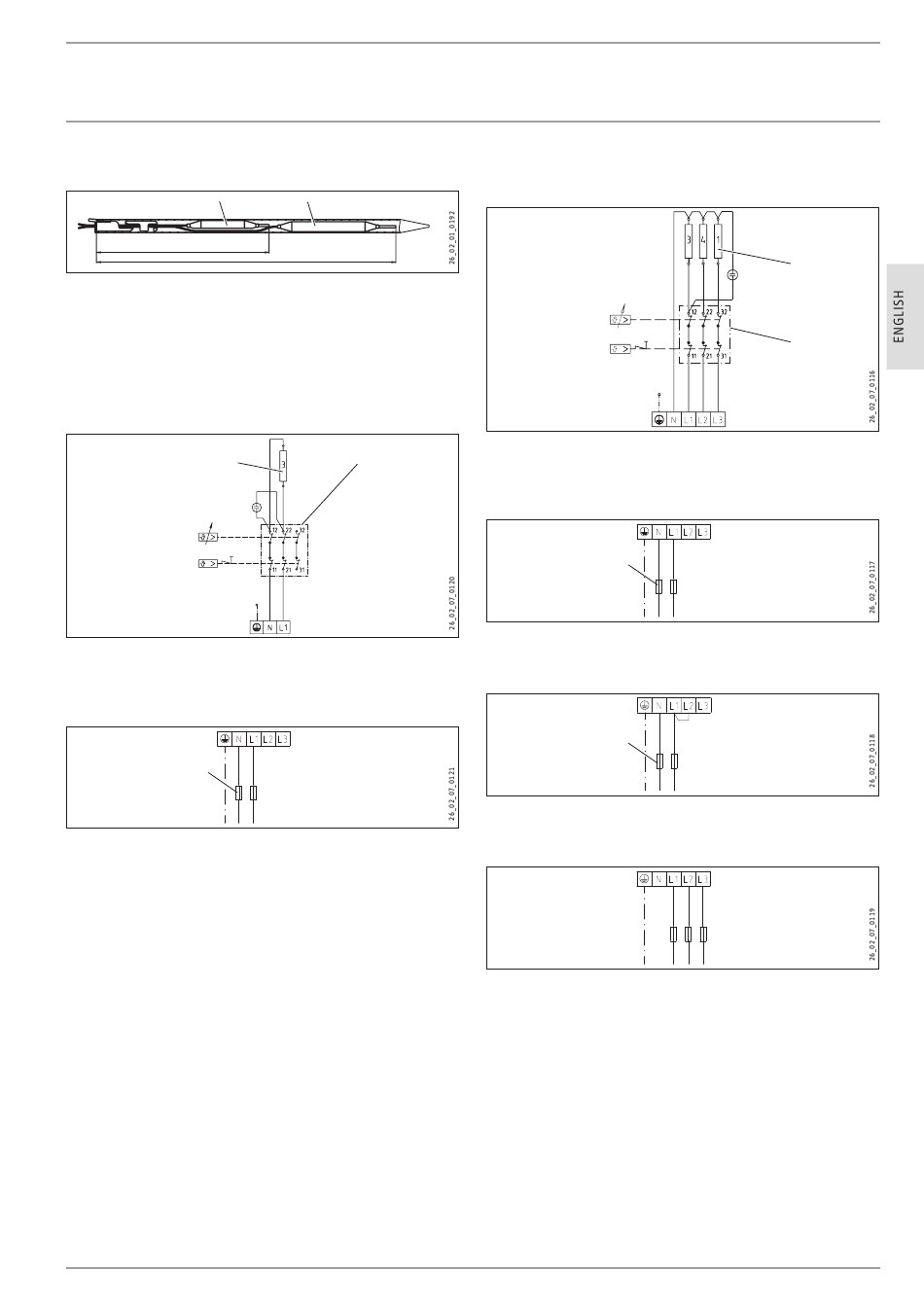

15.2 Wiring diagrams and terminals

15.2.1 SH 50-100 A with 2 kW flanged immersion heater
SH 120-150 A with 3 kW flanged immersion heater
(see type plate)
2
1 Controller/limiter combination
2 Radiator 230 V
1/N/PE ~ 230 V
1
1 Fuse at "N" if specified
www.stiebel-eltron.com
2
380
1
15.2.2 SH 100-150 A with 3.9 kW flanged immersion heater
(see type plate)
1 Radiator 230 V
2 Controller/limiter combination
1.3 kW, 1/N/PE ~ 230 V
1
1 Fuse at "N" if specified
2.6 kW, 1/N/PE ~ 230 V
1
1 Fuse at "N" if specified
3.9 kW, 3/PE ~ 400 V
1
2
SH A | 25
