INSTALLATION

Specification

Replacing the power cable
The power cable must only be replaced by a qualified contractor
with an original spare part. Alternatively, the H05VV-F3x1.0 cable
may be used.
f Route the power cable along the cable guide.
14.6 Positioning the temperature sensor in its
protective pipe
f Insert the temperature sensor into the protective pipe.
f Secure the temperature sensor in place below the earthed
plug.
26 | SNE 5 t ECO

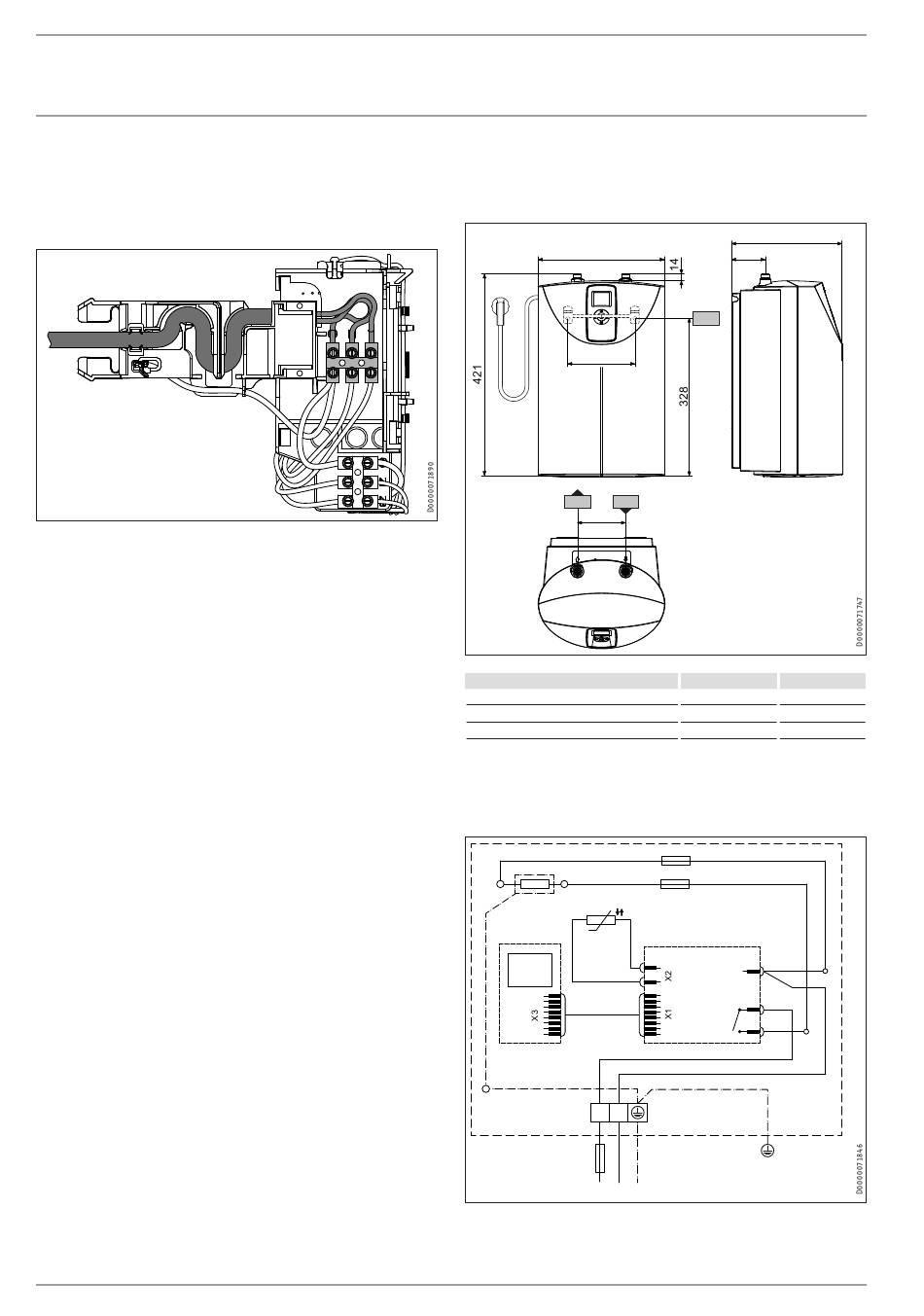

15. Specification

15.1 Dimensions and connections

263
140
c06 c01
100
c01 Cold water inlet
c06 DHW outlet
i13 Wall mounting bracket

15.2 Wiring diagram

1/N/PE ~ 220 - 240 V
ϑ
L N
L N PE
230
70
i13
SNE 5 t ECO
Male thread G 3/8 A
Male thread G 3/8 A
N
Z1
L
L Out
Z3
X4
