SLB - SIMOLINK Board
4.2

Forming the bus cable

Plastic fiber-optic cables are used for connecting the optional board to
Fiber-optic cables
SIMOLINK.
The distance between two nodes is permitted to be up to 40 m. The total length
of the ring bus is permitted to be up to 1000 m.
Connecting the cable Proceed as follows to connect up the fiber-optic cable:

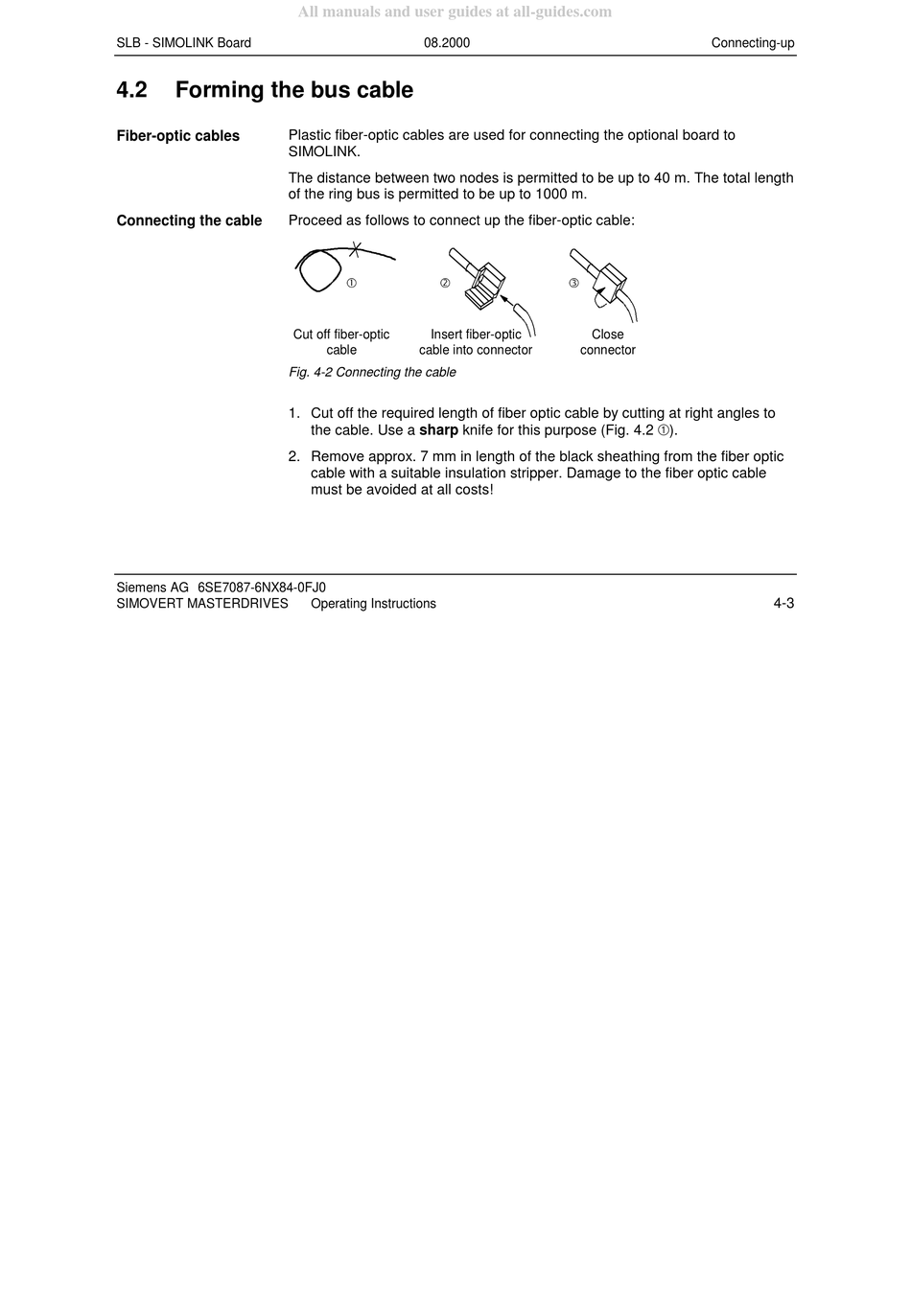

Fig. 4-2 Connecting the cable
1. Cut off the required length of fiber optic cable by cutting at right angles to
2. Remove approx. 7 mm in length of the black sheathing from the fiber optic
Siemens AG 6SE7087-6NX84-0FJ0
SIMOVERT MASTERDRIVES
All manuals and user guides at all-guides.com
08.2000
€ ó
Cut off fiber-optic Insert fiber-optic
cable cable into connector
the cable. Use a sharp knife for this purpose (Fig. 4.2 ¥).
cable with a suitable insulation stripper. Damage to the fiber optic cable
must be avoided at all costs!
Operating Instructions
Connecting-up
ì
Close
connector
4-3
