SLB - SIMOLINK Board
The optional board is provided with three LED displays for supplying
information on the current operating status.

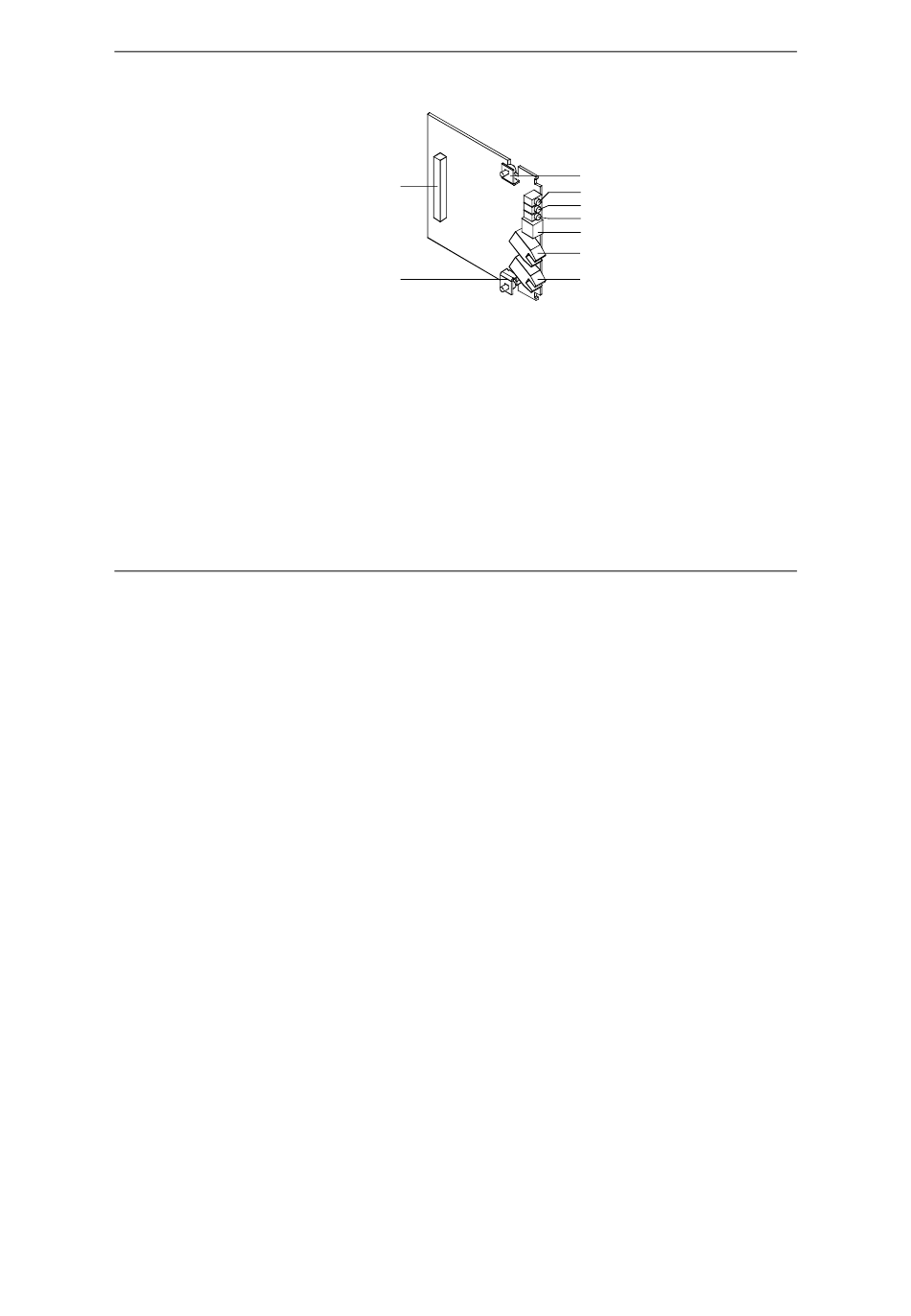

Fig. 1-2 View of the SLB optional board
The SLB optional board links the converters/inverters to SIMOLINK. It can be
Mode of operation
used as the SIMOLINK dispatcher or as a SIMOLINK transceiver. The
functionality can be changed over by means of parameterization.
Data traffic The optional board reads all telegrams on SIMOLINK and stores the selected
telegrams in a receive memory. There is also a separate memory area for the
telegrams which have to be changed or re-generated.
Siemens AG 6SE7087-6NX84-0FJ0
SIMOVERT MASTERDRIVES
All manuals and user guides at all-guides.com
08.2000
System connector
Fixing screw
Operating Instructions
Description
Fixing screw
LED (green)
LED (red)
LED (yellow)
X470 external 24 V voltage supply
SIMOLINK output (light gray)
SIMOLINK input (dark gray)
1-3
