Connecting-up
SIMOLINK is provided with its own input and its own output connection.
SIMOLINK
connection

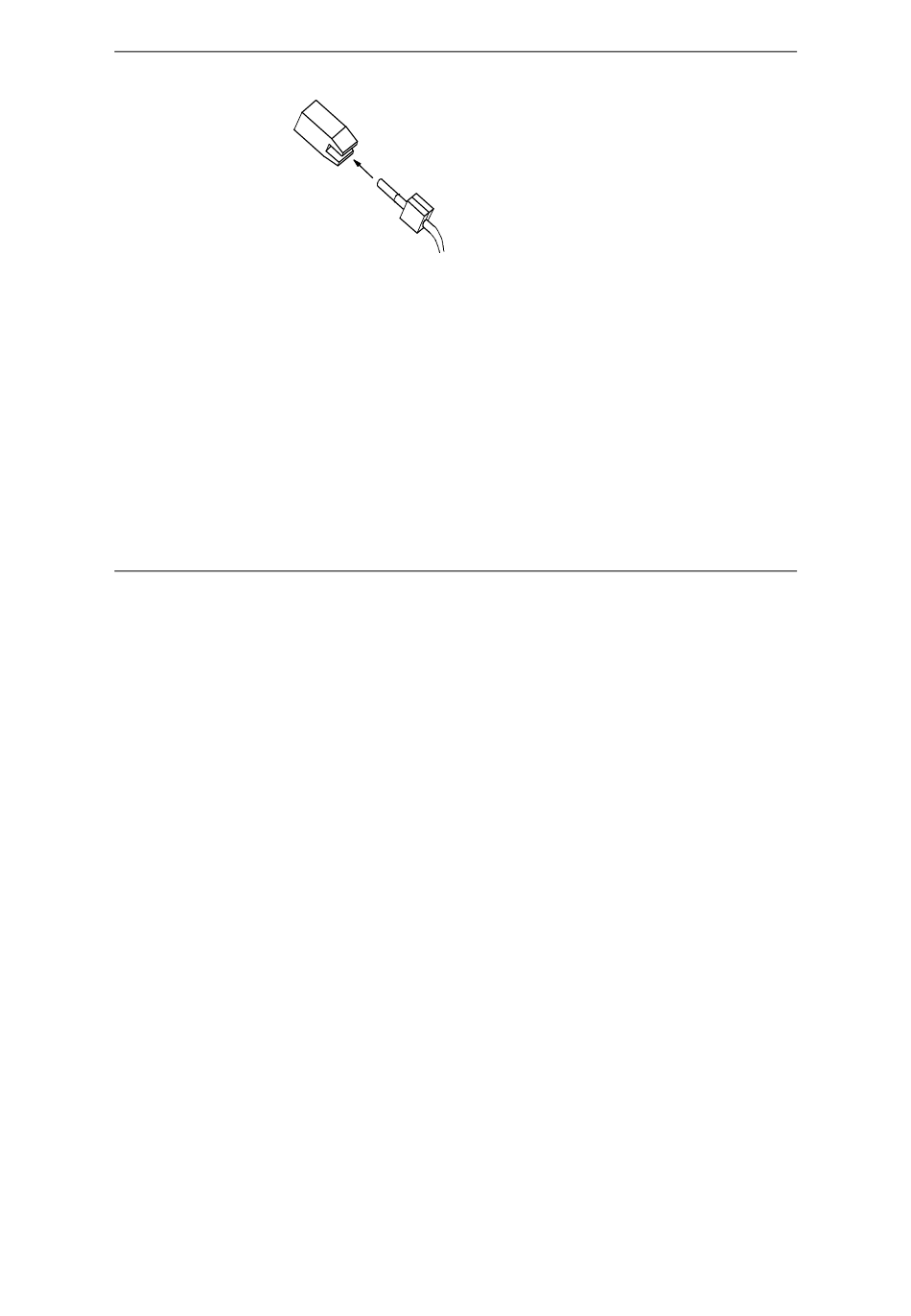

Fig. 4-1 Bus connection
Position and color of
The SIMOLINK input is located in the lower area of the optional board. It is
dark gray.
the connections
The SIMOLINK output is located above the SIMOLINK input. It is light gray.
