6.2 ADJUSTING ROTOR POSITION
Outer
Bearing
Cover

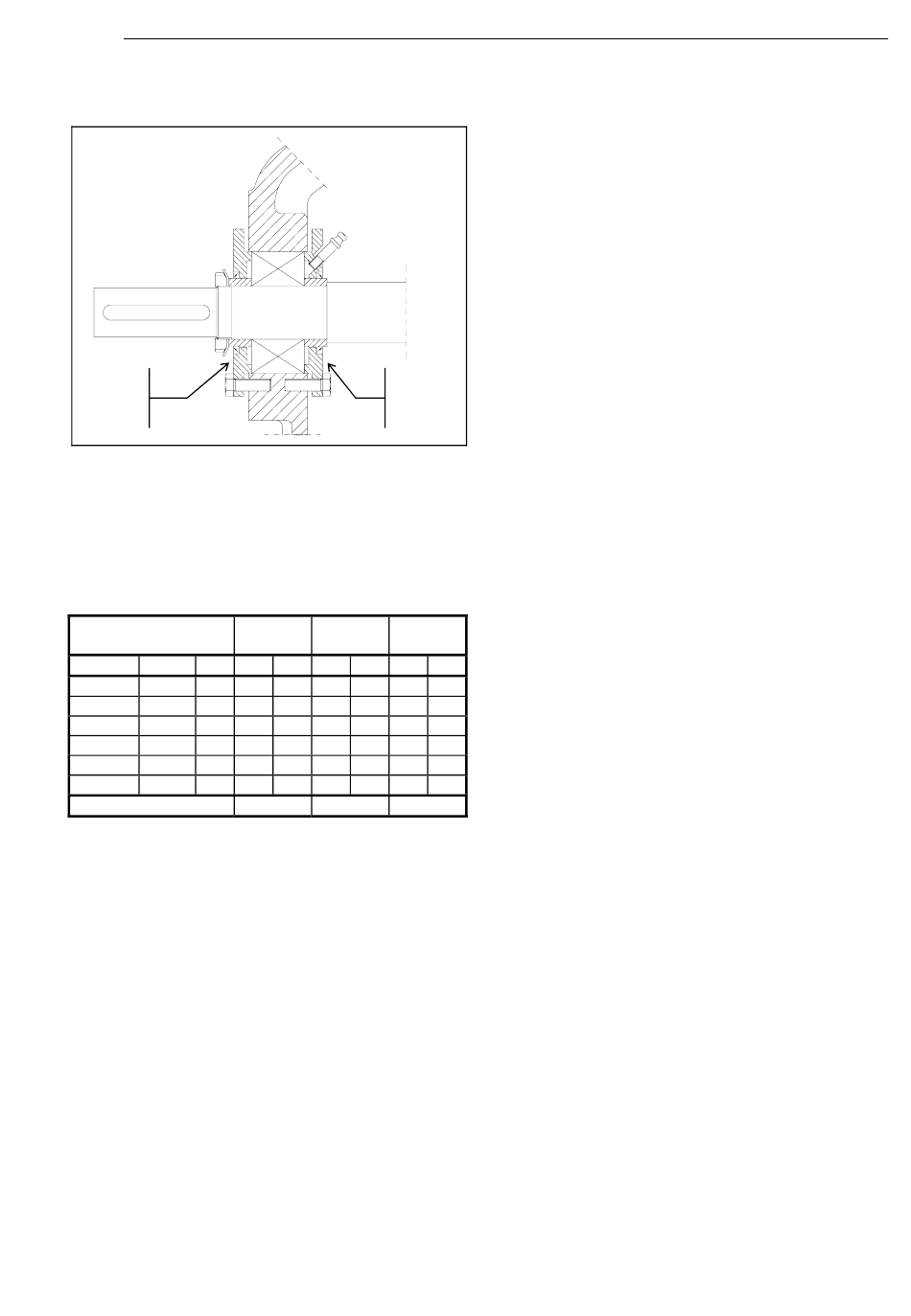

Figure 3 - Bearing Covers
a) Loosen the inner bearing cover.
b) Tighten the outer bearing cover.
c) Loosen the outer bearing cover screws as
shown on following table.
d) Retighten the inner bearing cover.
mm²/s (cSt)
°C
Type Screw Step R
R 35,40 M8 1,25 1/6 0,2 1/3 0,4 1/2 0,6
R 50 M8 1,25 1/3 0,4 1/2 0,6 2/3 0,8
R 65 M8 1,25 1/3 0,4 1/2 0,6 2/3 0,8
R 80 M8 1,25 1/2 0,6 2/3 0,8
R 105 M10 1,5 1/2 0,7 2/3
R 150 M10 1,5 1/2 0,7 2/3
Class
R = Screw rotation
Classes:
A = Version for solvents (S).
B = Standard version.
C = Version for high temperature (H) or viscous
liquids.
