Installation

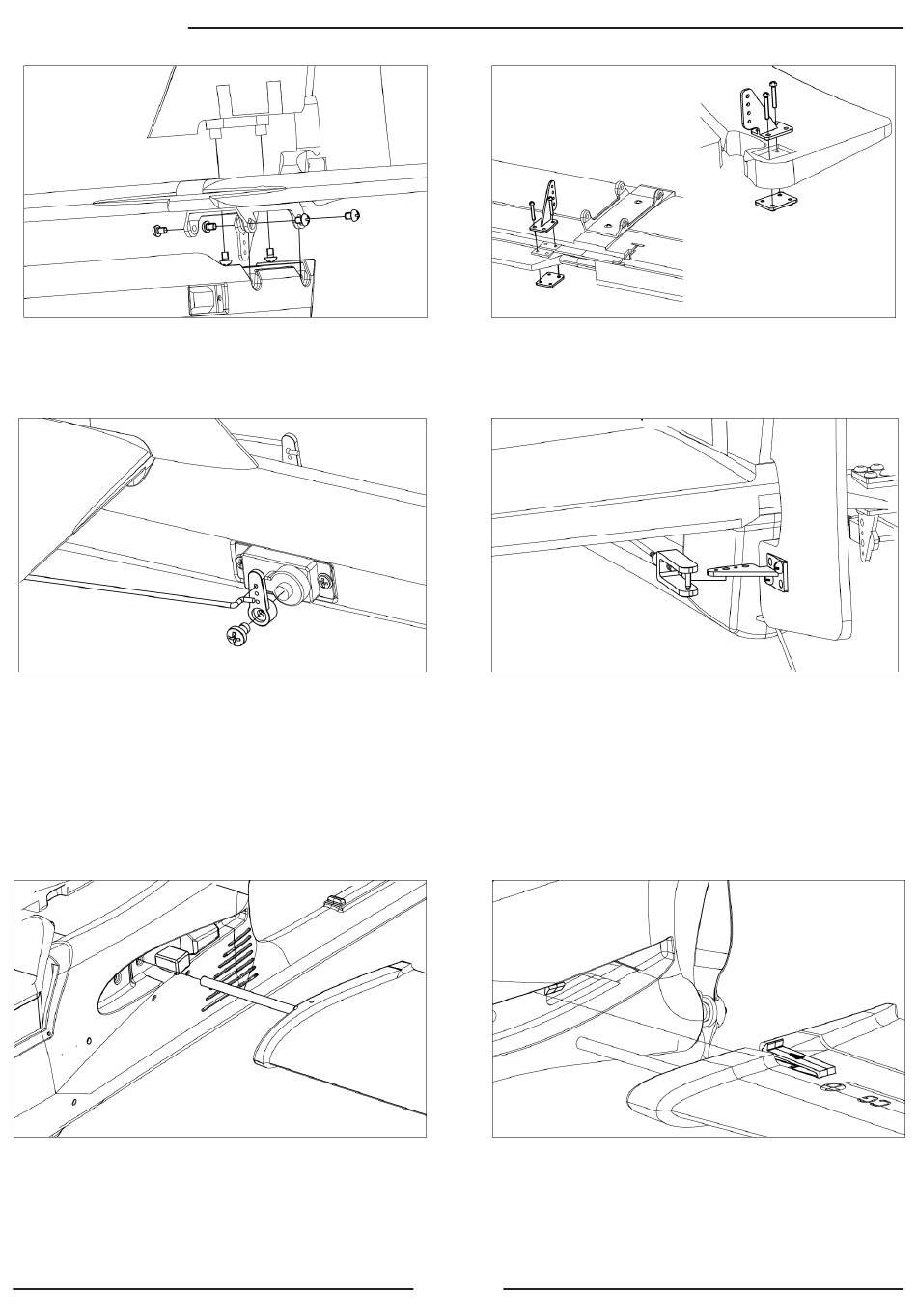

1. Install the vertical tail and horizontal tail to
the fuselage as shown, secured by 6pcs 2.6*8
screws.
3. Install push rod(115mm) to the servo on
each side of fuselage, through the pre-drilled
hole with correct diameter at the servo arm
edge. Secured servo arm to servo with a
PWA2.3*4 screw.
Schritt 5-6 Ranger 1600
5. Slot the wing connecting rod to one wing,
then connect another wing through the hole
of the fuselage.
2.Install hinge control horns to reserved
position on vertical tail and horizontal tail,
secured by 4pcs 2*12 screws.
4. Secure the clevis to the hinge control horn
by the second hole counted from the horn
edge, tightened by the rubber ring.
6. Secure the wings to the fuselage with the
"click & plug" plastic pieces. Make sure you
hear a "click" sound to secure well.
16 / 28
