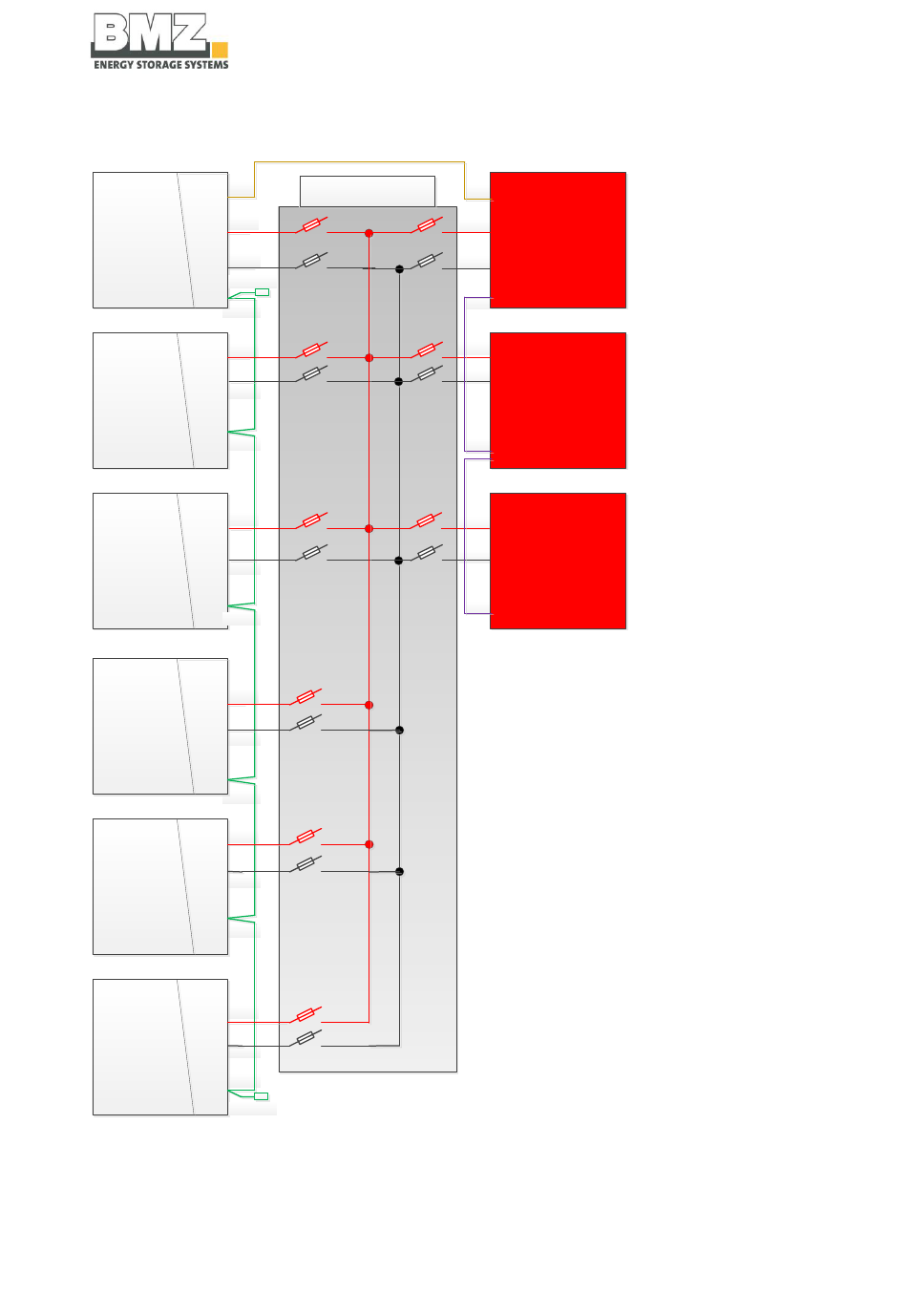

4.8.7 3-phasiger Betrieb des SMA Sunny Island an 6 Stück ESS Batterie
BMZ ESS Battery 1
CAN
PLUS
MINUS
RS485 terminating
battery mode „MASTER"
resistor
Device adress „1"
Intern
BMZ ESS Battery 2
PLUS
MINUS
battery mode „SLAVE"
Intern
Device adress „2"
BMZ ESS Battery 3
PLUS
MINUS
battery mode „SLAVE"
Device adress „3"
Intern
BMZ ESS Battery 4
PLUS
MINUS
battery mode „SLAVE"
Device adress „4"
Intern
BMZ ESS Battery 5
PLUS
MINUS
battery mode „SLAVE"
Intern
Device adress „5"
BMZ ESS Battery 6
PLUS
MINUS
Intern
battery mode „SLAVE"
Device adress „6"
RS485 terminating
resistor
Abbildung 4-24: 3 Phasen Betrieb an 6 Stück ESS Batterie
