4.8.6 3-phasiger Betrieb des SMA Sunny Island an 5 Stück ESS Batterie
BMZ ESS Battery 1
PLUS
MINUS
battery mode „MASTER"
Device adress „1"
Intern
BMZ ESS Battery 2
PLUS
MINUS
battery mode „SLAVE"
Intern
Device adress „2"
BMZ ESS Battery 3
PLUS
MINUS
battery mode „SLAVE"
Device adress „3"
Intern
BMZ ESS Battery 4
PLUS
MINUS
battery mode „SLAVE"
Device adress „4"
Intern
BMZ ESS Battery 5
PLUS
MINUS
battery mode „SLAVE"
Intern
Device adress „5"

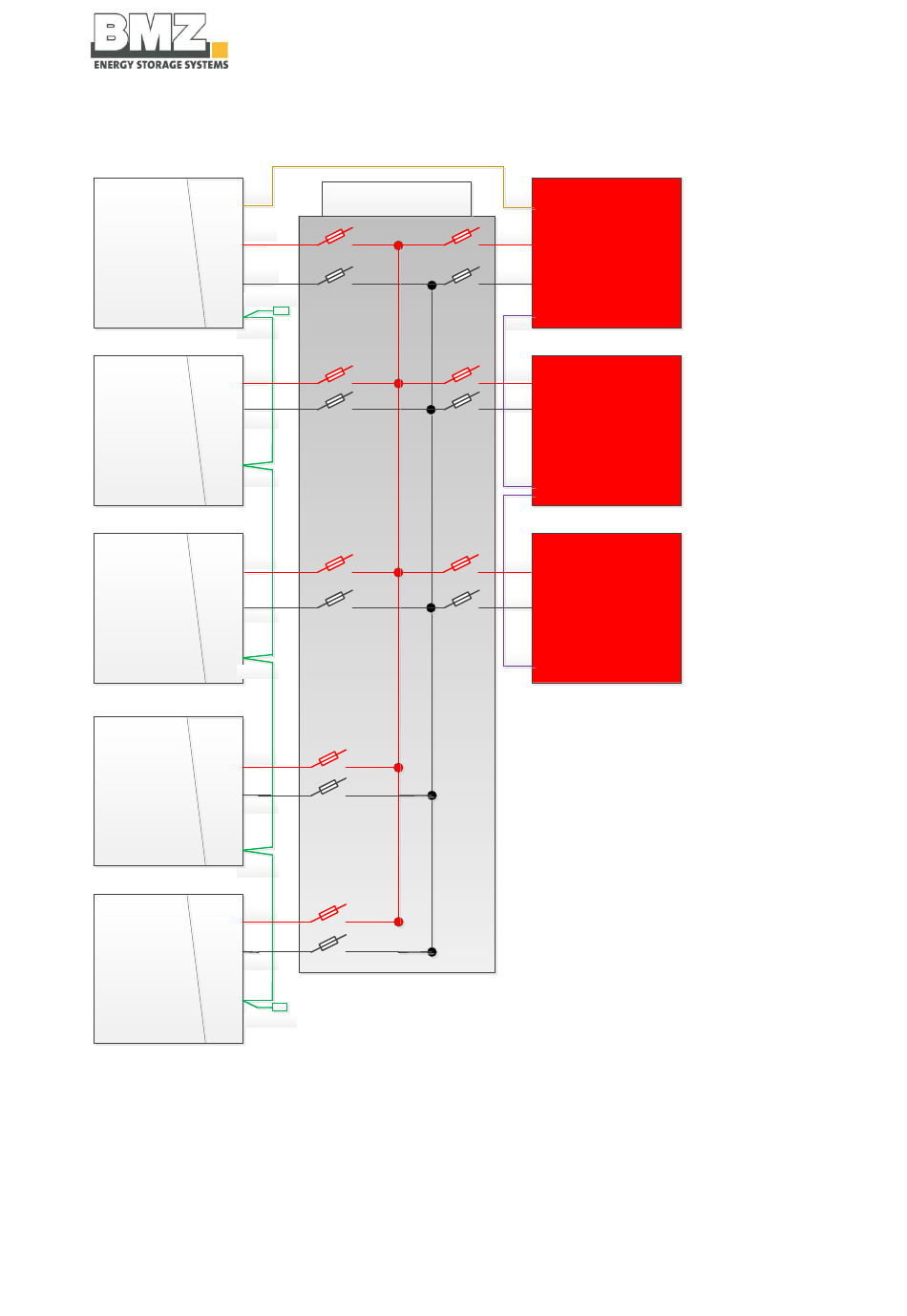

Abbildung 4-23: 3 Phasen Betrieb an 5 Stück ESS Batterie
Originalbetriebsanleitung ESS 7.0 | 9.00 | X | Z
BAT BREAKER 6er
CAN
RS485 terminating
resistor
RS485 terminating
resistor
Aufstellung, Montage und Erstinbetriebnahme
CAN
SMA Sunny Island
PLUS
Inverter 1
Inverter „MASTER"
MINUS
SYNC
PLUS
MINUS
SMA Sunny Island
Inverter 2
SYNC
PLUS
SMA Sunny Island
MINUS
Inverter 3
SYNC
Dokument #30085
